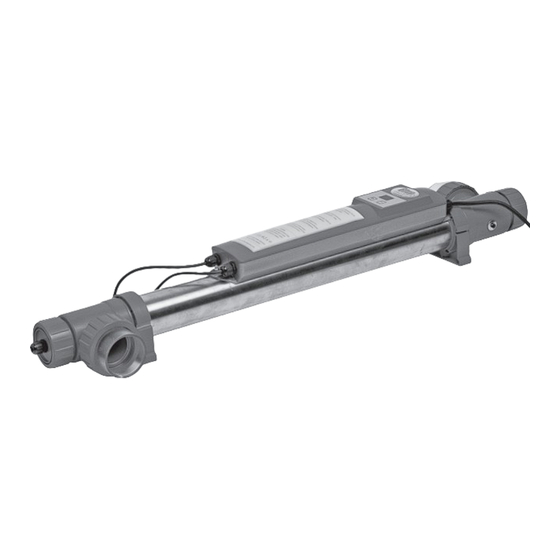

Blue Lagoon UV-C Ionizer
20.000 - 40.000 - 75.000
The easy and friendly way to disinfect your pool
0901_014_ManualBL_UVC_Ionizer.indd 1
20-01-2009 16:13:16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 20.000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Blue Lagoon 20.000

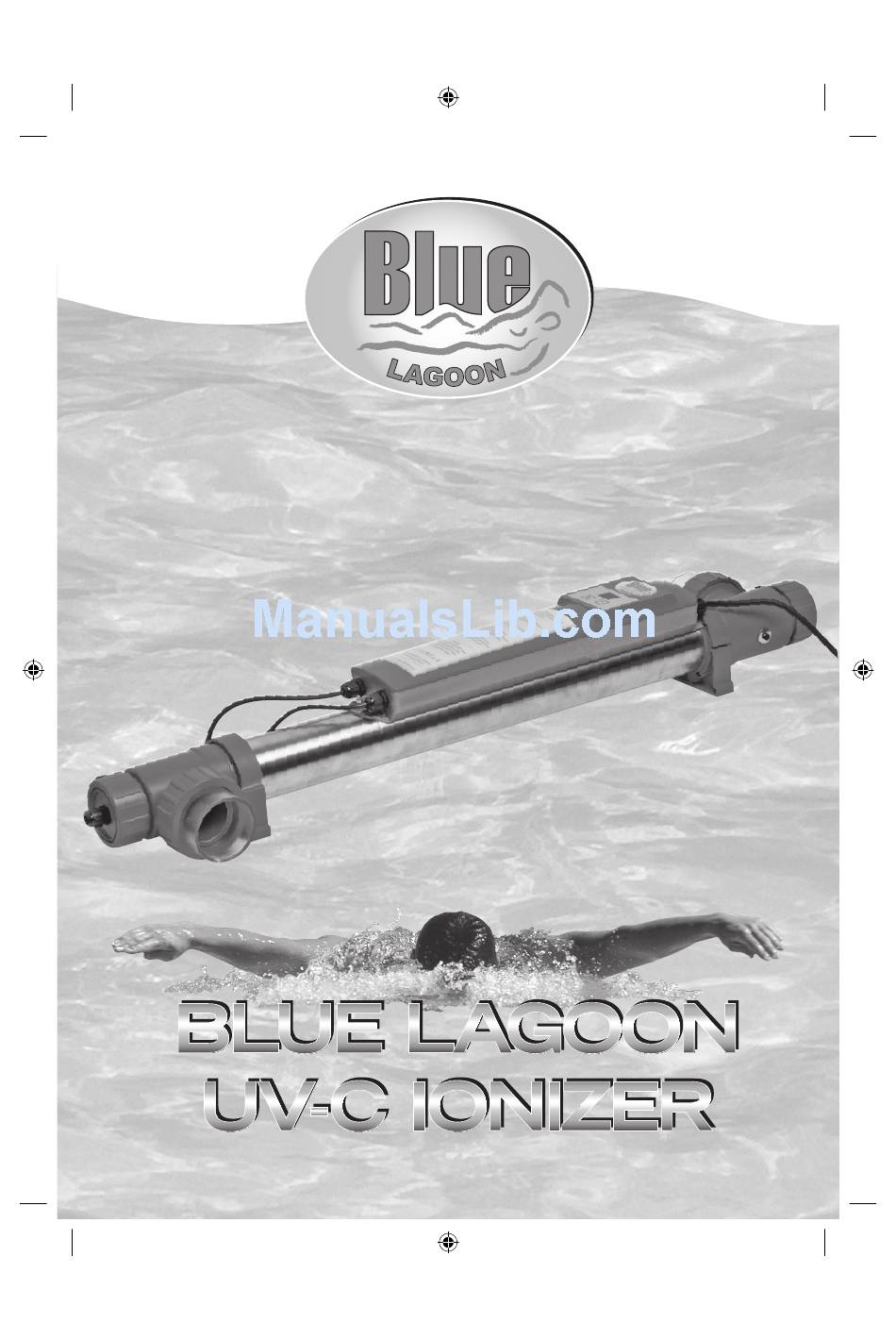

  • Page 1 Blue Lagoon UV-C Ionizer 20.000 - 40.000 - 75.000 The easy and friendly way to disinfect your pool 0901_014_ManualBL_UVC_Ionizer.indd 1 20-01-2009 16:13:16...
  • Page 2 0901_014_ManualBL_UVC_Ionizer.indd 2 20-01-2009 16:13:17...
  • Page 3 0901_014_ManualBL_UVC_Ionizer.indd 3 20-01-2009 16:13:17...
  • Page 4 Blue Lagoon UV-C Ionizer is placed on the piping system after the swimming pool lter. The swimming pool water then ows through the housing of the Blue Lagoon UV-C Ionizer. A UV-C lamp and a copper unit, or ionizer, are positioned within the housing, and the copper unit discharges a minimal amount of copper into the water owing through the housing.
  • Page 5 The UV-C lamp and the copper unit can be used over 2 swimming seasons if used 12 hours a day for 6 months a year. The UV-C lamp and the copper unit must be replaced if the gure “88” starts to blink on the Blue Lagoon UV-C Ionizer display. A replacement set can be ordered from the distributor from whom you have purchased the original device.
  • Page 6 (+/- 1 metre) to remove the lamp (K) / quartz glass (M) for replacement and/or to carry out maintenance. 4 Carefully slide the Blue Lagoon UV-C lamp into the quartz glass (M). Fit the lamp (K) into the lamp holder (L) and tighten the nut (N) onto the unit by hand.
  • Page 7 In case of doubt with regard to the connection, consult a recognised tter. The Blue Lagoon UV-C Ionizer is available in the following types: Blue Lagoon UV-C Ionizer 20,000 litres / 30 Watt (230V; 50/60Hz) article number: B200001 Blue Lagoon UV-C Ionizer 40,000 litres / 40 Watt (230V; 50/60Hz) article number: B200002 Blue Lagoon UV-C Ionizer 70,000 litres / 75 Watt (230V;...

This manual is also suitable for:

40.00075.000
