Vetlab Premiere 500
BIOLOGICAL BINOCULAR
MICROSCOPE
USER MANUAL
To obtain the best results from your microscope, please read this manual before using
WARNING: To prevent fire or shock hazard, do not expose this unit to rain or moisture.
CAUTION:
No user-serviceable parts inside. Refer servicing to qualified service personnel.
®
Premiere
trademark reg. No. 1713212 USA
Vetlab Supplies Ltd Unit 13 Broomers Hill Park Broomers Hill Lane Pulborough RH20 2RY
Telephone 01798 874567 Fax 01798 874787 Email
info@vetlabsupplies.co.uk
www.vetlabsupplies.co.uk
Advertisement
Related Manuals for premiere Vetlab Premiere 500
Summary of Contents for premiere Vetlab Premiere 500
-
Page 1: User Manual

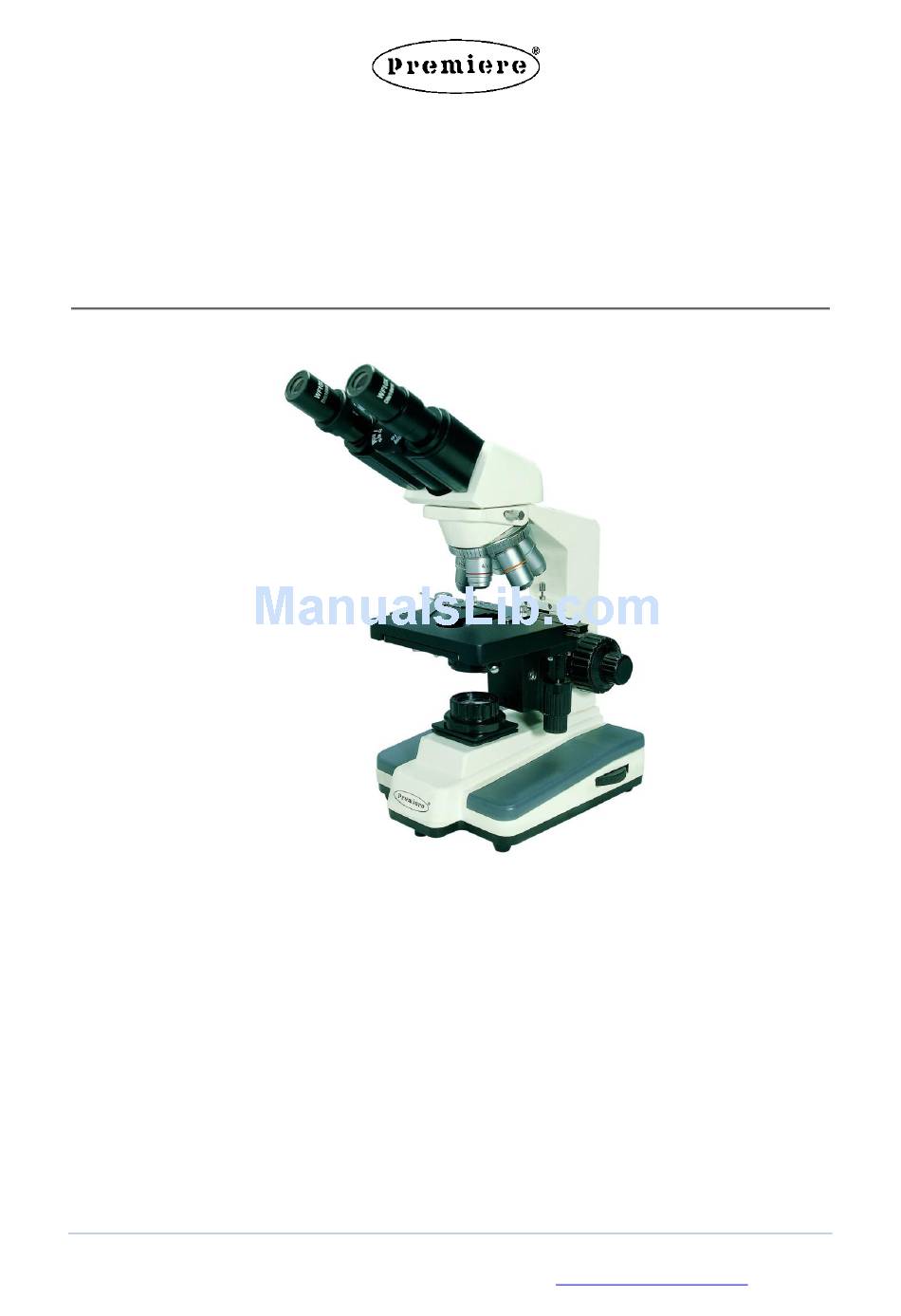

Vetlab Premiere 500 BIOLOGICAL BINOCULAR MICROSCOPE USER MANUAL To obtain the best results from your microscope, please read this manual before using WARNING: To prevent fire or shock hazard, do not expose this unit to rain or moisture. CAUTION: No user-serviceable parts inside. Refer servicing to qualified service personnel. -
Page 2: Specifications
SPECIFICATIONS Objectives: Achromatic objectives. Numerical Working Objective Aperture Distance (N.A.) 0.10 37.5mm 0.25 7.31mm 0.65 0.63mm 0.85 0.28mm 100x (oil) 1.25 0.19mm Total magnifying powers: Objective Eyepiece & Auxiliary Lens 100x 10x wide 100x 400x 600x 1000x field Stage Size: 140x135mm X-direction movement range: 80 mm... - Page 3 APPLICATION The Vetlab Premiere 500 Microscope is one of the most modern designed instruments for clinical examination and teaching demonstrations in laboratories, colleges and medical fields. It is also an ideal instrument for biological, bacteriological, pathological and pharmaceutical research. These microscopes are...
- Page 4 Vetlab Premiere 500 STRUCTURE The Structure of Binocular Microscope Eyepiece Graduated Diopter Ring Nosepiece with Objectives Objective Stage Adjustable Locking Nut Tension Control for Focusing Knob Coarse Focus Adjustment Knob Fine Focus Adjustment Knob Mechanical Stage X-Y Adjustment Knob 10. Condenser with Iris Diaphragm and Filter Holder 11.
- Page 5 OPERATING INSTRUCTIONS Set light dimmer control to lowest intensity. Switch on the power at the mains and then at the back of the microscope. Begin by placing a microscope slide containing a specimen to be observed on the object stage and clamp it carefully with the movable spring clip.
-
Page 6: Maintenance
(left hand side under stage) to effectively move the light beam closer to (up) or away from (down) the specimen under observation. Vetlab Premiere 500 is also equipped with a field diaphragm installed over the collector lens for Kohler illumination. Open or close this diaphragm as desired by rotating the outer ring to control the amount of light aimed at the condenser assembly. - Page 7 IMPORTANT: Use of Immersion Oil The only objective requiring oil is the x100 objective. However, once oil is used it must be wiped off the objective (and possibly the slide) with a lens tissue otherwise it can ruin the lens. The use of oil also can lead to contamination of the x40 objective if it is not cleaned off immediately.
- Page 8 It does not cover damage resulting from abuse or misuse, repairs or alterations performed by other than authorised repair technicians, or damage occurring in transit. If you have any problems with your Vetlab Premiere 500 microscope during the one year warranty period, please contact: Vetlab Supplies Ltd.
