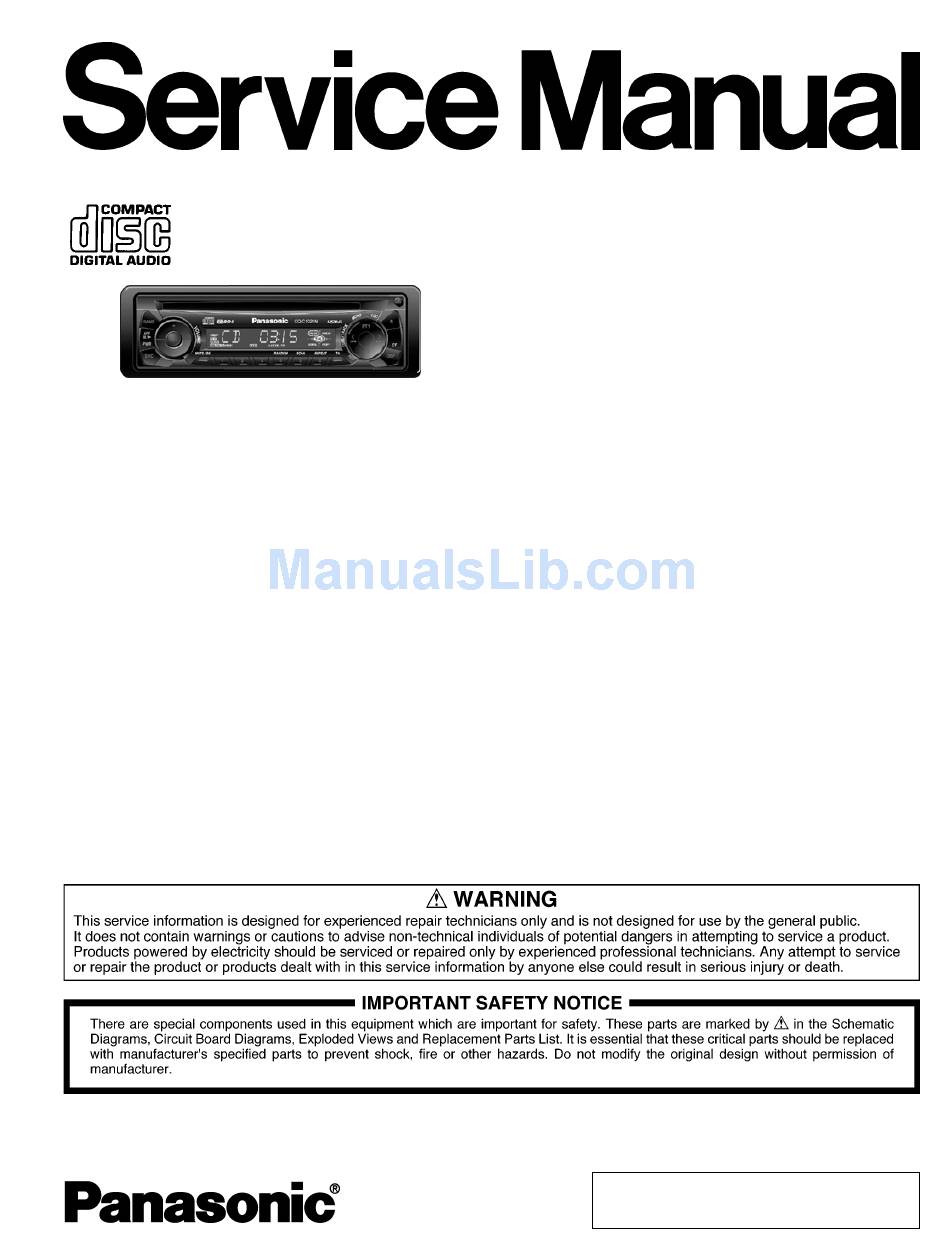

Panasonic CQ-C1013H Service Manual

Specifications *

General
Power Supply
Tone Controls
Current Consumption
Maximum Power Output
Suitable Speaker Impedance
FM Stereo Radio
Frequency Range
Usable Sensitivity
AM Radio
Frequency Range
DC 12V (11V - 16V),
Test Voltage 14.4V
Negative Ground
Bass ; ±12dB at 100Hz
Treble ; ±12dB at 10kHz
Less than 2.2A (CD play mode,
0.5W×4ch)
45W×4ch (at 1kHz, Vol. Max.)
4-8Ω
87.5 - 108MHz
11.0dBf (1.25µV, 75Ω)
531 - 1,602kHz
AUTOMOTIVE AFTERMARKET
CQ-C1013H
Removable Front Panel CD Player /
Receiver
Usable Sensitivity
CD Player
Sampling Frequency
Pick-Up Type
Light Source
Wavelength
Frequency Response
Signal to Noise Ratio
Dimensions**
Weight**
* Specifications and the design are subject to possible modification
without notice due to improvements.
** Dimensions and Weight shown are approximate.
© 2005 Matsushita Electric Industrial Co., Ltd. All
rights reserved.
distribution is a violation of law.
Order No. ACED051219C3
28dB/µV (25µV, S/N 20dB)
8 times oversampling
Astigma 3-beam
Semiconductor Laser
780nm
20Hz to 20,000Hz (±1dB)
96dB
178×50×155mm
1.4kg
Unauthorized copying and
