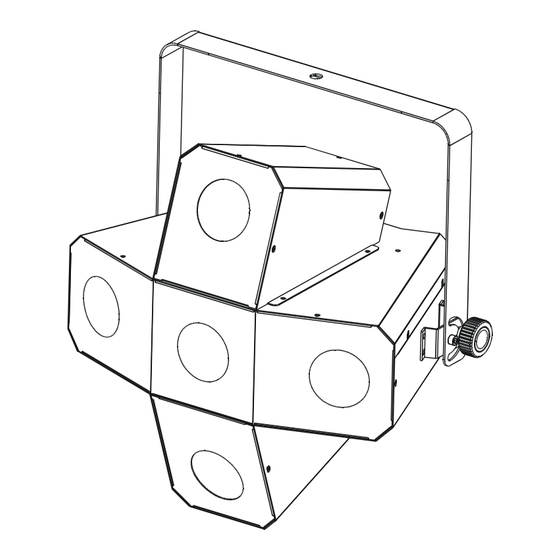

- Page 1 CARNIVAL LED-7875 Широкий ассортимент ACME на www.maxlight.ru User Manual Innovation, Quality, Performance Please read the instructions carefully before use...
- Page 2 TABLE OF CONTENTS 1. Safety Instructions 2. Technical Specifications 3. How To Set The Fixture 4. How To Control The Fixture 5. DMX 512 Configuration 6. DMX 512 Connections 7. Troubleshooting 8. Fixture Cleaning...
- Page 3 1. Safety Introductions Please read the instructions carefully which includes important information about the installation, operation and maintenance. EC - Declaration of Conformity WARNING Please keep this User Manual for future consultation. If you sell the fixture to another We declare that our products (lighting equipments) comply with the following user, be sure that they also receive this instruction booklet.
- Page 4 8. Fixture Cleaning 2. Technical Specifications The cleaning of internal must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or 5 LED clusters, each equips with 64 high power LEDs particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s optics.
- Page 5 3. How To Set The Fixture 7. Troubleshooting 3.1 Control Panel Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The fixture does not work, no light 1. Check the connection of power and main fuse. 2.
- Page 6 6. DMX512 Connections Only for remote control: By connect to the 1/4’’ microphone jack to control the unit for The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels. Stand by, Function and Mode function. DMX output: For DMX512 link, use 3-pin XLR plug cable to link the next unit.
- Page 7 button and the display will blink. Use DOWN and UP button to change the DMX512 address. Once the address has been selected, press and keep ENTER button pressed up to when the display stops blinking or storing automatically 8 seconds later. To go back to the functions without any change press the MENU button again.
- Page 8 4.1 Master/Slave Built In Preprogrammed Function DMX 512 Address Setting By linking the units in master/slave connection, the first unit will control the other units to give an automatic, sound activated, synchronized light show. This function is good when you Press the MENU button up to when the is shown on the display.
- Page 9 Sound mode Display Inverse Press the MENU button up to when the is shown on the display. Pressing ENTER Press MENU button until is blinking on the display. Use DOWN and UP button to select (normal) or (inverse), press ENTER button to setup. Back to the button, Use DOWN and UP button to select the (sound on) or (sound off).
