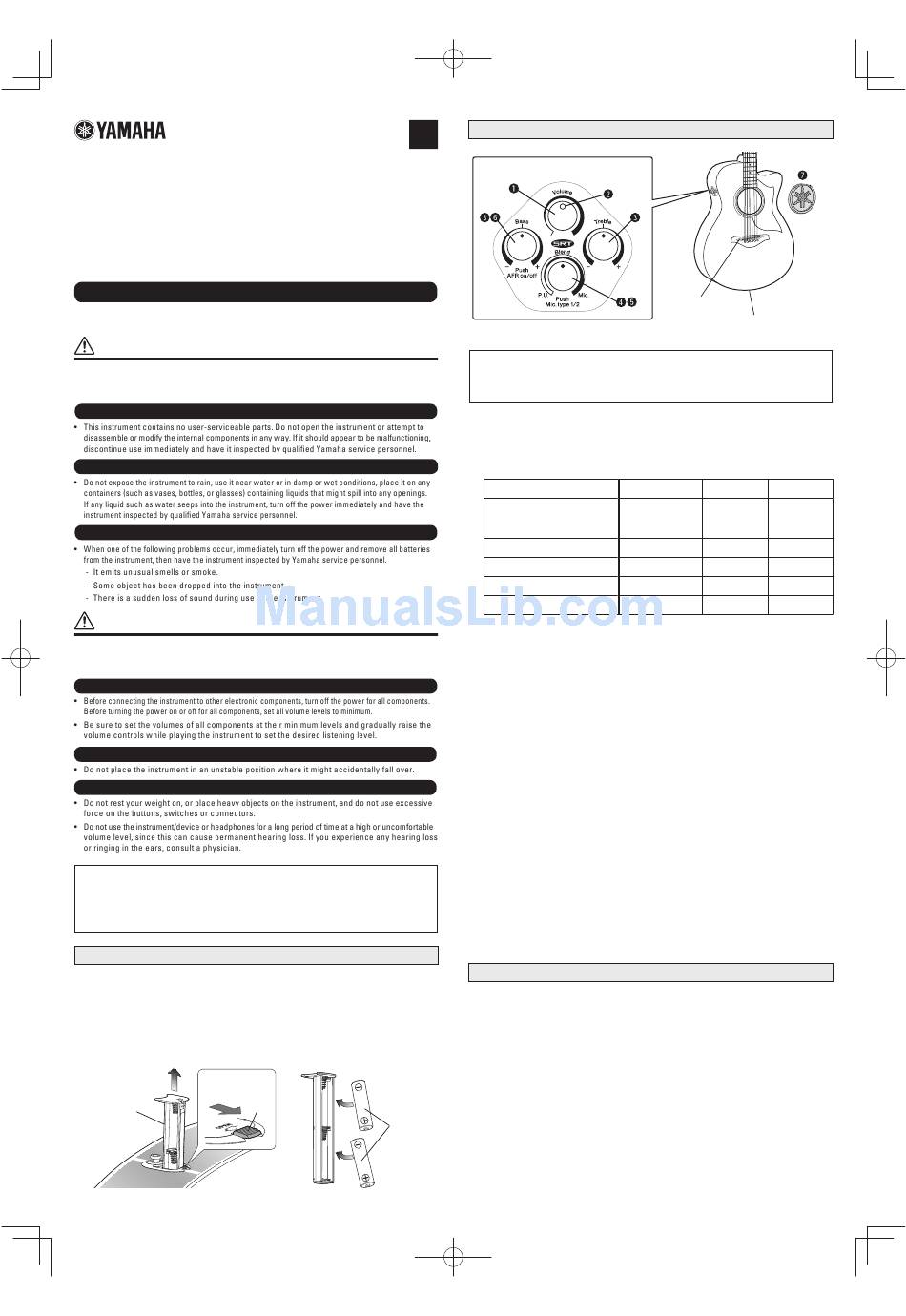

Yamaha SYSTEM71 Owner's Manual

Electric Acoustic Guitar
SYSTEM71
Owner's Manual
Thank you for choosing a Yamaha electric-acoustic guitar.
In order to make the most of the advanced features and performance provided by your guitar,
please read this manual carefully before using the instrument.
Note that this manual covers only the electronic parts of this product. For information on the
other non-electronic parts, refer to the separate Acoustic Guitar Owner's Manual.
PRECAUTIONS
PLEASE READ CAREFULLY BEFORE PROCEEDING
Please keep this manual in a safe and handy place for future reference.
WARNING
Always follow the basic precautions listed below to avoid the possibility of serious injury
or even death from electrical shock, short-circuiting, damages, fire or other hazards. These
precautions include, but are not limited to, the following:
Do not open
Water warning
If you notice any abnormality
CAUTION
Always follow the basic precautions listed below to avoid the possibility of physical injury to
you or others, or damage to the instrument or other property. These precautions include, but
are not limited to, the following:
Connection
Location
Handling caution
* Yamaha cannot be held responsible for damage caused by improper use or modifications
to the instrument, or data that is lost or destroyed.
* Information on the battery can be found in the section at the end of this sheet.
* Please read the instruction manual for the external audio device such as a guitar amplifier,
etc., prior to use.
Replacing the Batteries
q Slide the tab on the endpin section in the direction indicated by the arrow in the diagram
below to release the lock, then pull out the battery holder.
w Insert two AA batteries making sure that the battery poles are properly aligned with the
polarity markings on the battery holder.
e Slide the battery holder back into the endpin section until it locks.
* When using nickel metal-hydride batteries, take care not to damage the battery
casing or poles when installing and removing the batteries.
q
Release the lock
Battery Holder
System71_ZW19150_R0_0706.indd 2
EN
Tab
AA battery
x2
Nomenclature / Controls
Control Section
The built-in preamplifier is automatically turned ON when a guitar
cable is connected to the output jack. Always set the volume to its
minimum level when connecting or disconnecting the cable.
q Volume Control
Controls the volume.
w Status Display 3 Color LED
Indicates status of the AFR function, SRT type, remaining battery power, etc.
Condition/Event
Power ON according to the
Mic. type
AFR Active
Depleted Battery
SRT Mic. type 1 Single flash
SRT Mic. type 2 Double flash
e 2-Band Equalizer (Bass, Treble)
Level adjustments for the low frequency (Bass) and high frequency (Treble) ranges.
r Mic Type Switch (Mic. type 1/2)
Selects the simulated mic type used in the SRT function. Each press of the switch (Blend
knob) toggles between Mic. type 1: Condenser and Mic. type 2: Ribbon.
t
Blend Control
Controls the mix level of signals received from the pickup and the simulated mic. Rotate fully
to the left for 100% pickup signal and fully to the right for 100% simulated mic signal.
y
AFR (Auto Feedback Reduction) Switch
If you experience problem feedback while performing, follow the AFR setting
instructions below to effectively control the feedback.
1. When feedback occurs, press the AFR switch (Bass control knob) after all sound other than
the feedback has been muted.
2. The system automatically detects the frequency causing the feedback and applies a –12dB
notch filter.
* The system may not be able to detect the problem frequency if two or more sounds
are present at the same time.
3. Pressing this switch when the AFR system is active ( w LED is lit green) switches the AFR
function OFF. Alternatively, switch off the power (unplug cable from output jack) to cancel all
notch filters.
u
Sound Hole Cover (included)
Inserting the sound hole cover into the sound hole effectively reduces feedback.
Specifications
● System: ● Pickup:
System71 Bar Sensor (Piezo type)
Volume, 2-Band EQ (Bass, Treble), Blend, Mic. type 1/2, AFR
● Output Impedance:
end pin/power switch
● Battery Life:
nickel-metal hydride) Approx. 33 hours (4.5 hours after battery warning; when
using alkaline batteries.)
* May differ depending on operating conditions.
Neck adjustment hex-wrench x1, Sound hole cover x1
* For best performance, we recommend the use of alkaline or nickel-metal hydride
batteries. When using nickel-metal hydride batteries, please follow the instructions in
the manual provided with the batteries.
7KH FRQWHQWV RI WKLV PDQXDO DSSO\ WR WKH ODWHVW VSHFL¿FDWLRQV DV RI WKH SXEOLVKLQJ GDWH
7R REWDLQ WKH ODWHVW PDQXDO DFFHVV WKH <DPDKD ZHEVLWH WKHQ GRZQORDG WKH PDQXDO ¿OH
Pickup Section
Output Jack (with power switch function)/
Battery Holder
Amber Green Red
Flashes
ー ー
Lit
ー ー
Flashing
ー ー
ー ー
ー ー
● Preamplifier Controls:
● Output Jack:
Combination
● Batteries:
1kΩ AA battery x2 (alkaline or
● Accessories:
