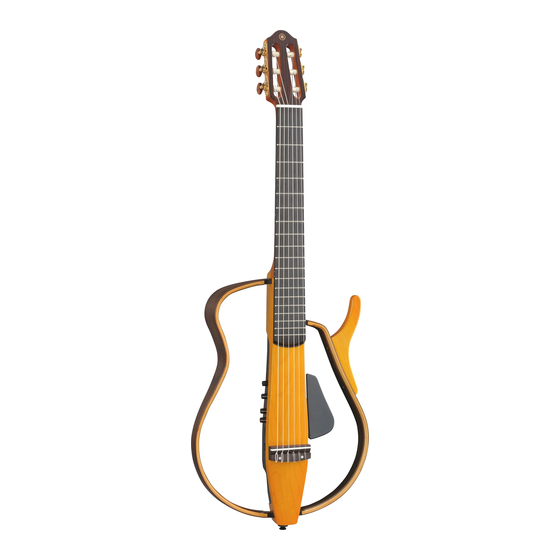

SLG110N/130NW
Thank you for purchasing the Yamaha Silent Guitar. In order to obtain the
maximum performance and enjoyment from your Silent Guitar, we urge you
to read this Owner's Manual thoroughly before using the instrument. Please
keep this Owner's Manual in a safe place for later reference.
Precautions. . ................................................................... 3
Main.Body/Accessories................................................. 4
Nomenclature................................................................. 5
Attaching.the.Frame. . ..................................................... 7
■ About the Strap Pin ...................................................................... 7
Changing.Strings........................................................... 8
Power.Supply. . ................................................................ 9
■ Supplying AC Power ..................................................................... 9
■ Installing the Battery ..................................................................... 9
Connecting.External.Devices. . .................................... 10
■ AUX IN jack ................................................................................ 11
Using.the.Controls....................................................... 12
■ Using the LINE OUT jack ........................................................... 12
■ Using the stereo earphones ....................................................... 12
Using.the.Soft.Case..................................................... 13
Specifications............................................................... 14
Owner's.Manual
Contents
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Silent SLG130NW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Yamaha Silent SLG130NW

Summary of Contents for Yamaha Silent SLG130NW

  • Page 1: Table Of Contents

    SLG110N/130NW Owner’s.Manual Thank you for purchasing the Yamaha Silent Guitar. In order to obtain the maximum performance and enjoyment from your Silent Guitar, we urge you to read this Owner’s Manual thoroughly before using the instrument. Please keep this Owner’s Manual in a safe place for later reference.
  • Page 2 This product may also use “household” type batteries. Some of these may be rack, or stand that is recommended by Yamaha. If a cart, etc., is used, please rechargeable. Make sure that the battery being charged is a rechargeable type observe all safety markings and instructions that accompany the accessory and that the charger is intended for the battery being charged.

  • Page 3: Precautions

    YAMAHA.is.not.responsible.for.damage. leakage. caused.by.improper.handling.or.operation. Information.for.Users.on.Collection.and.Disposal.of.Old.Equipment.and.used.Batteries These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

  • Page 4: Main.body/Accessories

    Main Body/Accessories After opening the packaging, please check that all the parts listed below are in- cluded. • Main body • Left frame • Stereo earphones • AC adaptor PA-D012(A), PA-130(A), PA-D09 * Product numbers may vary according to the region. Additionally, instruments sold in some countries may not be supplied with an AC adaptor.

  • Page 5: Nomenclature

    Nomenclature ● .Front ● .Rear Tuning peg Neck Fingerboard Frame attachment screw 1 (Doubles as the strap pin) Left frame Right frame (Fixed) (Removable) Horn (Leg support) Body OPEN Finger rest Saddle AUX VOL Pickup AUX IN LINE OUT (underneath the saddle) Bridge Controls...
  • Page 6 Nomenclature ● .Controls Battery compartment use 6LR61 9V POWER lamp alkaline battery OPEN EFFECT switch VOLUME control DC-IN jack (Power adaptor connector) BASS control TREBLE control PHONES ON/OFF switch AUX VOL PHONES jack Cord hook AUX IN AUX IN LINE OUT level control LINE OUT jack AUX IN jack...

  • Page 7: Attaching.the.frame

    Attaching the Frame When shipped from the factory, the left frame is not attached to the Silent Guitar’s main body. Before using the instrument, please properly attach the left frame using the proce- dure described below. Fully loosen [frame attachment screw 1] located in the Frame attachment screw 1 area behind the 12 fret, and [frame attachment screw 2]...

  • Page 8: Changing.strings

    Changing Strings As the strings get old, sound quality will gradually decrease, and it will become difficult to tune the instrument. Change the strings as soon as you think they are getting old. Make sure you purchase a set of nylon guitar strings. The Silent Guitar uses a string length of 650mm (25-9/16 inch).

  • Page 9: Power.supply

    Power Supply The Silent Guitar operates either on battery power or with an AC adaptor however, it will consume more power when the reverb function is in use. For that reason, we recommend that it be powered with the supplied AC power adaptor for normal use. Always turn the PHONES ON/OFF switch OFF before making AC power connections or replacing the battery.

  • Page 10: Connecting.external.devices

    Connecting External Devices Silent Guitar •.Using.the.cord.hook Stereo earphones Wrap the power adaptor’s cord around the cord hook (prevents cord from being unplugged). AUX VOL AUX IN LINE OUT Recorder, Mixer, etc. Cord hook (Stereo output) 6LR61 Power adaptor Alkaline battery Electric outlet OPEN...

  • Page 11: Aux In Jack

    Connecting External Devices ■. AUX.IN.jack • The AUX IN jack can be used to connect an external stereo signal source to the Silent Guitar. Connecting the audio output of a CD player, portable music player, etc., to the instrument allows you to play along with the external audio source.

  • Page 12: Using.the.controls

    Using the Controls ■ . Using.the.LINE.OUT.jack. (Using.with.a.guitar.amplifier.or.powered.speaker,.etc.) Use a standard phone plug cable to connect the Silent Guitar’s LINE OUT jack to the input jack on the guitar amplifier or powered speaker, etc. When the cable’s plug is inserted into the LINE OUT jack, power will be supplied to the Silent Guitar and the power lamp will light.

  • Page 13: Using.the.soft.case

    Using the Controls / Using the Soft Case Insert the earphone plug into the headphone jack. When connecting the instrument to an external de- vice, connect the external device to the PHONES jack using a cable with a stereo plug. The remaining procedures are the same as described above in the “Using the LINE OUT jack”...

  • Page 14: Specifications

    Specifications Neck Mahogany Body Maple Fingerboard Rosewood (SLG130NW : Ebony) Bridge Rosewood Frame.Unit Maple (SLG130NW : Rosewood/Maple) Strings Nylon Guitar Strings Sensors B-BAND Connectors/Controls • AUX IN • AUX IN Level Control • LINE OUT jack (monaural) • PHONES jack (stereo) •...
