Samsung NX58H9500WS Quick Manual

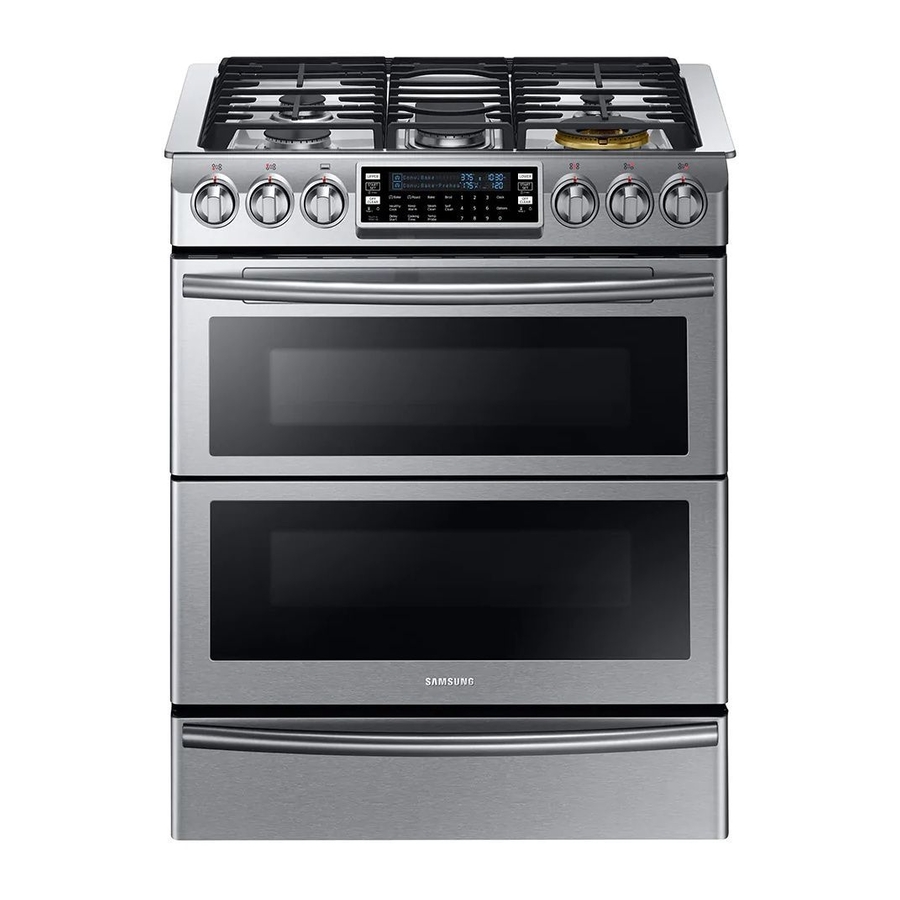

Slide-in stainless steel gas range with 5 sealed burners
Hide thumbs Also See for NX58H9500WS:
1
2
3

Advertisement

Quick Links

Download this manual See also: User Manual, Installation Manual
Enlarged version

quick guide

For full information, please refer to the User Manual.

CONTROL PANEL DISPLAY MODES

Sleep Mode
Your control panel will remain in a sleep mode when not in use. Only the clock will display.
You will need to wake the control panel to begin any function.
Wake Mode
To wake the control panel, touch the wake-up key. After 2 minutes without activity (or one
minute when the oven is operating in standby mode), the control panel will return to Sleep
mode. User preferences are available in this mode as well as timers, the oven light, and the
control lock.
COOKING FEATURES
BAKE
1. Press BAKE.
2. Set a desired temperature.
(175 °F - 550 °F)
3. Press START/SET.
Quick-Guide_NX58H9500WS_AA_AC_DG68-00554A-00_EN.indd 1
CONV BAKE
1. Press CONV.BAKE.
2. Set a desired temperature.
(175 °F - 550 °F)
3. Press START/SET.
CONV ROAST
1. Press CONV.ROAST.
2. Set a desired temperature.
(175 °F - 550 °F)
3. Press START/SET.
SELF CLEAN
1. Press the Self Clean button.
2. Select one of 2 hr/3 hr/5 hr
cleaning time pressing Self
Clean.
3. Press START/SET.
TEMP PROBE
1. Push the tip of the probe into food and
place in the oven.
2. Insert the probe plug into socket.
3. Choose the desired cooking function
(Bake, Conv.Bake, Conv.Roast).
4. Press TEMP PROBE.
5. Set the desired temperature.
6. Press START/SET.

USING THE OPTIONS FUNCTION

This function enables you to control various electronic control options and provides Favorite Cook
mode. These options include favorite cook, temp adjust, temp unit, auto conversion, 12 hour time
of day or 24 hour time of day, 12 hour energy save, language, sound on/off, and demo mode.
The option menu is only available when the oven is not being used (not cooking).
1. Press the Options button.
2. Select one of 9 options.
1) Favorite Cook 4) Auto Conversion
7) Language
2) Temp Adjust
5) Time of day
8) Sound on/off
3) Temp Unit
6) 12 hour energy save 9) Demo mode
BROIL
1. Press BROIL.
2. Select one of HI/LO pressing
BROIL.
3. Press START/SET.
• The oven door must be closed
during broiling.
HEALTHY COOK
1. Press HEALTHY COOK.
2. Press NUMBER PAD(1~6)
which you want to set.
3. Press START/SET.
KEEP WARM
1. Press KEEP WARM.
2. Press START/SET.
2014-05-03
5:21:24

Advertisement

loading

Related Manuals for Samsung NX58H9500WS

Summary of Contents for Samsung NX58H9500WS

  • Page 1: Quick Guide

    quick guide CONV ROAST BROIL 1. Press CONV.ROAST. 1. Press BROIL. 2. Set a desired temperature. 2. Select one of HI/LO pressing (175 °F - 550 °F) BROIL. For full information, please refer to the User Manual. 3. Press START/SET. 3.

  • Page 2: Minimum And Maximum Settings

    6. Warming drawer Convection Roast 175 °F (80 °C) 550 °F (285 °C) ¹ NX58H9950WS, Self Clean 2 hours 5 hours ² NX58H9500WS Keep Warm 3 hours USING THE TEMP PROBE Warming drawer Healthy cook 100 °F 550 °F For many foods, especially roasts and poultry (beef, chicken, turkey, pork, lamb etc),...
  • Page 3 DG68-00554A-00 2014-05-03 6:02:22 Quick-Guide_NX58H9500WS_AA_AC_DG68-00554A-00_CFR.indd 4...
