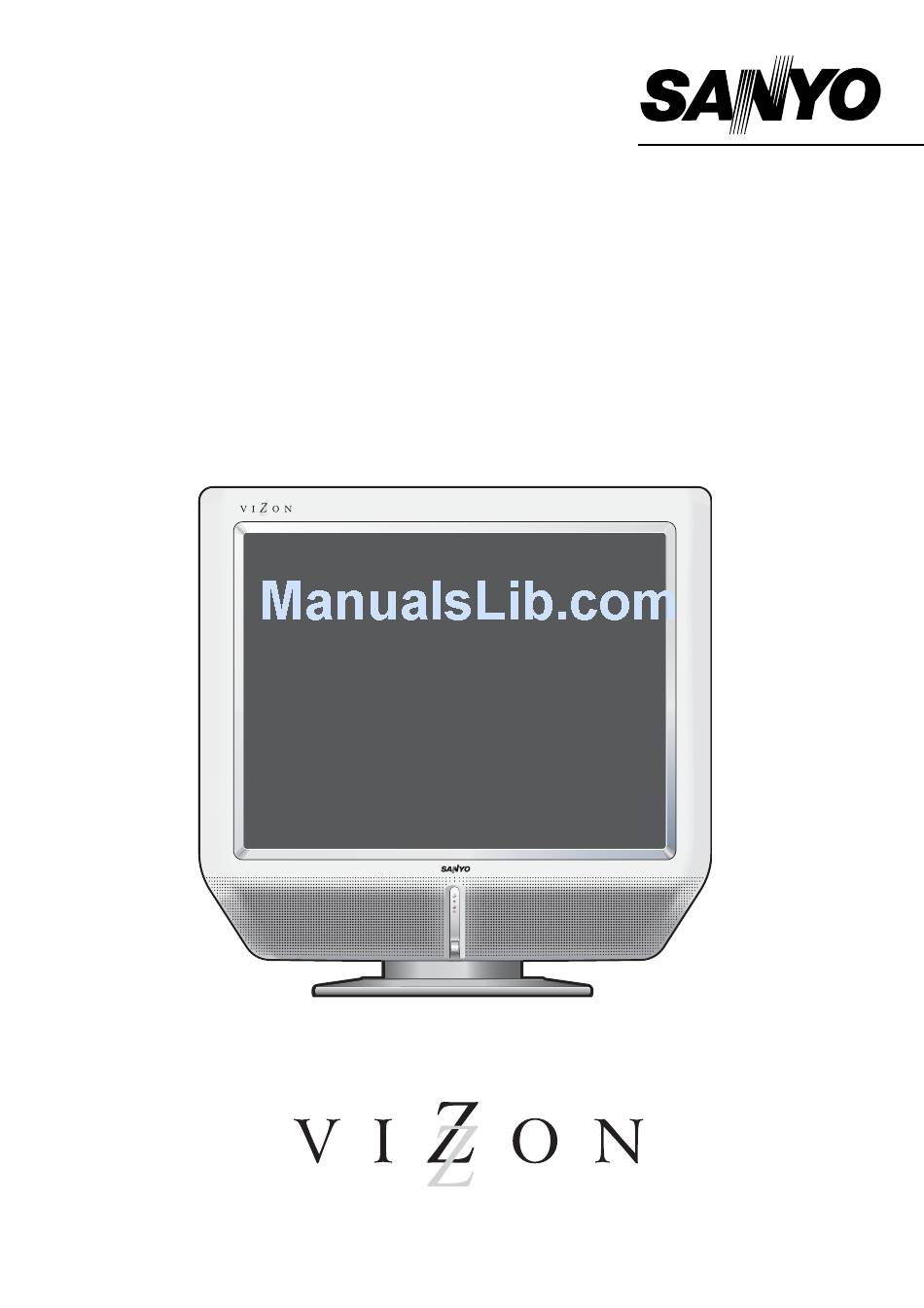

- Page 1 INSTRUCTION MANUAL LCD-15CA1Z LCD-20CA1Z LCD Colour Television...
-
Page 2: Table Of Contents
Contents Warnings and Cautions ....3 Connecting to a AV Device with TV Connecting the Power ....4 Antenna Jack . -
Page 3: Warnings And Cautions
Warnings and Cautions If the television is to be built into a Warning compartment or similarly enclosed, the minimum distances must be maintained. Heat High voltages are used in the operation of build-up can reduce the service life of your this television receiver. -
Page 4: Connecting The Power
Connecting the Power Connecting the power with following steps; 1. Connect AC power cord to AV Adapter. 2. Connect AC Adapter DC output (DC 12V) to DC IN 12V of the TV monitor. 3. Connect AC power cord into AC outlet. Opening terminal cover Connecting plug into DC IN 12V terminal. -
Page 5: Remote Control
Remote Control TV/AV Button TV / POWER ON/OFF button MUTE button RECALL button ECO button NUMERIC button DIGIT button ALTERNATE button -/- - -/- - COLOUR SYSTEM button SIF SYSTEM button C.SYS S.SYS POSITION UP button VOLUME (-) button VOLUME (+) button MENU MENU button VIDEO SELECT button... -
Page 6: Control Panel
Each button on the control panel has the same function Control Panel with its counterpart on the remote control Stand-by and Power Indicator TIMER Indicator Remote Control Detector Screen Position Adjustment : rotation is possible for a rotation stand. Viewing Angle Adjustment: Tilt front and backward. -
Page 7: Plug & Play
Plug & Play By PLUG & PLAY, when the TV set is powered on for the first time, it will automatically search and preset all the receivable TV positions. Plug the power, connect the antenna, and press the MAINS ON/OFF button on the control panel, the TV set will automatically search the positions. -
Page 8: General Operation
General Operation TV/AV button NOTE: While the TV set will not be used for a long TV / period of time, pull off the power plug. POWER ON/OFF button Auto Shut Off This function is available in the two conditions NUMERIC below: button... -
Page 9: Alternate
General Operation Recall MUTE button Press the RECALL button to display the On- -/- - Screen indication, including the selected channel VOLUME (+/-) button position, colour system, sound system, time and other information. Still MENU -/- - While the program is on, Press the STILL button to freeze the picture on the screen. -
Page 10: Video And Eco Settings
General Operation Video and ECO Setting There are 8 video status to select. Press the VIDEO SELECT button to choose any of the options of "PERSONAL", "DYNAMIC", "NATURAL" and "GAME". -/- - PERSONAL DYNAMIC This option gives bright and dynamic Use this option to recall VIDEO SELECT button picture. -
Page 11: Colour And Sound System
Colour and Sound System Setting of the Colour System -/- - C.SYS S.SYS COLOUR SYSTEM button SIF SYSTEM button Generally, the colour system is in the AUTO status. In case of abnormal colour when receiving a TV or video program, you may press the COLOUR SYSTEM button repeatedly until the best picture is obtained. -
Page 12: Screen Menu Summary
Screen Menu Summary Help you find the item desired. PICTURE PICTURE COLOUR (Adjustment of colour saturation.) BRIGHT (Adjustment of picture's brightness.) CONTRAST (Adjustment of picture's light and shade.) TINT (To adjust the colour standard of NTSC system. It is available only when signal of NTSC or NTSC4.43 system is received.) SHARPNESS (To adjust the details of the picture.) FINE TUNING (Used when poor receiving effect due to weak TV... -
Page 13: Picture
PICTURE In the PICTURE menu, you can adjust these functions: COLOUR(from 0 to 63), BRIGHT(from 0 to 63), CONTRAST(from 0 to 63), TINT(from -32 to +31), SHARPNESS(from 0 to 31), FINE TUNING(BW/FW), NOISE HUNT(OFF, LOW, MID and HIGH) and WHITE TONE(NORMAL, WARM and COOL). The setting procedure below is taking the adjustment of COLOUR as example. -
Page 14: Sound
SOUND In the SOUND menu, you can adjust these functions: BASS(ON/OFF) and VOL ADJ. (from 00 to 15). The setting procedure below is taking adjustment of BASS as example. -/- - -/- - ALTERNATE button Press the VOLUME(+/-) button to adjust. C.SYS S.SYS BASS... -
Page 15: Time
TIME In the TIME menu, you can adjust these functions: TIME, ON SETUP, ON TIMER, ON POS. and OFF TIMER. Press the VOLUME (+/-) button to select hour -/- - -/- - ALTERNATE and then press POSITION UP/DOWN button button to set it. -
Page 16: On Setup
TIME ON TIMER -/- - -/- - ALTERNATE button C.SYS S.SYS With this function, you won't miss any opportunity to watch the preset position. ° Leaving the TV set on stand-by status after MENU setting the ON TIMER, when the set time is POSITION reached, the TV set will automatically start on. -
Page 17: On Pos
TIME Return to the main menu by pressing the Refer to the steps 1~2 described on page 15 ALTERNATE button. to enter TIME adjust menu. Press the The on-screen menu will disappear POSITION UP/DOWN button to select ON automatically when no operation is done in POS.. -
Page 18: Off Timer
TIME Return to the main menu by pressing the OFF TIMER ALTERNATE button. The on-screen menu will disappear With this function, you can set the OFF time of automatically when no operation is done in the TV set. When the set time is reached, the TV 15 seconds. -
Page 19: Feature
FEATURE In the FEATURE menu, you can adjust these Press the VOLUME(+/-) button to display the functions: LIMIT VIEW, MIRROR TURN, ZOOM, set menu of PASSWORD. STILL and 16:9. PASSWORD ???? -/- - -/- - ALTERNATE MIRROR TURN ZOOM button C.SYS S.SYS STILL... -
Page 20: Zoom
FEATURE Return to the main menu by pressing the -/- - -/- - ALTERNATE ALTERNATE button. button The on-screen menu will disappear C.SYS S.SYS automatically when no operation is done in 15 seconds. MENU Press the MENU button to go back to the POSITION normal TV status. -
Page 21: Still
FEATURE 16:9 (Available in AV mode only.) TV / TV/AV button It is used to display the picture on 16:9. -/- - -/- - ALTERNATE Press the TV/AV button to select AV1 or AV2. button C.SYS S.SYS Refer to the steps 1~2 described on page 19 to enter FEATURE menu. -
Page 22: Preset
PRESET (Workable in TV mode only) Up to 256 positions can be stored. If the function of "TUNING LOCK" has been set "ON" in "SETTING", you can not proceed the operation of "PRESET". To Select Colour and Sound System Usually, colour system and sound system are set to AUTO system. In case of poor reception due to weak signal, you may try to change the colour and sound systems to obtain the best picture and sound. -
Page 23: Auto
PRESET Press the POSITION UP/DOWN button to Press the MENU button and the main menu select MEMORY. will appear. Press the POSITION UP/DOWN button to select PRESET. PRESET MODE SEMI SEARCH POSITION COLOUR AUTO AUTO SOUND SKIP MEMORY SAVE ? : ENTER : SELECT : ENTER... -
Page 24: Semi And Manual
PRESET Press the POSITION UP/DOWN button to -/- - -/- - ALTERNATE select SEARCH. Press the VOLUME(+/-) button button to select FW or BW. (Press and hold C.SYS S.SYS the button if you are in MANUAL mode.) PRESET MODE SEMI SEARCH MENU POSITION... -
Page 25: Channel Arrangement
CHANNEL ARRANGEMENT This TV provides convenient channel arrangement features described as follows. After preset channels, you can arrange the channels to suit your preference by using these features. These features are available in TV mode only. If the function of "TUNING LOCK" has been set "ON" in "SETTING", you can not proceed the operations of these features. -
Page 26: Swap Channel
CHANNEL ARRANGEMENT To enter Position 12 by pressing the NUMERIC buttons 0, 1 and 2 sequentially. (To enter a NUMERIC single digit position, eg. Position 3 by pressing button the NUMERIC buttons 0, 0 and 3 sequentially. To enter a hundred digit position by pressing the NUMERIC buttons sequentially.) -/- - -/- -... -
Page 27: Private Positions
CHANNEL ARRANGEMENT To Watch Private Positions Private Positions Select a private position. (Taking Position15 as This function enables setting of certain positions example.) as personal ones so as to prevent other people from watching them. For example, in some cases, some positions not appropriate for children viewers may be locked. -
Page 28: Setting
SETTING This product provides the following settings. 1) VOLUME LOCK. It enables limitation on the maximum volume as you like. 2) TUNING LOCK. Prevents the PRESET operated by others. 3) SCREEN SAVE. When there is no signal in AV mode, the protecting picture will appear. (While there is no signal in TV mode, the screen will always display in blue.) 4) START MODE. -
Page 29: Connecting To Other Equipment
Connecting to Other Equipment Rear Terminal Panel HEADPHONE jack S-VIDEO S-VIDEO input terminal - AV1 VIDEO VIDEO MONITOR output terminal VIDEO input terminal - AV1 AUDIO AUDIO MONITOR output terminal (left) AUDIO input terminal (left) - AV1 AUDIO MONITOR output terminal (right) AUDIO input terminal (right) - AV1 OUTPUT VIDEO input terminal - AV2... - Page 30 Connecting to Other Equipment When watching a video program input from the AV1 terminal, press the TV/AV button to select AV1. Whenever the TV/AV button is pressed, the mode will change as follows: TV / AV2(DVD) (TV mode) TV/AV button To make sure the colour system of the TV set is consistent with the signal of your video recorder, if necessary, select a matching system.
-
Page 31: Connecting To A Dvd Player With S-Video Terminal
Connecting to Other Equipment Connecting to a DVD player with S-VIDEO terminal S-VIDEO VIDEO PLAY AUDIO To Audio Output (left) DVD Player with S-VIDEO Terminal To Audio Output (right) OUTPUT Connect it to the S-VIDEO terminal, you will enjoy high quality picture from the DVD player. S-VIDEO cord When watching a video program input from the S-VIDEO terminal, press the TV/AV button to select AV1. -
Page 32: Connecting To A Dvd Player
Connecting to Other Equipment Connecting to a DVD Player (both used to DVD and AV2) Connecting to a DVD Player with Video Component Video Output Terminal (Y, C or C Connect the component output terminal on your DVD player to the component video input terminal of this product, you will be able to enjoy higher quality picture than that received when common video terminal or S-VIDEO terminal is used. -
Page 33: Connection Of Monitor Output Terminal
General Operation Connecting of Monitor Output Terminal Monitor output terminal outputs signal of picture currently playing. It may be used to record TV program or reproduce video program received from connection with AV input terminal. S-VIDEO To Record a TV Program VIDEO To Video Input AUDIO... -
Page 34: Connection Of Antenna
Connection of Antenna Connect the antenna as shown. ANTENNA cable ANTENNA jack In case of any problem of antenna loop, consult the local dealer. -
Page 35: Useful Hints (Problems/Solutions)
Useful Hints (Problems/Solutions) Prior to your call for consultation, make sure the following items. Problems: Try these solutions: If the power cord is properly plugged? No picture and sound. Try another channel, if it's OK, it must be a fault of the TV station. Adjust the brightness or contrast. -
Page 36: Specifications
Operating Voltage Monitor: DC12V AC Adapter: AC100V ~ 240V, 50Hz/60Hz, Output DC 12V LCD Panel Model LCD-15CA1Z: 15 Inch TN Type (Measured Diagonally) Model LCD-20CA1Z: 20 Inch TN Type (Measured Diagonally) Resolution XGA (1024 x 768 = 786,432 Pixel) Contrast Ratio...
