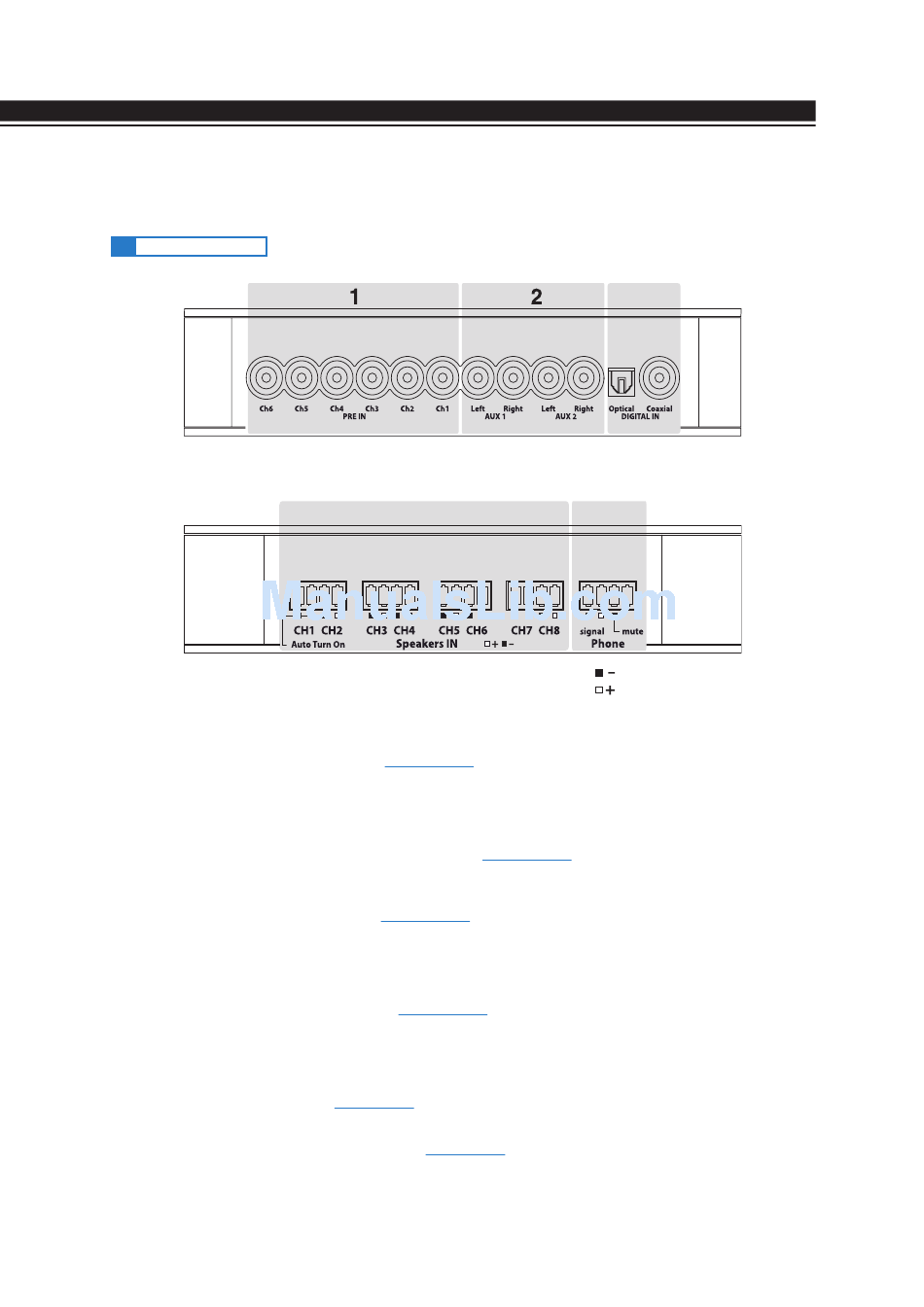

4. CONNECTION PANELS - DESCRIPTION

4.1

INPUT SIGNALS

Remark:
Ch1 Auto Turn ON can be
excluded in the Bit One.1 version.
1. PRE IN low-level MASTER inputs
Ch1 - Ch2 - Ch3 - Ch4 - Ch5 - Ch6
Connect here the RCA cables coming from the main analog signal source.
If these inputs are used, the MASTER SPEAKER IN inputs can not be used.
2. AUX1 – AUX2 auxiliary low-level STEREO inputs
Connect here the RCA cables coming from additional analog signal sources.
3. DIGITAL IN S/PDIF digital inputs
The applicable signal must be a 48 kHz/24bit max. STEREO signal.
COAXIAL. Connect a 75 ohm shielded cable.
OPTICAL. Connect an optical fibre cable with TOSLINK connector.
4. SPEAKERS IN hi-level MASTER input
Ch1 - Ch2 - Ch3 - Ch4 - Ch5 - Ch6 - Ch7 - Ch8
Connect here the specific cables coming from the power output of the main signal source.
If these inputs are used, the MASTER PRE IN inputs can not be used.
Ch1 features AUTO TURN ON (ART), providing the ability to automatically turn on/off the Bit One through the
connection with the source speaker outputs. In the Bit One.1 version (check label on the bottom of the product)
this feature can be disabled
5. PHONE input for phone hands-free kits
SIGNAL. Connect the audio output cables coming from the hands-free kit system in use.
MUTE. Connect the hands-free kit remote control (MUTE/PHONE MUTE).
4
(see section 5.4.1-2)
(see section
(see section 5.4.5-6)
(see section 5.5.1-2)
(see section 5.5.1).
(see section 5.5.3)
5
ADVANCED MANUAL / Bit One /
3
5
negative pole (ground)
positive pole
5.4.3-4)
