Niveo N10GSM8F8 Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

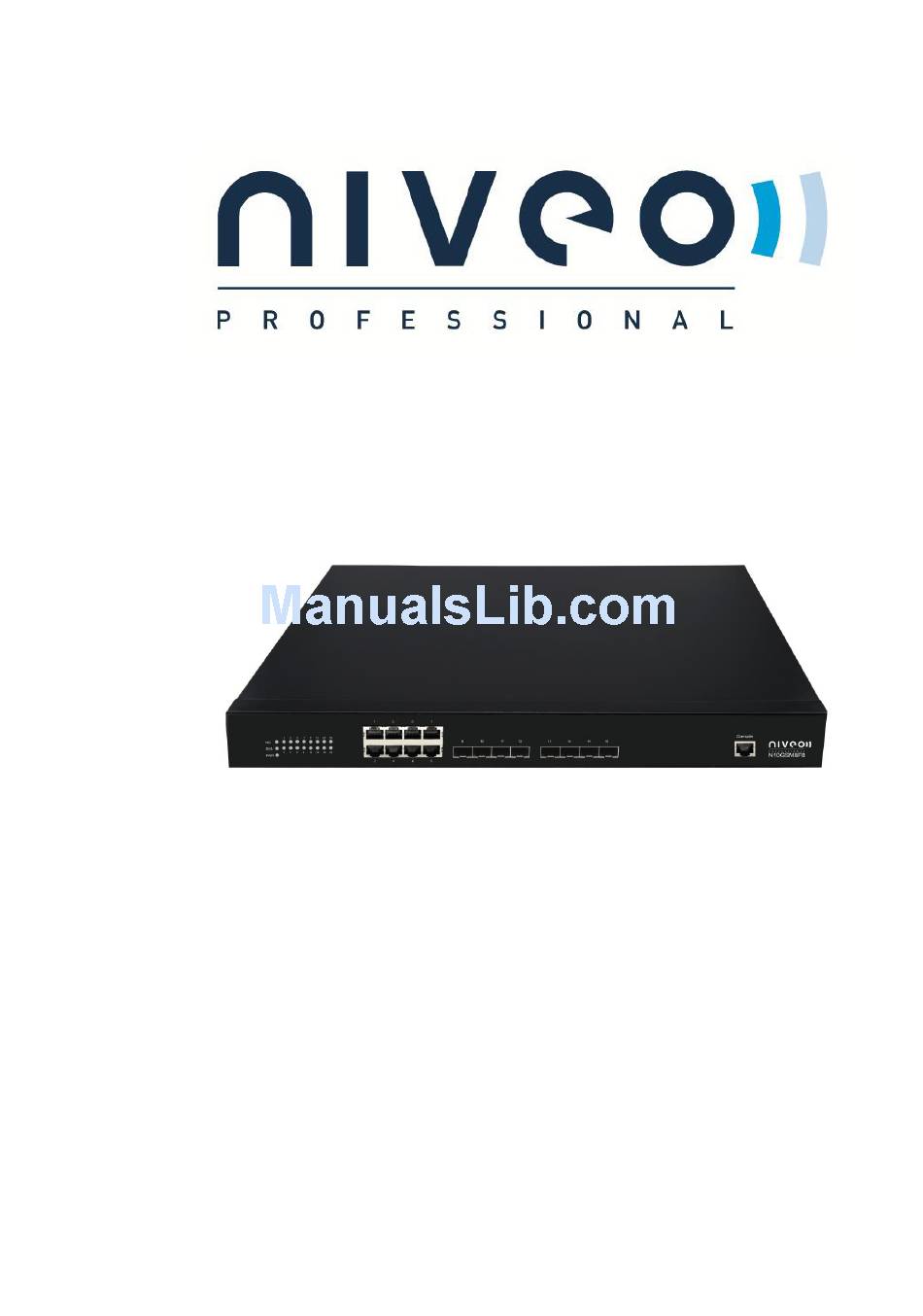

Operational Manual N10GSM8F8
Preliminary version 1.6
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N10GSM8F8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Niveo N10GSM8F8

Summary of Contents for Niveo N10GSM8F8

  • Page 1 Operational Manual N10GSM8F8 Preliminary version 1.6...

  • Page 2: Table Of Contents

    operation manual Announcements: This software version must be saved after completion of the configuration function. Otherwise all configuration is not saved after restart the system. You can save the configuration through the label ‘Save’ or the icon on the upper right corner of the web. Summarize ..............................

  • Page 3: Summarize

    Static ............................... 17 Protocol ............................18 IP Subnet ............................19 MAC-Based ............................ 20 MAC Address ............................20 Static ............................... 20 Dynamic ............................22 Spanning Tree ............................23 Loopback Detection ........................23 STA ..............................24 Traffic ..............................24 Rate Limit ............................25 Storm Control ..........................
  • Page 4 If you want to access the switch via the web, you need to ensure that your computer is connected to the switches in the network. If this is the first time to use switch, do not need to do any additional configuration switch, you can use web access the switch.

  • Page 5: Function Introduction

    Function Introduction: System: Use the System menu items to display and configure basic administrative details of the switch. General Use the General screen to display descriptive information about the switch, or for quick system identification.

  • Page 6: Switch

    Switch Use the Switch Information page to display hardware/firmware version numbers for the main board and management software, as well as the power status of the system. Time Use the Time menu to manually set the system clock, or to automatically configure the clock through SNTP servers.

  • Page 7: Console

    console Using the console page to setup parameters of the console terminal.

  • Page 8: Telnet

    Telnet Use the Telnet page to set Telnet connection parameters. User Manage First, choose the type of the username: 1.Console User Manage :Modify the console username and password...

  • Page 9: Cpu Utilization

    2.Telnet User Manage:Modify the telnet username and password (Note: before use telnet connections, you must have configured username and passoword) 3.Web User Manage:Modify the web username and password 4.Privileged User Manage:Modify the privileged password. CPU Utilization Use the CPU Utilization page to display information on CPU utilization.

  • Page 10: Memory Status

    Memory Status Use the Memory Status page to display memory utilization parameters File Use the File menu to transfer runtime code or configuration settings, or to configure the automatic upgrade function.

  • Page 11: Reset

    Reset Use the Reset page to restarts the switch immediately, at a specified time, after a specified delay, or at a periodic interval.

  • Page 12: Interface

    Interface Use the Interface menu to configure ports and trunks. Port Use the Port menu to configure connection settings, to mirror traffic to another port, to display statistics on traffic, or to test a cable. General Use the General page to configure connection setting per port or per port range, or to display current connection settings.

  • Page 13: Configure Port

    Configure port Use the Green Ethernet page to adjust the power provided to ports based on the length of the cable used to connect to other devices. Statistics Use the Statistics page to show Interface, Etherlike, and RMON port statistics.

  • Page 14: Chart

    Chart Use the Chart page to show Interface, Etherlike, and RMON port statistics in graphic form.

  • Page 15: Trunk

    Trunk Use the Trunk menu to configure static or dynamic trunks, or to display statistics on network traffic. Static Use the Static page to create a trunk, add port members, and configure connection parameters.

  • Page 16: Mirror

    Mirror Use the Mirror screen to sets the source and target ports for mirroring. Note: the mirror support one-to-one and one-to-many For example: port 5 mirror to port 3. Select “Add ” in the drop-down box of the label “Action”, and select port 3 in the destination port, select port 5 in the source port, select Tx and Rx in the mode, click apply.

  • Page 17: Traffic Segmentation

    Traffic Segmentation Use the Traffic Segmentation page to enables traffic segmentation globally, and to Configure the uplink and down-link ports for a segmented group of ports. VLAN Use the VLAN menu items to configure VLAN-related functions. Static...

  • Page 18: Protocol

    Use the Static screen to create VLAN groups, and to specify VLAN attributes per VLAN, interface, or interface range. Protocol Use the Protocol page to create a protocol group, and map a group to a VLAN.

  • Page 19: Ip Subnet

    IP Subnet Use the IP Subnet page to map IP subnet traffic to a VLAN.

  • Page 20: Mac-Based

    MAC-Based Use the MAC-Based page to map traffic with a specified source MAC address to a VLAN. MAC Address Use the MAC Address menu to enables MAC address learning, configure static entries in the address table, and set the timeout for dynamically learned entries. Static Use the Static page to configure static entries in the address table.

  • Page 22: Dynamic

    Dynamic Use the Dynamic page to sets the timeout for dynamically learned entries, and display dynamic entries in the address table.

  • Page 23: Spanning Tree

    Spanning Tree Use the Spanning Tree menu to configure the Spanning Tree Algorithm. Loopback Detection Use the Loopback Detection page to configure Loopback Detection parameters.

  • Page 24: Sta

    Use the STA page to configure global and interface settings for STP, RSTP and MSTP. Traffic Use the Traffic menu to configure various traffic control and handling functions.

  • Page 25: Rate Limit

    Rate Limit Use the Rate Limit page to sets the input and output rate limits for a port. Storm Control Use the Storm Control page to set the broadcast storm threshold for each interface.

  • Page 26: Priority

    Priority Use the Priority menu to configure parameters for handling priority tags. Default Priority Use the Default Priority page to set the default priority for each port or trunk.

  • Page 27: Queue

    Queue Use the Queue page to Set the queue mode for the switch; or to set the service weight for each queue that will use weighted or hybrid mode.

  • Page 28: Phb To Queue

    PHB to Queue Use the PHB to Queue page to map internal per-hop behavior values to hardware queues. Security Use the Security menu to control management access to the switch, access to connected users, or to restrict access to specific packet types of traffic flows. Use the ACL page to configure the time to apply an ACL, add an ACL based on IP or MAC address filtering, and bind a port to the specified ACL.

  • Page 29: Arp Inspection

    ARP Inspection Use the ARP Inspection page to enable inspection globally, configure validation of additional address components, and set the log rate for packet inspection; to enable ARP inspection on specified VLANs; to set the trust mode for ports, and set the rate limit for packet inspection. IP Source Guard Use the IP Source Guard menu to filter IP traffic based on static entries in the IP Source Guard table, or dynamic entries in the DHCP Snooping table.

  • Page 30: Port Configuration

    Port Configuration Use the Port Configuration page to enable IP source guard and selects filter type per port. Static Binding Use the Static Binding page to add a static addresses to the source- guard binding table.

  • Page 31: Dynamic Binding

    Dynamic Binding Use the Dynamic Binding page to display the source-guard binding table for a selected interface. Administration Use the Administration menu to perform basic administration tasks including configuring logging of error messages, LLDP, SNMP, and configuring device management clusters.

  • Page 32: Log

    Use the Log menu to to control the logging of error messages, including the type of events that are recorded in switch memory, logging to a remote System Log (syslog) server, and displays a list of recent event messages. Show logs Use the log display, display the local list of event messages.

  • Page 33: Snmp

    SNMP Use the SNMP page to configure management access from SNMP clients, or to send trap messages to specified hosts. Use the IP menu to ping another network device, or to configure an IPv6 management address. General Use the General menu to access general IP functions.

  • Page 34: Ping

    Ping Use the Ping page to ping another network device. Use the IP page to set the IPv4 address management access.

  • Page 35: Ip Service

    IP Service Use the IP Service menu to configure DNS and DHCP snooping. DHCP detection The use of Snooping enabled DHCP snooping in the global scope, MAC address validation information option setting information policy; enable DHCP snooping a VLAN; set the trust model for an interface.

  • Page 36: Multicast

    Multicast Use the Multicast menu to configure IGMP snooping and Multicast VLAN Registration. IGMP Snooping Use the IGMP Snooping menu to configure IGMP snooping and query parameters. General Use the General page to enable multicast filtering, and configure parameters for multicast snooping. Multicast Router...

  • Page 37: Igmp Member

    Use the Multicast Router page to assign ports that are attached to a neighboring multicast router. IGMP Member Use the IGMP Member page to statically assign multicast addresses to the selected VLAN. Interface Use the Interface page to configure IGMP snooping per VLAN interface.

  • Page 38: Forwarding Entry

    Forwarding Entry Use the Forwarding Entry page to display the current multicast groups learned through IGMP snooping.
