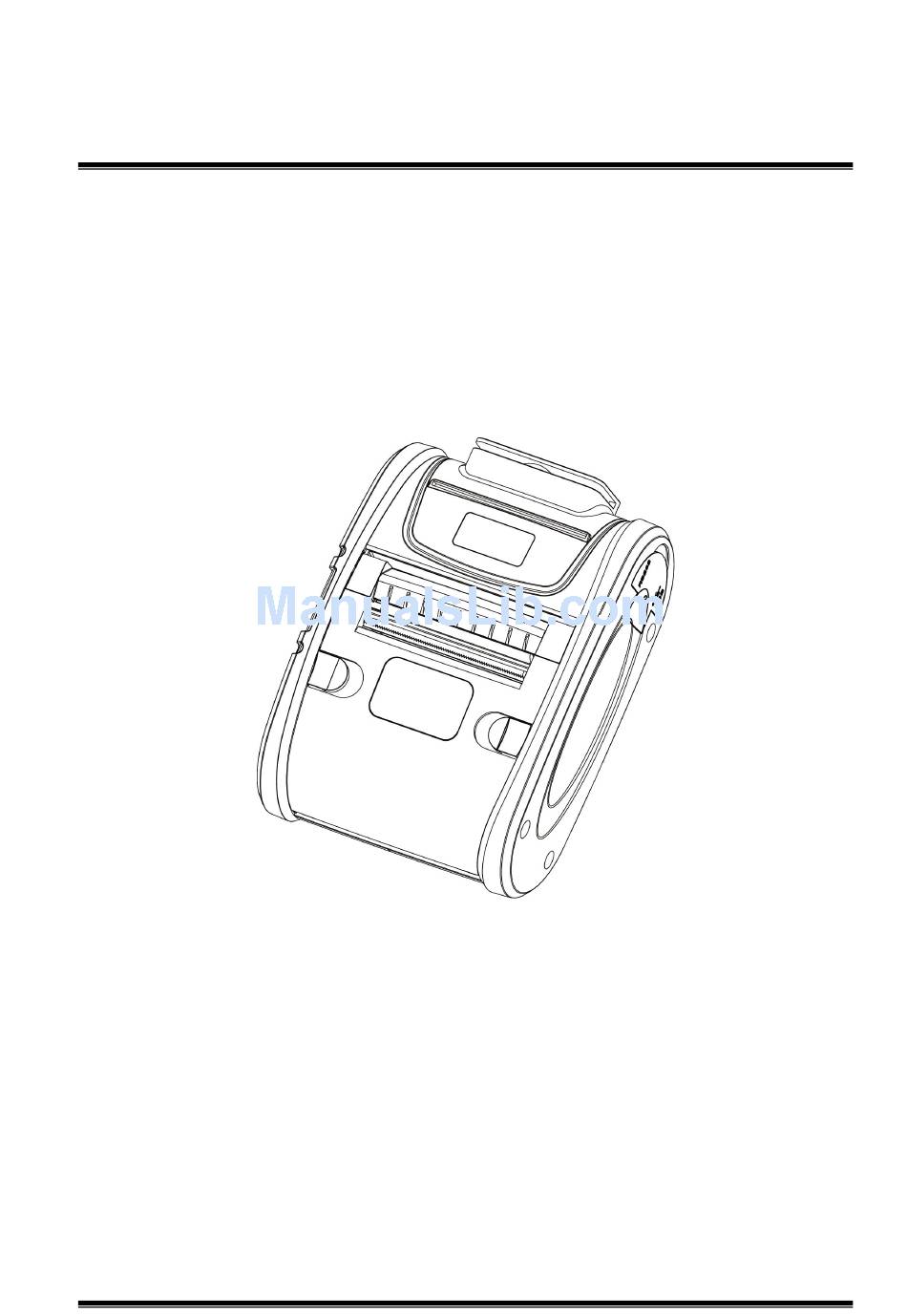

- Page 1 Mobile Receipt & Label Printer User Manual MLP2 Xiamen Hanin Electronic Technology Co.,Ltd. ADD： Room 305A, Angye Building, Pioneering Park, Torch High-tech Zone, Xiamen, China 361009 Tel.： +86-(0)592-5885993 Fax： +86-(0)592-5885992 Web: www.hprt.com...
- Page 2 Copyright This manual is printed in 2016, the copyright belongs to Xiamen Hanin Electronic Technology Co. Ltd. Printed in China 1.6 Version...
- Page 3 REVISION RECORDS REV. DATE DESCRIPTION Drawn Checked Approved 2013.08.01 First edition Chenweihua Lin yang Ren xiaowei 2013.08.16 1. Add charging safety precautions.(P12) Chenweihua Lin yang Ren xiaowei 1.Add Bluetooth function, interface and 2014.12.03 Cui Xiao Yang Kaiqu Ren Xiaowei driver. 2015.01.04 1.Add Chapter 6 Troubleshooting.
-
Page 4: Table Of Contents
Contents ■ MANUAL INFORMATION........................1 ■ IMPORTANT SAFETY INSTRUCTIONS....................2 CHAPTER 1 APPEARANCE AND ACCESSORIES..................5 1.1 Packing List..........................5 1.2 Appearance..........................6 CHAPTER 2 SPECIFICATION........................7 CHAPTER 3 INSTALLATION & USAGE.....................9 3.1 Battery Installation........................9 3.2 Battery Charging........................10 3.3 Paper Loading........................11 3.3.1 Peel Mode........................11 3.3.2 Tear Bar Mode......................12 3.3.3 Paper Guide........................ -
Page 5: Manual Information
MLP2 User Manual ■ MANUAL INFORMATION This user manual contains basic information for product usage as well as for emergency measures that may be required. ※ The following separate manuals provide more detailed content on various technological issues and areas. -
Page 6: Important Safety Instructions
MLP2 User Manual ■ IMPORTANT SAFETY INSTRUCTIONS In using the present appliance, please keep the following safety regulations in order to prevent any hazard or material damage. 1.Safety Precautions 1) Be sure to use the specified battery and power charger provided by our company, connection to an improper power charger may cause fire, explosion or damage to the printer. - Page 7 MLP2 User Manual 2) If the printer will be stored for a long time, pleas be sure to take out the battery, otherwise may damage the battery and printer. 3) Normal thermal paper can’t be kept too long, if you need to keep the receipt for a long period, please choose long term effective thermal paper.
- Page 8 MLP2 User Manual 9) Do not make the battery (+) and (-) contact with any metal. Also, do not carry along or store batteries with metal objects, such as necklaces, hair clips and so on. Battery internal short circuit may cause excessive current, and lead to the battery overheat, ignite, and/or explosion and the adjacent metal objects (necklaces, hairpins, etc.) may be overheating.
-
Page 9: Chapter 1 Appearance And Accessories
MLP2 User Manual CHAPTER 1 APPEARANCE AND ACCESSORIES 1.1 Packing List Standard Accessories Printer Power Charger Battery Belt Clip Battery Cover Paper Guide Quick Start Guide Screw×1(Lock battery cover) Screw×2(Lock belt clip) Optional Accessories Serial Cable USB Cable... -
Page 10: Appearance
MLP2 User Manual 1.2 Appearance... -
Page 11: Chapter 2 Specification
MLP2 User Manual CHAPTER 2 SPECIFICATION Table 2-1 General Specification (1/2) Item Parameter Printing Method Direct thermal line printing Resolution 203dpi (8dots/mm) Printing Speed Up to 80mm/s 12.5%pattern Printing Valid Printing Width 48mm Interface (Optional) Serial, USB, Bluetooth V2.0+EDR Card Reader(Optional) - Page 12 MLP2 User Manual Table 2-1 (Continued) (2/2) Working Condition 0℃～40℃, 20%～85%RH Physical Storage Condition -20℃～70%, 5～95%RH Characteristics Dimension 132(L)*92(W)*53(H)mm Weight 360g(without paper roll) Accessories USB Cable, Serial Cable Emulation ESC/POS,CPCL Software Driver Windows XP/Vista/7/8/10 WinCE, Win Mobile, Android, iOS...
-
Page 13: Chapter 3 Installation & Usage
MLP2 User Manual CHAPTER 3 INSTALLATION & USAGE 3.1 Battery Installation 1.Insert the battery in the bottom of the printer, and ensure that you align the battery hook properly. 2.Close the battery cover. 3.Use a coin to tighten the screw. -
Page 14: Battery Charging
MLP2 User Manual 3.2 Battery Charging (Varies by local or region) When Li-polymer battery runs out of power, blue power LED and green status LED flash slowly. It will power off automatically when continues printing. If you want to go on, please charge it. -
Page 15: Paper Loading
MLP2 User Manual 3.3 Paper Loading Please note that there are two paper loading methods (peel mode and tear bar mode). 3.3.1 Peel Mode 1.Use fingers to squeeze the cover open lever towards center position. 2.Remove enough labels from the paper roll to create a 4’’(100mm)leader. And please note correct direction of paper placement. -
Page 16: Tear Bar Mode
4.Cut the portion of the backing paper, which extends from the printer cover, along the tear bar. 3.3.3 Paper Guide MLP2 has a paper guide to adjust paper width. The max paper width is 58mm(without paper guide). The min paper width is 10mm(paper guide is in the fifth slot). -
Page 17: Belt Clip Usage
MLP2 User Manual 3.4 Belt Clip Usage 1.Insert the belt clip screws into the belt clip hole. 2.Use a screwdriver to tighten the belt clip screws as shown in the image. 3.5 Control Panel Power Button This button is used to turn the printer on and off. -
Page 18: Self-Test
MLP2 User Manual Feed Button This button is used to feed paper manually, and take the self-set . 1) To feed paper manually, press this button. Pressing FEED button, printer will feed paper to the specified position according to the paper type. -
Page 19: Peripherals Connection
Detailed pairing methods, please refer to primary devices Bluetooth Names. After pairing, primary devices with virtual Bluetooth interface (smart phone, pocket PC, palm, notebook) can drive mobile thermal printer MLP2 to printer through such virtual Bluetooth interface. 3.7.2 Interface Cable Connection 1.Open the Interface Cap. -
Page 20: Menu Operation
MLP2 User Manual 3.8 Menu Operation Main Menu Second Level Menu Third Level Menu Description Press the FEED button and then you Print can print self-test. Self Test Press the FEED button and then you Prior Menu can go back to main menu. - Page 21 MLP2 User Manual 1. Long touch the POWER button, printer will power on with below indications. 2. When the printer is on, press and hold the POWER button and the FEED button at the same time to menu mode then release two button the display screen will show main menu: (main menu include 4 items: Self Test, System Setup, Update Firmware, Exit Menu) 3.
- Page 22 MLP2 User Manual ① When you select "Density" item, press the FEED button and you can change the data bit setting from 0~9 by POWER button, press and hold the FEED button to save and exit. ② When you select "St by Time" item, press the FEED button to move cursor and press the POWER button you can change the data bit setting from 0 to 9, press and hold the FEED button to save and exit.
-
Page 23: Chapter 4 Interface
MLP2 User Manual CHAPTER 4 INTERFACE 4.1 Power Interface Power Pin No. Name 4.2 USB Interface Pin No. Name VBUS 4.3 RS-232 Interface Pin No. Name... -
Page 24: Chapter 5 Printer Cleaning
MLP2 User Manual CHAPTER 5 PRINTER CLEANING If the interior of the printer is dusty, print quality can decline. In such a case, follow the instructions below to clean the printer. 1) Open the paper cover and remove the paper, if present. -
Page 25: Chapter 6 Troubleshooting
MLP2 User Manual CHAPTER 6 TROUBLESHOOTING No power • Check that battery is installed properly. • Recharge or replace battery as necessary. Paper does not feed • Be sure print head is closed and latched. • Check print head for any binding.
