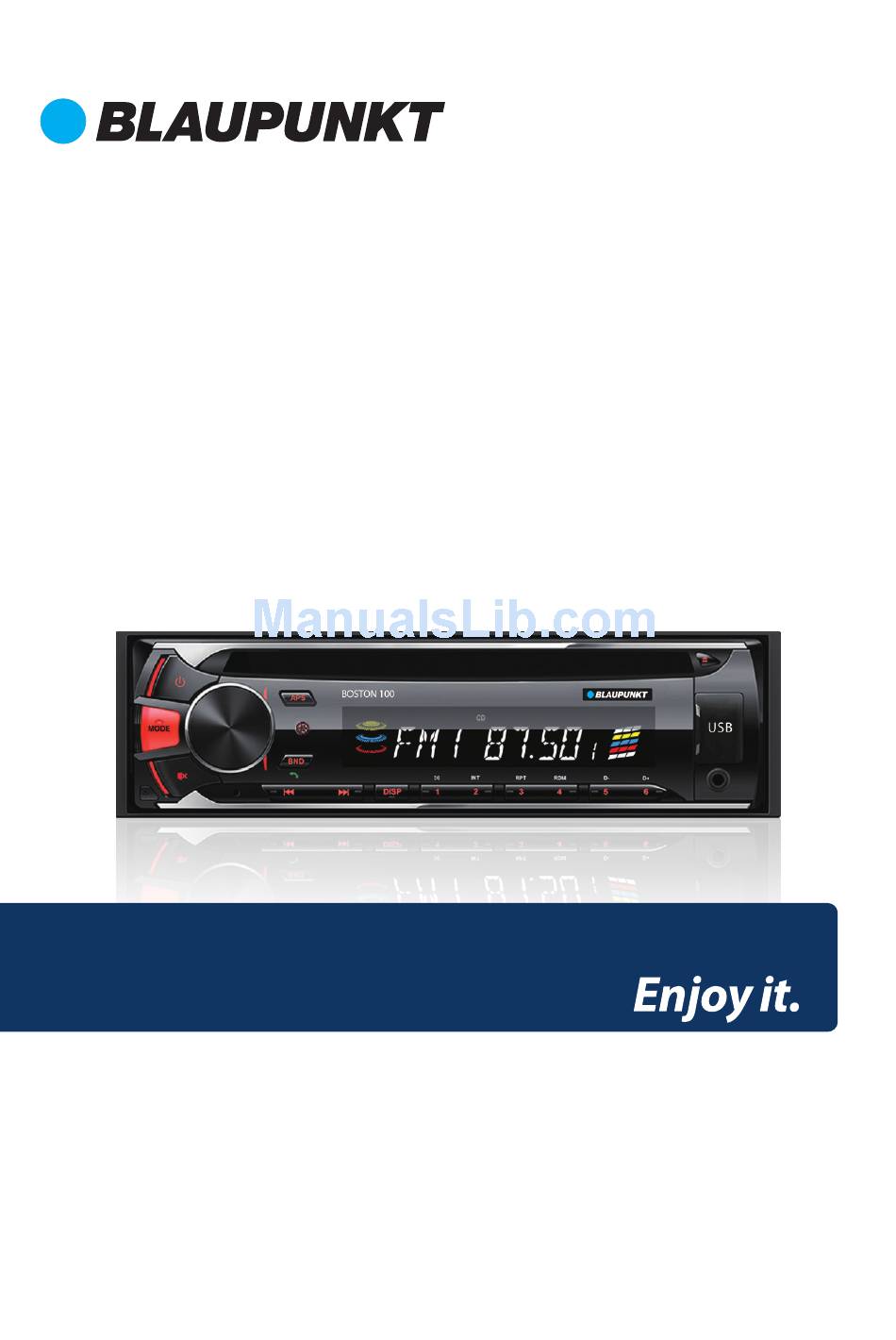

BOS100
CD & MP3 RECEIVER

Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BOS100 and is the answer not in the manual?

Questions and answers

Related Manuals for Blaupunkt BOS100

Summary of Contents for Blaupunkt BOS100

  • Page 1: Instruction Manual

    BOS100 CD & MP3 RECEIVER Instruction Manual...

  • Page 2: Wiring Diagram

    WIRING DIAGRAM BOSTON 100 REMOTE CONTROL Power On/O 2. Band Button 3. Fast Forward/ Fast Rewind 4. Play/ Pause 5. Repeat Button Number Keypad 7. Mute Button 8. Mode Button 9. APS Button Auto Program Stations) 10. Volume Controls 11. Select Button 12.

  • Page 3: Basic Functions

    BASIC FUNCTIONS EJECT Press to eject disc. If disc is not removed within 10 seconds, the disc will retract back into disc slot, but not play. 1. In Radio mode: Press and hold to surt stations one at time in descending order.
  • Page 4 BAND In Radio Mode, press BAND to cycle between AM/ FM stations as shown below: FM1-FM2-FM3-AM1-AM2 APS (Auto Program Stations) Press shortly to cycle through each programmed station for 5 seconds. Press the APS button for 2 seconds and the unit will seek stations automatically, memorizing found stations and assigning them to keys M1 to M6.
  • Page 5 Pause Play/ Key Number 1 In CD/USB/SD mode, press the Pause/ Play button to pause, play, or resume audio playback. Turning the volume knob will also resume playblack. In Radio mode, press to select preset station number 1. Browse/ Key Number 2 In CD/USB/SD mode, press the Browse button to play a 10 second snippet of each song.

  • Page 6: Usb/Sd Card Playback

    USB/SD Card Playback Insert UBS or SD card into respective ports. Media will begin playing from your USB or SD Card automatically. If auto play does not begin, press the MODE button to select USB/SD Card playback mode. Support for USB/SD Cards up to 16 GB.

  • Page 7: Troubleshooting

    TROUBLE SHOOTING NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limit are designed to provide reasonable protection harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, maybe cause harmful interfer- ence to radio communications.

This manual is also suitable for:

Dtr100bt
