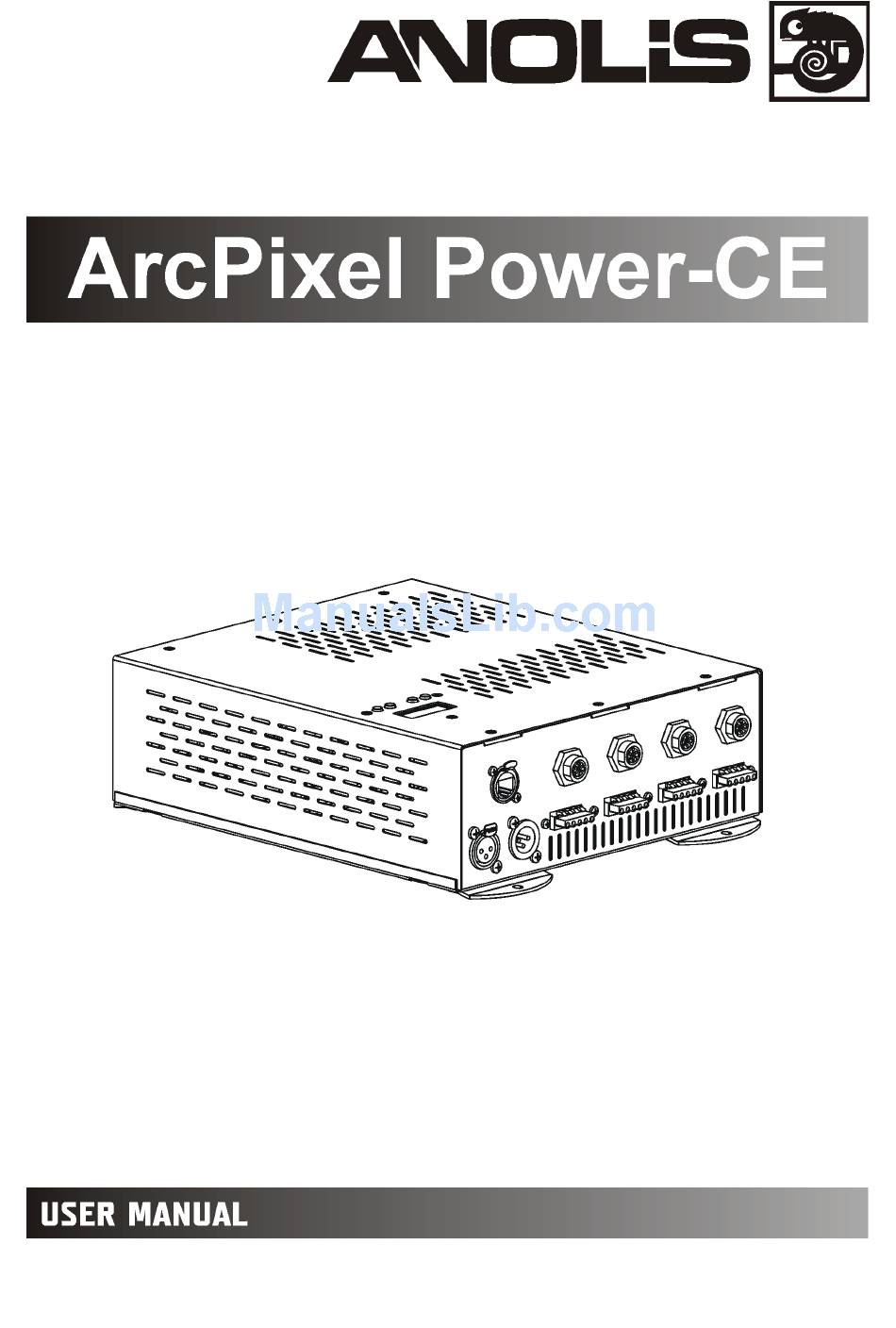

- Page 1 Version 1.6...
-
Page 2: Table Of Contents
ArcPixel Power-CE Table of contents 1. Important safety instructions ..................3 1. Consignes de sécurité importantes................4 2. Operating determinations ....................4 3. Description of the ArcPixel Power-CE ................5 4. Installation........................5 4.1. Connection to the mains: ..................5 4.2. -
Page 3: Important Safety Instructions
CAUTION! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOU INITIAL START - UP! ATTENTION! Débrancher l’appareil avant d'ouvrir le boîtier! POUR VOTRE SÉCURITÉ, LISEZ ATTENTIVEMENT CETTE NOTICE AVANT LA PRE- MIERE UTILISATION 1. -
Page 4: Consignes De Sécurité Importantes
1. Consignes de sécurité importantes Toute personne impliquée dans l'installation et la maintenance de ce produit doit: - Être suffisamment qualifié - Suivre les instructions de ce manuel ATTENTION! Soyez prudent avec vos manipulations. Avec une haute tension, vous risquez un choc électrique en touchant les fils à... -
Page 5: Description Of The Arcpixel Power-Ce
The maximum ambient temperature 40° C must never be exceeded. Operate the unit only after having familiarized with its functions. Do not permit operation by persons not qualified for operating the unit. Most damages are the result of unprofessional operation! Please use the original packaging if the product is to be transported. -
Page 6: Mounting The Arcpixel Power-Ce
4.2. Mounting the ArcPixel Power-CE The ArcPixel Power-CE should be be placed on a non-flammable flat surface in any orientation and fixed by the four screws.There are four mounting holes of a dimension of 5x7 mm in housing of the driver. Ensure that installation place is enough ventilated. - Page 7 To connect ArcPixes CE 1. Disconnect ArcPixel Power-CE from mains. 2. Connect ArcPixes (with ferrites as described above) to the ArcPixel Power-CE. Max load per ouput is 100 ArcPixes. Connect the termination box ArcPix to each ArcPix line. If you use Artnet for control of the ArcPixel Power-CE, you can connect ArcPixes to all LED outputs 1-4.
- Page 8 (In this case, one UART from four available UARTs is used for DMX input and remaining three UARTs can be used for LED outputs only. LED output load is the same as in a case of the control by Artnet - max 100 LED modules per LED output, but max.
-
Page 9: Connecting Arcdots
4.4. Connecting ArcDots-CE (ArcSource Outdoor 4MC Pixel-CE , ArcDotFlashes-CE) Connect ArcDots to the LED outputs of the ArcPixel Power-CE. The ArcDots can be interconnected directly or by using T- connectors - see the picture below. If you use Artnet for control of the ArcPixel Power-CE, you can connect ArcDots to all LED outputs 1-4. - Page 10 In case that some ArcDot has been changed, the same address as had original ArcDot is assigned to it by the ArcPixel Power-CE. It is very important to save ArcDots configuration at every change of an ArcDot. (Menu "Dots" -> "Store Config"), Max.
-
Page 11: Arcpix Power - Dmx Protocols
5. ArcPixel Power-CE - DMX protocols ArcDot-CE/ ArcSource Outdoor 4MC Pixel -CE version 1.1 RGBW RGBW* Type of mode=Off mode=On Value Function control (Channel) (Channel) ArcDot 1/ ArcSource Outdoor 4MC Pixel 1 0-255 Red LED saturation control (0-100%) proportional Green 0-255 Green LED saturation control (0-100%) proportional... - Page 12 ArcPix-CE version 1.0 Channel Value Function Type of control ArcPix 1 0-255 Red LED saturation control (0-100%) proportional Green 0-255 Green LED saturation control (0-100%) proportional Blue 0-255 Blue LED saturation control (0-100%) proportional ArcPix 2 0-255 Red LED saturation control (0-100%) proportional Green 0-255...
- Page 13 ArcDotFlash-CE version 1.0 Channel Type of control Value Function ArcDotFlash 1 Light Intensity 0-127 Intensity (0-100%) proportional proportional 128-191 Synchronic strobe (from slow to fast) 192-254 Random strobe step Closed step ArcDotFlash 2 Light Intensity proportional 0-127 Intensity (0-100%) proportional 128-191 Synchronic strobe (from slow to fast) 192-254...
-
Page 14: Control Menu Map
6. Control menu map Default settings=Bold print Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7 DMX Addr Set DMX 0001-0512 Address IP Address Default Address Set Address Custom Address IP Adr 1 0-255 IP Adr 2 0-255 IP Adr 3 0-255... -
Page 15: Control Menu
7.Control menu The control panel situated on the top cover of the ArcPixel Power-CE allows fixture addressing and set the driver´s behaviour. Control elements: [ENTER] button- enters menu,confirms adjusted values and leaves menu. [UP] button and[DOWN] button- moves between menu items on the the same level, sets values. [ESCAPE] button- leaves the menu without saving value. -
Page 16: Dots (Arcdot/Arcpix Settings)
7.3 Dots (ArcDot/ArcPix settings) Use this menu to prepare LED module for operation in desired matrix. Search Dots - this function checks all LED modules connected to the fixture and the message “Done” with the number of found LED modules is displayed after finishing the procedure. Example: Dots: 25 Search/Done... -
Page 17: Personality
Order Mode - the menu allows to select a method how LED modules will be assigned to the Artnet Universe. Order Compact - All LED modules will be assigned to the Universe at the first LED output. After filling this Universe, the rest of LED modules will be assigned to the Universe at the LED output 2. Order Universe - LED modules output will be assigned to different Universes. - Page 18 1.Installation of the Software Uploader file (DSU_device name_time identifier): 1. The Software Uploader file for is available from the ANOLIS web site at WWW.anolis.cz. 2. Make a new directory ( e.g. ANOLIS_Uploader) on your hard disk and download the software to it.
-
Page 19: Incorporation Of New Dots (After Replacing Faulty Dots)
8. Incorporation of new dots (after replacing faulty dots) In case that some faulty dots have been replaced with the new dots, the following error message will appear after switching the fixture on: "Ch. 1 Cfg Mismatch" - it means new dots at LED output 1 "Ch. - Page 20 3. Press the [ENTER] to go back to the menu "New Dot" and select dot 1 and press the [ENTER] to enter the menu "Miss Dot". The Dot 1 starts flashing in green and by means of items Sel 1, Sel 2 select the following colour combination of dots when the blue dot will be after dot 1-picture (5).
- Page 21 6. Select the dot 10 and press the [ENTER] to enter menu "Miss Dot".The Dot 10 starts flashing in green (picture (11) and by means of items Sel 1, Sel 2, Sel 3 select the following colour combination of dots when the blue dot will be after dot 10-picture (12).
-
Page 22: Arcpixel Power Web Manager
10. Press the [ENTER] to go back to the menu "New Dot and using items Sel 1, Sel 2, Sel 3 you can see incor- porated dots -picture (17), (18), (19). you can see correct combination of pixels red, green, blue. 10. - Page 23 Tab DOTS Tab SETTINGS Tab TOOLS...
-
Page 24: Technical Specifications
10.Technical Specifications Power supply Input voltage: 100-240 V AC, 50-60 Hz Fuse: T 8A H 250V ~ Max. pover consumption:640W (power factor=0.98) Control and programming Protocols: USITT DMX-512, Artnet 2 row LED display 4 control buttons Output Max.Output Voltage: 50V DC ArcPix output: 4 x Sauro CGF 050M5, (panel terminal board, female) &... - Page 25 Operating temperature -10°C/+40°C Dimensions(mm) Weight 3.4 kg Accessories 1 x Power cord IEC C13 4 x Screw terminál board Sauro CGM 050 M5 Items needed for installation (quantity depends on size and type of installation) (P/N 1305 2023) Connection cable, 2m (P/N 1305 2024) Connection cable, 4m (P/N 1006 2330) Active Terminator for ArcDot (P/N 1006 2331) Passive Terminator for ArcDot...
