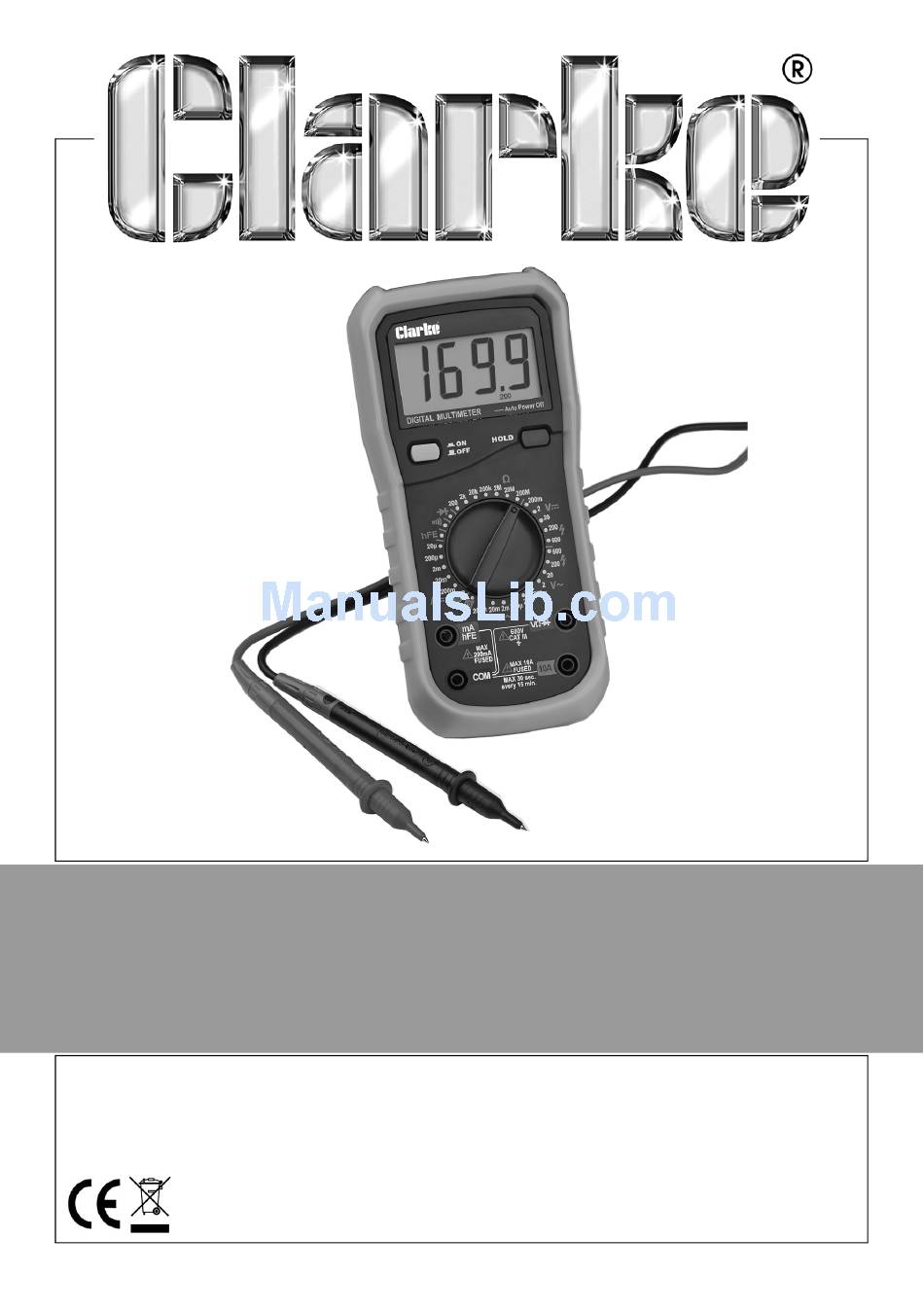

Page 1: Digital Multimeter
DIGITAL MULTIMETER MODEL NO: CDM35C PART NO: 4501150 OPERATING INSTRUCTIONS GC0415... -
Page 2: Environmental Recycling Policy
INTRODUCTION Thank you for purchasing this CLARKE product. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: Safety Information
SAFETY INFORMATION WARNING: TAKE CARE WHEN USING THIS METER. IMPROPER USE CAN RESULT IN ELECTRIC SHOCK OR DAMAGE TO THE METER. TAKE ALL NORMAL SAFETY PRECAUTIONS AND FOLLOW THE SAFEGUARDS SUGGESTED IN THIS MANUAl. BEFORE USE 1. When using the meter, the user must observe all normal safety rules concerning: •... -
Page 4: Specifications
12. Do not store or use the meter in areas exposed to direct sunlight, at high temperature or with high relative humidity. 13. To avoid false readings, replace the batteries as soon as the Low Battery indicator appears. 14. Before use, verify the meter operation by measuring a known voltage. 15. -
Page 5: Features Of The Meter
FEATURES OF THE METER Feature Description/Use Display Digital LCD Power Button Power ON/OFF. Data Hold Press the HOLD button. The LCD will hold the last Button reading measured and display the H symbol. When the button is released, the meter will return to normal. Rotary Switch Selects different functions and range The four input sockets are used as follows:... -
Page 6: Measurement Features Of The Meter
MEASUREMENT FEATURES OF THE METER • Alternating voltage measurement:- V~ • Direct voltage measurement:- V= • Alternating current measurement:- A= • Direct current measurement:- A= Ω • Resistance measurement:- • Diode measurement:- • Continuity:- • Frequency measurement:- Hz • Transistor gain:- hFE ITEMS SUPPLIED •... -
Page 7: Operation
OPERATION Before taking the measurement of voltage with the probe, make sure there is no electronic device connected to the test socket of the instrument. PREPARATION 1. Switch on the power by turning the rotary switch. If the battery voltage is lower than 7V, the "... -
Page 8: Dc/Ac Current Measurement
NOTE: When "l " is shown on the LCD, it means the measurement has exceeded the allowable range. A higher range should be selected. NOTE: When the scale of the value to be measured is unknown, select the highest range first and lower the range accordingly. DC/AC CURRENT MEASUREMENT WARNING: USE CAUTION WHEN MEASURING HIGH VOLTAGE CIRCUITS TO AVOID ELECTRICAL SHOCK AND INJURY. -
Page 9: Transistor Gain
Ω 7. Set the rotary switch to the “ " position and at the proper range. 8. Connect the test leads to the ends of the resistor or circuit. 9. Read the value on the LCD. NOTE: When the input is open," 1 " is displayed on the LCD to indicate overload. - Page 10 2. Set the rotary switch to the "hFE" position and at the correct range. 3. Determine if the transistor to be tested is either and NPN or PNP type, then insert the three pins of the transistor into the corresponding holes of the multifunction socket.
-
Page 11: Technical Specifications
TECHNICAL SPECIFICATIONS DC VOLTAGE Range Resolution Accuracy µ 200mV ± 0.5% of reading, + 2 digits 10mV 200V 100mV 600V ± 0.8% of reading, + 2 digits • Max input voltage: 250V DC at 200mV range, 600V DC elsewhere. Ω •... - Page 12 DC CURRENT Range Resolution Accuracy 20µA 0.01µA ± 2.0% of reading, + 5 digits 200µA 0.1µA ± 0.8% of reading, +1 digit 1µA 20mA 10µA 200mA 100µA ± 1.5% of reading, +1 digit 10mA ± 2% of reading, + 5 digits •...
-
Page 13: Diode Test
RESISTANCE Range Resolution Accuracy Ω Ω ± 0.8% of reading, + 3 digits Ω Ω Ω Ω ± 0.8% of reading, + 2 digits Ω Ω 200k Ω Ω Ω Ω ± 1.0% of reading, + 2 digits Ω Ω ±... -
Page 14: Maintenance
4. Clip the battery compartment to the casing and tighten the screw. REPLACING FUSES Fuses rarely need replacement. Almost all fuse blows are the result of operator error. Fuses should be replaced by your Clarke Service Department using the type(s) stated on page 4. TEST LEAD REPLACEMENT WARNING: REPLACE THE TEST LEADS WITH IDENTICAL OR COMPATIBLE LEADS. -
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
