Zoom iQ7 Operation Manual

200M®-
iQ7
Made for
~
iPod 1:1 iPhone
D
iPad
OPERATION MANUAL
© 2014 ZOOM CORPORATION
Copying or reproduction of this document in whole or in part without permission is prohibited.

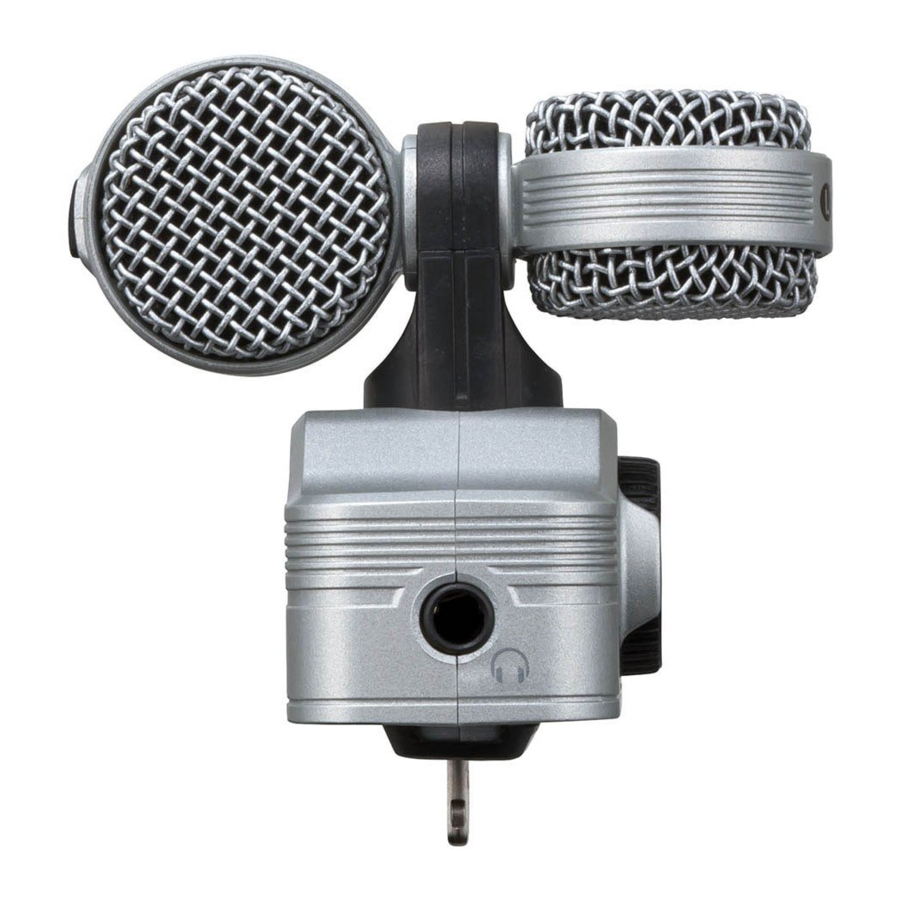

Thank you very much for purchasing the ZOOM
iQ7.
The
iQ7
has the following features.
• High quality mic that connects with iPhones, iPods and iPads
This stereo microphone can be connected to an iPhone (5 or later). iPod touch (5th
generation), iPad (4th generation), iPad Air or iPad mini and used with an application that
supports mic input to record high-quality audio.
Note: In this manual, we refer to all of these devices as "the connected device" or "the iOS device:·
• Stereo width control using mid-side mics
The mid-side (M-S) stereo mic design has a directional mid mic that covers the front
and a bidirectional side mic that covers the sides. By adjusting the level of the side mic
signal you can change the stereo width of the sound as you like.
•Two modes: audio and video
Use the audio position when pointing the connected device like a mic toward the sound
you are recording. Use the video position when recording with the connected device's
camera.
• High-performance app for use with the mic
Download the free application from the App Store and use it with the
iQ7
to, for
example, set the recording format, edit audio files and apply various effects.
• Audio monitoring without latency (only when using the ZOOM
Handy Recorder app)
Using latency-free direct monitoring, the audio input through the
iQ7
can be output
directly from the stereo mini jack without passing through the connected iOS device.
• Hardware controls for adjusting recording
Use the
iQ7
dial and switches to adjust the recording gain and stereo width.
• Usable even with devices in cases
By removing the included case adjuster, you can connect this mic to a device even when
it is in a case.
( Specifications )
~I'Vl!Pt(lp!l<:\rle
I
Type Mid-side IM-S) stereo mic 190°/120°/M-SI
I
15th generation),
mini3
(],§99-a-nd
Safety-Precautions )
SAFETY PRECAUTIONS
In this manual. symbols are used to highlight warnings and cautions that you must read to prevent accidents.
The meanings of these symbols are as follows:
~
Something that could cause serious injury or death.
W•rn1ng
&
Something that could cause injury or damage to the equipment.
C•ution
Other symbols
8
Required (mandatory) actions
N_
Prohibited actions
&
Warning
I
Alterations
IS)
Never open the case or attempt to modify the product.
c=
&
Precautions
I
Product handling
8
Do not drop, bump or apply excessive force to the unit.
Be careful not to allow foreign objects or liquids to enter the unit.
Operating environment
~
Do not use in extremely high or low temperatures.
Do not use near heaters, stoves and other heat sources.
Do not use in very high humidity or near splashing water.
Do not use in places with excessive vibrations.
Do not use in places with excessive dust or sand.
Precaution when using the connectors
Q
Before moving the device, always disconnect all the connectors.
Usage Precautions
Interference with other electrical equipment
In consideration of safety, the iQ7 has been designed to minimize the emission of electromagnetic ra-
diation from the device and to minimize external electromagnetic interference. However, equipment that is
very susceptible to interference or that emits powerful electromagnetic waves could result in interference
if placed nearby. If this occurs, place the
IQ7
and the other device farther apart.
With any type of electronic device that uses digital control, including the
iQ7.
electromagnetic interference
could cause malfunction, corrupt or destroy data and result in other unexpected trouble. Always use caution.
Cleaning Use a soft cloth to clean the panels of the unit if they become dirty. If necessary, use a damp cloth that has
been wrung out well. Never use abrasive cleansers, wax or solvents, including alcohol, benzene and paint thinner.
Malfunction If a malfunction or something unexpected occurs, disconnect the iQ7 and connection cables
as soon as possible. Contact the store where you bought the unit or ZOOM service with the following informa-
tion: product model, serial number and specific symptoms of failure or malfunction, along with your name,
address and telephone number.
Copyrights
• iPad, iPhone, iPod and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad
Air, iPad mini, and Lightning are trademarks of Apple Inc.
• All other trademarks. product names and company names mentioned in this documentation are the property
of their respective owners.
Note: All trademarks and registered trademarks mentioned in this manual are for identification purposes only
and are not intended to infringe on the copyrights of their respective owners.
• Recording for any purpose other than personal use from copyrighted sources, including CDs, records, tapes,
live performances, video works and broadcasts, without permission of the copyright holder is prohibited by law.
Zoom Corporation will not assume any responsibility related to infringements of copyrights.
""Made for iPod'; "M.ade for iPhone'; and "Made for iPad" mean that an electronic accessory has been designed
to connect specifically to iPod, iPhone, or iPad, respectively and has been certified by the developer to meet
Apple performance standards. Apple is not responsible for the operation of this device or its compliance with
safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone. or iPad may affect
wireless performance.
FCC regulation warning (for U.S.A.)
~ This equipment has been tested and found to comply with the limits for a Class 8 digital device, pursuant to part
~
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interfer-
ence to radio or television reception, which can be determined by turn-ing the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio{TV technician for help.
Declaration of Conformity This product
compiles
with
the requir~ments of EMC Directive 2004/108/EC
and Low
c
f:
Voltage Otrecttve 2006/95/EC and ErP Dtrecttve 2009/125/EC and RoHS Dtrecttve 2011/65/EU
~
&
