36v Hedge Trimmer
Please read and retain these instructions for future reference
Technical Detail
Model
Rated Voltage
Cutting Thickness
Cutting Length
Battery type
Weight
Charger:
Noise Pressure Level LpA
(EN ISO 3744:1995)
Vibration (EN 60745-2-15)

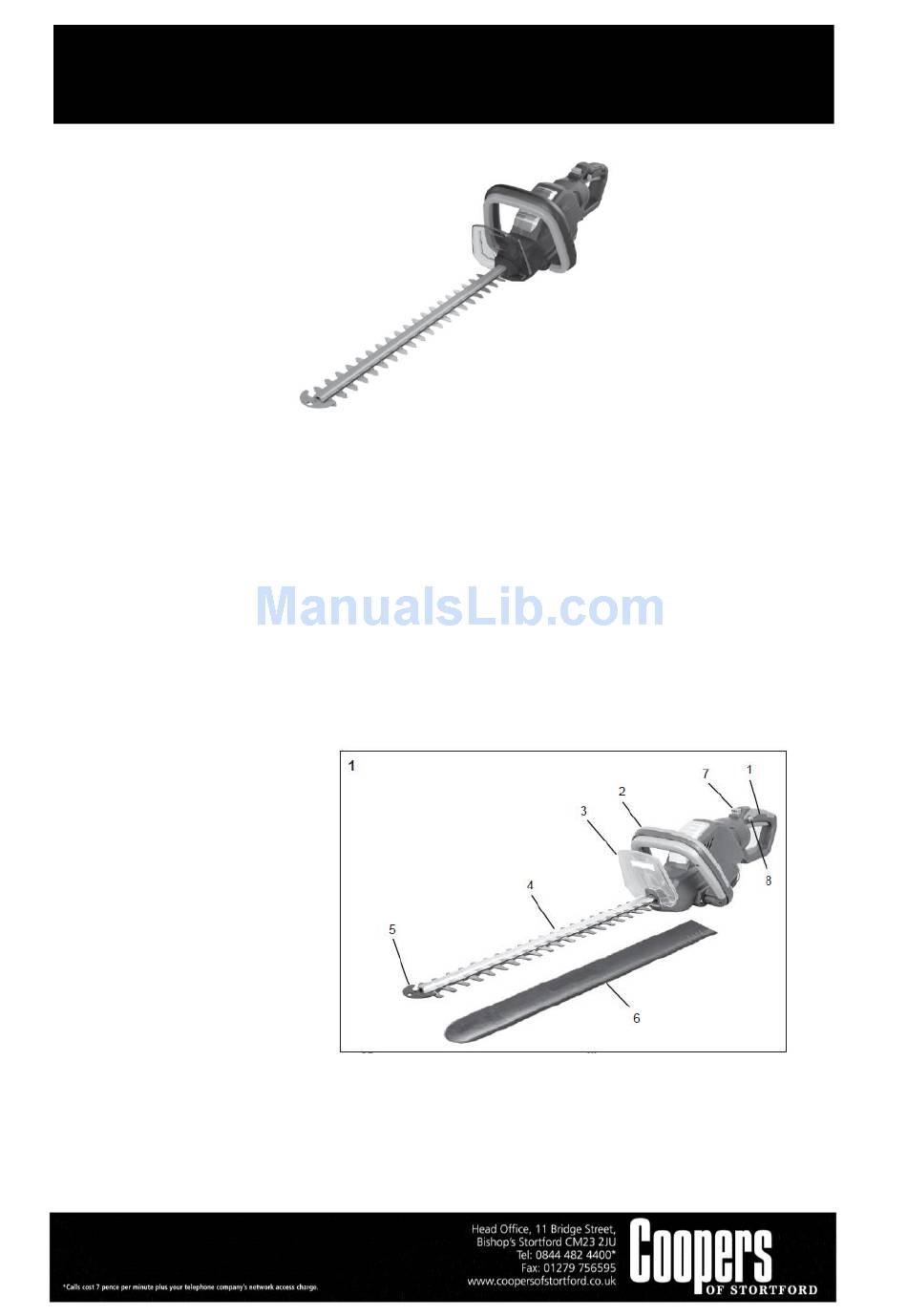

PARTS
1. Rear handle with
ON/OFF switch
2. Wrap-around handle
with ON/OFF switch
3. Hand guard
4. Blade safety rail
5. Impact protector
6. Protective blade cover
7. Turning handle lock
8. On-switch lock
10681
GT28001-4/ELR01-R3-540-18
36V D.C.
18mm
540mm
Li-ion 36V/2.5 Ah/90 Wh (not included)
Available separately under Coopers' item code no. 10683
3.2kg
Not included Available under Coopers' item code no. 10682
86dB(A) K3.0 dB
2
s2
<2.5m/s
K 1.5 m/
Instructions for Use
v001: 07/11/16
Advertisement
Related Manuals for Coopers GT28001-4/ELR01-R3-540-18
Summary of Contents for Coopers GT28001-4/ELR01-R3-540-18
- Page 1 Li-ion 36V/2.5 Ah/90 Wh (not included) Available separately under Coopers’ item code no. 10683 Weight 3.2kg Charger: Not included Available under Coopers’ item code no. 10682 Noise Pressure Level LpA (EN ISO 3744:1995) 86dB(A) K3.0 dB Vibration (EN 60745-2-15) <2.5m/s K 1.5 m/...
-
Page 2: Safety Instructions
THAT THE POWER CORD IS NOT KINKED OR STORED IN A TWISTED MANNER, AND THAT YOU REGULARLY CHECK ITS CONDITION. THE USE OF ANY ACCESSORY ATTACHMENTS NOT RECOMMENDED BY COOPERS OF STORTFORD MAY CAUSE INJURIES AND INVALIDATE ANY WARRANTY YOU MAY HAVE. ... - Page 3 36v Hedge Trimmer Instructions for Use 10681 Please read and retain these instructions for future reference v001: 07/11/16 quiet times and limit working time to the absolute minimum. You and other persons in the area where the trimmer is being used should wear suitable hearing protection. Noise emission information in accordance with the EC Machine Directive: the noise pressure level at the place of work can exceed 80 dB(A).
- Page 4 36v Hedge Trimmer Instructions for Use 10681 Please read and retain these instructions for future reference v001: 07/11/16 Explanation of the Warning Instructions on the Machine 1. Wear protection for eyes and ears! 2. Caution! 3. Read instructions for use! 4.
- Page 5 36v Hedge Trimmer Instructions for Use 10681 Please read and retain these instructions for future reference v001: 07/11/16 c) Keep the tool out of the rain. The penetration of water into a power tool increases the risk of electric shock. d) Use with an RCD adaptor.
- Page 6 36v Hedge Trimmer Instructions for Use 10681 Please read and retain these instructions for future reference v001: 07/11/16 g) Use power tools, accessories, add-on tools, etc. in accordance with these instructions and in the way prescribed for the respective type of tool. You should also consider the working conditions and the work to be carried out.
- Page 7 36v Hedge Trimmer Instructions for Use 10681 Please read and retain these instructions for future reference v001: 07/11/16 Start the hedge trimmer. Never switch the hedge trimmer on if the hand guard is missing. Always ensure that the handles and safety guard are in place. The hedge trimmer must not be used if any part is missing or has been modified.
- Page 8 36v Hedge Trimmer Instructions for Use 10681 Please read and retain these instructions for future reference v001: 07/11/16 12. Never disassemble the battery or attempt to modify it in any way. The battery is fitted with a number of safety devices. Damage to any of these safety devices can lead to overheating, explosion or spontaneous ignition of the battery.
- Page 9 36v Hedge Trimmer Instructions for Use 10681 Please read and retain these instructions for future reference v001: 07/11/16 Inserting/removing the battery (fig 4. and 5) Press the battery release buttons to remove the battery from the hedge trimmer. The charged battery can be inserted into the battery mounting on the hedge trimmer with a light press.
- Page 10 36v Hedge Trimmer Instructions for Use 10681 Please read and retain these instructions for future reference v001: 07/11/16 Switching the hedge shears on/off (fig. 6) Before switching on: remove the blade guard. Insert the battery. When switching the hedge shears on, stand safely. Hold the hedge trimmers with both hands on the respective handles.
- Page 11 36v Hedge Trimmer Instructions for Use 10681 Please read and retain these instructions for future reference v001: 07/11/16 Adjusting the turning handle (Fig. 7) The hedge trimmers are equipped with a turning rear handle that can be set in 5 different position [right (90°), left (90 °) and normal (0 °)].
- Page 12 36v Hedge Trimmer Instructions for Use 10681 Please read and retain these instructions for future reference v001: 07/11/16 Cut evenly over this guide line. Take care to have a secure and safe standing position when working with your hedge shears in order to avoid slipping and injury.
- Page 13 36v Hedge Trimmer Instructions for Use 10681 Please read and retain these instructions for future reference v001: 07/11/16 PLUG WIRING (UK & IRELAND) This appliance is fitted with a BS 1363 13-amp plug. If you have to replace the fuse, only those that are ASTA or BSI approved to BS1362 and with a rated current of 13-amps should be used.
- Page 14 36v Hedge Trimmer Instructions for Use 10681 Please read and retain these instructions for future reference v001: 07/11/16 DISPOSAL • Dispose of all packaging, paper, cartons and plastic, plastic bags in accordance with your local recycling regulations. At the end of the product’s lifespan please dispose of it at an authorised household WEEE •...
- Page 15 Instructions for Use Hedge Trimmer Battery Charger 10682 Please read and retain these instructions for future reference v001: 14/11/16 Product Details: Battery Charger R3-360-1A-02 Normal Charger Mains Voltage 100-240V/50-60Hz Charging voltage Charging current 0.65A Input power Protection class Charging time Approx.
- Page 16 Instructions for Use Hedge Trimmer Battery Charger 10682 Please read and retain these instructions for future reference v001: 14/11/16 Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
- Page 17 THAT THE POWER CORD IS NOT KINKED OR STORED IN A TWISTED MANNER, AND THAT YOU REGULARLY CHECK ITS CONDITION. THE USE OF ANY ACCESSORY ATTACHMENTS NOT RECOMMENDED BY COOPERS OF STORTFORD MAY CAUSE INJURIES AND INVALIDATE ANY WARRANTY YOU MAY HAVE.
- Page 18 Instructions for Use Hedge Trimmer Battery Charger 10682 Please read and retain these instructions for future reference v001: 14/11/16 DO NOT LET CORD HANG OVER THE EDGE OF A TABLE OR COUNTER, OR TOUCH HOT SURFACES. DO NOT PLACE ON OR NEAR HEAT SOURCES. ...
-
Page 19: Care And Cleaning Instructions
Instructions for Use Hedge Trimmer Battery Charger 10682 Please read and retain these instructions for future reference v001: 14/11/16 GREEN & YELLOW EARTH The diagram below shows the key features of a correctly wired three-pin mains plug. Note: Double insulated appliances do not need the green &... - Page 20 Instructions for Use Hedge Trimmer Battery 10683 Please read and retain these instructions for future reference v001: 14/11/16 Product Details: Battery R3-360-AH-U-02 (Lithium ion) Battery voltage/operation voltage Battery capacity 2.5 Ah Battery power 100 Wh Weight 0.685 kg The Hedge Trimmer Battery is for use in conjunction with 36v hedge trimmer –...
- Page 21 Instructions for Use Hedge Trimmer Battery 10683 Please read and retain these instructions for future reference v001: 14/11/16 • Never charge the battery in an environment with acids and easily flammable materials. • Protect the battery from heat and fire. •...
