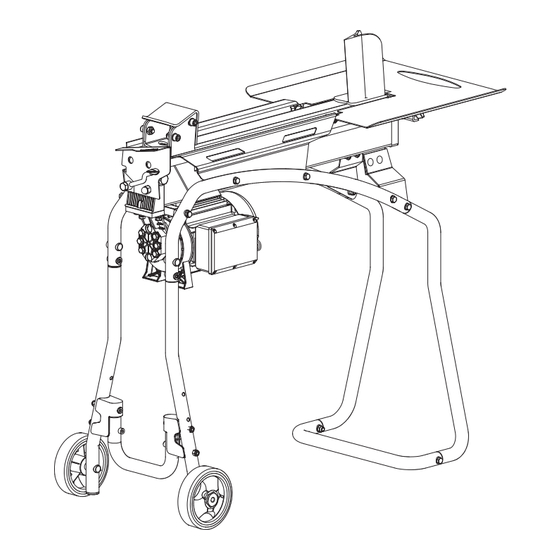

Electric Log Splitter
Operator's Manual
MODEL NUMBER
YS0552
SERIAL NUMBER
PURCHASE DATE
Both model number and serial
number may be found on the
main label. You should record
both of them in a safe place for
future use.
FOR YOUR SAFETY
READ AND UNDERSTAND THE ENTIRE MANUAL BEFORE OPERATING MACHINE
Tame the Great Outdoors
TM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for YARDMAX YS0552
Summary of Contents for YARDMAX YS0552
- Page 1 Save This Manual for Future Reference Electric Log Splitter Operator’s Manual MODEL NUMBER YS0552 SERIAL NUMBER PURCHASE DATE Both model number and serial number may be found on the main label. You should record both of them in a safe place for future use.
-
Page 2: Table Of Contents
Up for the job? YARDMAX is. disposed of in an environmentally safe way. When looking for outdoor power equipment (OPE) to get the job done right, at the right price, YARDMAX delivers Have questions about your YARDMAX equipment? the perfect combination of performance and practicality. -
Page 3: Specifications
SPECIFICATIONS SAFETY KNOW YOUR LOG SPLITTER Item no. YS0552 Read this manual and all labels to understand your YARDMAX log WARNING! Stay of clear of all moving parts! Motor 120V~ 60Hz 15A, 1.75HP splitter and its limitations and potential hazards. -
Page 4: Contents Supplied
Your YARDMAX log splitter comes partially assembled and contains the following: To assemble your YARDMAX log splitter, you will need a 6mm hex hand socket or allen wrench, 13mm wrench, and pliers. 1. Line up the holes in the rear support legs with the holes in the 3. -
Page 5: Know Your Machine
Electric Log Splitter Operator’s Manual » KnOW YOUR MACHInE FEATURES AND CONTROLS 5. Insert the log tray table and make sure the bolts hold the table. (See Figure 5) Log Ram Log Retaining Plates Work Table Control Lever Guard Wedge Motor Log Tray Table Control box... -
Page 6: Operation
STAKE ON LEVEL GROUND If the log does not begin to split after 5 seconds To secure your YARDMAX log splitter, use two bolts or stakes of operation, release both controls. The motor or on level ground. Due to varying ground surfaces, these are not hydraulic fluid may overheat and damage your included. -
Page 7: Freeing A Jammed Log
SHARPEnInG THE WEDGE Over time your YARDMAX log splitter wedge will dull. If you notice decreased performance, we recommend sharpening the wedge using a fine-toothed file, smoothing any burrs or crushed areas along the cutting edge. For questions about sharpening the wedge, call us at 844-YARDMAX. -
Page 8: Troubleshooting
3. Refer to Sharpening the Wedge section to 4. Oil leaks. sharpen the cutting edge. 5. Adjustment was made on max 4. Locate leak(s) and contact YARDMAX. pressure limiting screw. 5. Contact YARDMAX. Log ram moves Check oil level for possible oil refilling. -
Page 9: Parts List
Electric Log Splitter Operator’s Manual » PARTS LIST Description QTY. Description QTY. Gear Housing Plate Waterproof Underlay Description QTY. Description QTY. Lever Mount nut Frame Tube Circlip 10 Motor Support Left Shoe Cap nut M10 Lead Plank 1 - Left Gear Shaft Motor Support Right Shoe Lever... - Page 10 Electric Log Splitter Operator’s Manual »...
