Save This Manual for Future Reference

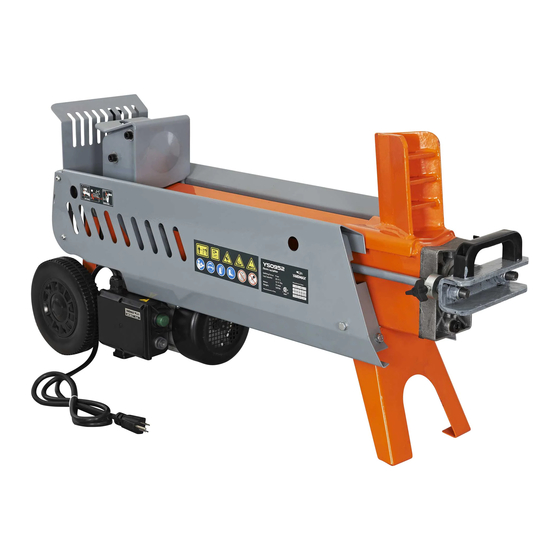

Electric Log Splitter
Operator's Manual
MODEL NUMBER
YS0952
SERIAL NUMBER
PURCHASE DATE
Both model number and serial
number may be found on the
main label. You should record
both of them in a safe place for
future use.
FOR YOUR SAFETY
READ AND UNDERSTAND THE ENTIRE MANUAL BEFORE OPERATING MACHINE
Tame the Great Outdoors
®
Advertisement
Table of Contents
Related Manuals for YARDMAX YS0952
Summary of Contents for YARDMAX YS0952
- Page 1 Save This Manual for Future Reference Electric Log Splitter Operator’s Manual MODEL NUMBER YS0952 SERIAL NUMBER PURCHASE DATE Both model number and serial number may be found on the main label. You should record both of them in a safe place for future use.
-
Page 2: Table Of Contents
Up for the job? YARDMAX is. When looking for outdoor power equipment (OPE) to get the job done right, at the right price, YARDMAX delivers the perfect combination of performance and practicality. YARDMAX has a solution that’s right for you. -
Page 3: Introduction
Have questions about your YARDMAX equipment? ENVIRONMENTAL Call us at 847-327-0566 or 844-YARDMAX, email us at support@yardmax.com, or contact us via your Recycle unwanted materials instead of disposing of favorite social media site. them as waste. All tools, hoses, and packaging should be resorted, taken to the local recycling center and disposed of in an environmentally safe way. -
Page 4: Specifications
SPECIFICATIONS Model Number YS0952 Splitting Force 9 ton (+/- 10%)* Log Capacity 20.5" L x 12.6" dia. Wedge Size 6" Hydraulic Capacity 1.72 gal Forward: 7s – 16s Cylinder Cycle Time Reverse: 7s Wheel size 8" Motor 15 amp Product Weight... -
Page 5: Safety
Operator’s Manual » SAFETY KNOW YOUR LOG SPLITTER Read this manual and all labels to understand your YARDMAX log WARNING! Stay of clear of all moving parts! splitter and its limitations and potential hazards. DRUGS, ALCOHOL, AND MEDICATION INSPECT YOUR LOG Do not operate your log splitter while under the influence of Make sure there are no nails or foreign objects in logs to be split. -
Page 6: Contents Supplied
CONTENTS SUPPLIED Your YARDMAX log splitter comes completely assembled and contains the following: 1. Log Splitter 2. Operator’s Manual Contents Supplied YS0952PM00 - 2002... -
Page 7: Know Your Machine
Electric Log Splitter Operator’s Manual » KNOW YOUR MACHINE FEATURES AND CONTROLS Log Pusher Work Table Control Lever Guard Wedge Log Retaining Plates Lift Handle Wheels for Minor Moving ONLY Switch Box Support Leg Switch Motor Hydraulic Control Lever Bleed Screw Oil Drain Bolt w/ Dipstick BLEED SCREW Before operating your log splitter, loosen the bleed... -
Page 8: Operation
MAX PRESSURE LIMITING SCREW Max pressure was preset at the factory by a qualified Max Pressure mechanic using professional tools. Limiting Screw Unauthorized resetting will prevent the hydraulic pump from providing enough splitting pressure or RESULT IN SERIOUS INJURY AS WELL AS DAMAGE TO THE MACHINE. - Page 9 Electric Log Splitter Operator’s Manual » 2-STAGE CONTROL Do not put any logs on the log splitter at this stage. 2. Loosen the handwheel on the return stop. POSITION 1 POSITION 2 3. Slide the stop to the desired position, moving the stop toward the splitter to shorten the stroke.
-
Page 10: Freeing A Jammed Log
FREEING A JAMMED LOG Release both controls. After the log ram moves back to its starting position and completely stops, insert a wood wedge under the jammed log. Never try to knock a jammed log off the splitter with your hand or another object. This could damage the tool or cause the log to fly up and hit someone. -
Page 11: Replacing Hydraulic Oil
1.72 gallon (7 qt) of fresh hydraulic oil. Replace the hydraulic oil in your YARDMAX log splitter after every 150 hours of use. Follow these steps to replace it: Make sure all moving parts stop and the log splitter is unplugged. -
Page 12: Sharpening The Wedge
SHARPENING THE WEDGE Over time your YARDMAX log splitter wedge will dull. If you notice decreased performance, we recommend sharpening the wedge using a fine-toothed file, smoothing any burrs or crushed areas along the cutting edge. For questions about sharpening the wedge, call us at 844-YARDMAX. -
Page 13: Troubleshooting
3. Wedge cutting edge is dull 3. Refer to Sharpening the Wedge section to sharpen the cutting edge 4. Oil leaks 4. Locate leak(s) and contact YARDMAX 5. Adjustment was made on max pressure limiting screw 5. Contact YARDMAX Log ram moves... -
Page 14: Parts Diagram
PARTS DIAGRAM Parts Diagram YS0952PM00 - 2002... -
Page 15: Parts List
Electric Log Splitter Operator’s Manual » PARTS LIST Description QTY. Description QTY. Hex. Bolt M8x20 Snap Washer 22 Moving Handle Washer 10x2 Washer 16 Valve Rod Nut M16 O-Ring 8.75x1.8 Copper Washer 12 Safety Valve Spring basis Safety Valve O-Ring 11.2x2.65 O-Ring 17x1.8 Safety Valve Spring Screw M10x8... - Page 16 Description QTY. Description QTY. Wheel Cover A Pin 8x24 Wheel Shaft Snap Ring A 16 Gear Housing Plate Wheel A Motor Support Shoe - Right Wheel Shaft Frame Motor Cover Nut M8 Motor Support Shoe - Left Nut M10 Seal FB11x26x7 Hex.
- Page 17 Electric Log Splitter Operator’s Manual » YS0952PM00 - 2002...
- Page 18 YS0952PM00 - 2002...
- Page 19 Electric Log Splitter Operator’s Manual » YS0952PM00 - 2002...
- Page 20 Tame the Great Outdoors ® 847-327-0566 or 844-YARDMAX info@yardmax.com...
