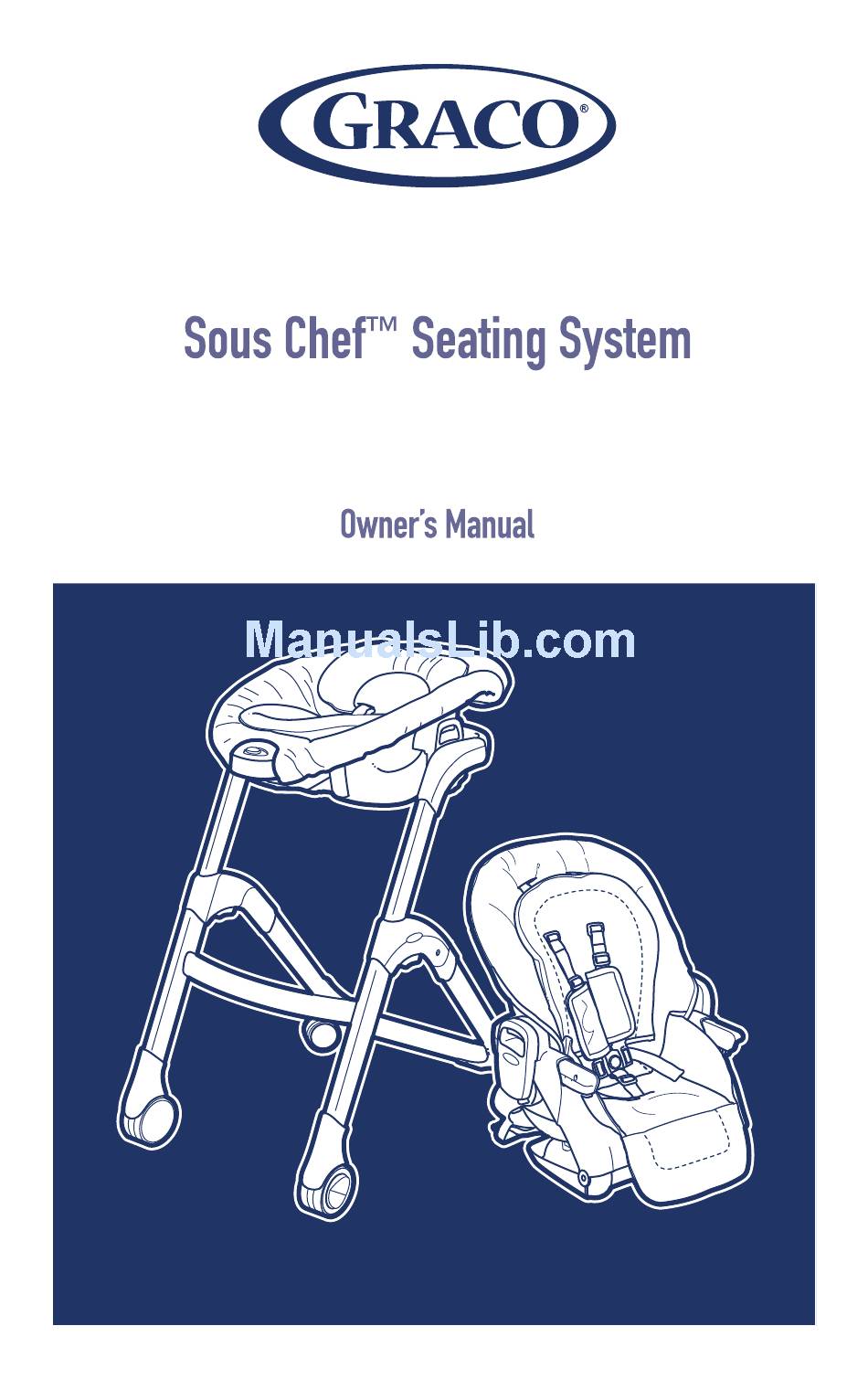

Graco SOUS CHEF Owner's Manual

Graco SOUS CHEF Owner's Manual

Seating system

Advertisement

PD286130G 5/15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOUS CHEF and is the answer not in the manual?

Questions and answers

Sharon
May 27, 2025

I’m having trouble attaching seat onto frame. Manual just says insert as shown. I can’t get it lined up. Should I be squeezing handles? I can get one side in but the not the other. I’m assuming they need to be inserted at the same time to make sure to keep the angle straight. Should I be tilting?

Subscribe to Our Youtube Channel

Summary of Contents for Graco SOUS CHEF

  • Page 1 PD286130G 5/15...
  • Page 2 1 WARNING 2 Features This product can be used in the following modes: Parts List 3 Assembly Attach Wheels to Highchair Frame Attach Toybar to Newborn Seat Attach Seat Pad 4 Use Frame Legs Newborn Seat Highchair Seat 4-D To Secure Child Booster Seat 5 Cleaning Care &...
  • Page 3 • DO NOT ADJUST the recline of lift high chair or booster seat product with your child in it. with child in it. • USE ONLY Sous Chef™ Seating • ALWAYS SECURE infant in the System accessories with this restraint system provided.
  • Page 4 BOOSTER SEAT: • PREVENT SERIOUS INJURY OR DEATH. Do not use in motor • WARNING: PREVENT SERIOUS vehicles. INJURY OR DEATH FROM • NEVER LEAVE CHILD SLIDING OUT, FALLS, OR UNATTENDED. TIPPING OVER. • NEVER allow a child to push •...
  • Page 5 30 inches (76 cm). PRODUCT should it become damaged or broken. • Only use a this seat with the Sous Chef™ Seating System. • Head support for use only with this product. • ALWAYS use harness provided. • SUFFOCATION HAZARD: •...
  • Page 6 FOR SAFE BATTERY USE: Keep the batteries out of children’s reach. Any battery may leak battery acid if mixed with a different battery type, if inserted incorrectly (put in backwards) or if all batteries are not replaced or recharged at the same time. Do not mix old and new batteries.
  • Page 7 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 8 2-A This product can be used in the following modes: Newborn Seat as Removable Rocker Newborn Seat in Highchair Booster Seat Infant Feeding Toddler (Highchair seat Recline Highchair attached to Chair)
  • Page 9 2-B Parts list This model may not include some features shown below. Check that you have all the parts for this model BEFORE assembling your product. If any parts are missing, call Customer Service. No tools required. ALL MODELS Styles may vary...
  • Page 10 3-A Attach Wheels to Highchair Frame 1. Insert rear wheels into holes in highchair frame as shown. 2. Attach front wheels to highchair frame as shown. CHECK that button is visible.
  • Page 11 3-B Attach Toybar to Newborn Seat WARNING • The toy bar is not a carry handle. Never use toy bar to lift or carry seat. Styles may vary 1. Attach toybar to Newborn Seat as shown.
  • Page 12 2. Attach toys to toybar as shown. 3-C Attach Seat Pad 1. Wrap seat pad over the top of the seat. 2. Make sure recline handle is sticking out the hole in the seat pad.
  • Page 13 4-A Frame Legs To Adjust Frame Legs 1. Press buttons in on both sides of frame and open legs. 2. Rotate rear leg away from front leg. Adjust Height 1. Squeeze buttons on each side of frame and lift or lower to desired height.
  • Page 14 Brakes 1. Press buttons on inside front wheels of highchair to LOCK/UNLOCK wheels.
  • Page 15 4-B Newborn Seat Attaching Reclined Seat to Frame WARNING DO NOT sit on frame when the seat is not attached. DO NOT USE frame as a foot stool. 1. Attach Newborn Seat to Frame as shown. SNAP!
  • Page 16 2. CHECK Newborn Seat is latched into place by pulling up on it. 3. To remove, squeeze buttons on side of newborn seat and lift up. To Use Vibration 1. Remove battery lid on vibration unit, with a key and insert 1-D (LR20-1.5V) battery in module.
  • Page 17 4-C Highchair Seat Opening Highchair Seat 1. Rotate calf support down as shown. DO NOT force calf support. Check that booster strap storage drawers are closed. 2. CHECK that arm snaps into back of calf support as shown. SNAP!
  • Page 18 Attaching Highchair Seat to Frame WARNING DO NOT sit on frame when the seat is not attached. DO NOT USE frame as a foot stool. 1. Attach Highchair seat to Frame as shown. SNAP! 2. CHECK seat is latched into place by pulling up on it.
  • Page 19 To Use Tray 1. Squeeze armrest latch button and slide armrests out to put in tray use position. SNAP! 2. To attach, squeeze tray adjustment handle on front of tray.
  • Page 20 3. To adjust tray, squeeze tray adjustment handle on front of tray and slide in desired position. 4. To remove, squeeze tray adjustment handle on front of tray and lift up from highchair.
  • Page 21 Tray Cover Dishwasher safe. 1. Attach tray cover by pushing it down on the tray. SNAP! 2. To remove pull up on the back of the tray.
  • Page 22 Foot Rest Foot Rest 1. Slide foot rest in the desired slot. 2. Press down on foot rest to lock into place.
  • Page 23 To Recline Highchair WARNING • DO NOT adjust the seat recline with the child in it. 1. Pull handle on back of seat and push down or pull up to adjust. There are 3 recline positions.
  • Page 24 4-D To Secure Child WARNING Falling Hazard: Always use the seat belt. 5 Point Harness 1. To open, press button on buckle to release the waist straps. 2. To close, slide shoulder strap connectors to waist straps and insert into buckle.
  • Page 25 3. Use slide adjuster at shoulder and waist for tighter adjustment. 3 Point Buckle 1. To convert to 3-pt harness.
  • Page 26 2. Use slide adjuster at waist for further adjustment.
  • Page 27 Harness Height Adjustment 1. To adjust harness height, slide body support up or down. 2. If body support is not attached, adjust by pulling slide adjusters.
  • Page 28 4-E Booster Seat 1. Remove foot rest by rotating the foot rest up and pull it away from the calf support. 2. Check that booster strap storage drawers are closed.
  • Page 29 3. Rotate calf support and booster support leg backwards, to put highchair seat in booster mode. DO NOT force booster support leg. 4. Note: If leg is locked and you can not pull leg backwards, push it fully forward into the calf support and then repeat step 3.
  • Page 30 Attaching Booster to Chair 1. Slide Booster strap storage open. 2. BE SURE that lip on storage drawers are inserted in channels in booster support arm. 3. Pull storage straps out.
  • Page 31 4. Place booster on a chair with no armrests and that has a back, ensuring that the straps are hanging freely. Make sure that there are no extra seat pads or cushions on the chair that you are using with the toddler booster.
  • Page 32 6. Wrap bottom straps around base of seat and secure clip under the seat. Tighten by pulling on the loose straps. CHECK to make sure toddler booster is securely attached by moving from side to side. SNAP! 7. Ensure the booster is attached correctly by pulling up on it.
  • Page 33 5-A Care and Maintenance • BEFORE EACH USE. Inspect the product for damaged hardware, loose joints, missing parts, or sharp edges. • DO NOT USE product if any parts are missing or broken. • DO NOT substitute parts. • TO CLEAN PRODUCT use only household soap and warm water.
  • Page 34 To Remove Head Support and Body Support from Newborn Seat 1. Open harness and slide harness covers off of straps. 2. Remove shoulder straps from head rest to remove. 3. Slide waist straps through body support as shown.
  • Page 35 4. Slide crotch strap through body support as shown. 5. Reverse steps to re-attach.
  • Page 36 To Remove Seat Pad from Newborn Seat 1. Disconnect elastic loops from hook on bottom of newborn seat. 2. Slide harness straps through seat pad. 3. Pull seat pad off of newborn seat.
  • Page 37 To Remove Body Support from Highchair 1. Open harness and slide harness covers off of straps. 2. Unwrap seat pad from seat back. 3. Push bottom set of harness strap mounts through back of seat.
  • Page 38 4. Push top set of harness strap mounts through back of seat. 5. Pull harness strap out through seat pad and body support and remove body support.
