Trademarks
FOXWELL is trademark of Shenzhen Foxwell Technology Co., Ltd.
All other marks are trademarks or registered trademarks of their respective holders.
Copyright Information
© 2013 Shenzhen Foxwell Technology Co., Ltd.
All rights reserved.
Disclaimer
The information, specifications and illustrations in this manual are based on the latest information
available at the time of printing.
Foxwell reserves the right to make changes at any time without notice.
Visit our website at:
www.foxwelltech.com
For Technical Assistance, send us email at
support@foxwelltech.com
1
NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Foxwell NT630 Pro
Summary of Contents for Foxwell NT630 Pro
- Page 1 Disclaimer The information, specifications and illustrations in this manual are based on the latest information available at the time of printing. Foxwell reserves the right to make changes at any time without notice. Visit our website at: www.foxwelltech.com For Technical Assistance, send us email at support@foxwelltech.com...
-
Page 2: One-Year Limited Warranty
The customer will be billed for any parts or labor charges not covered by this limited warranty. d) FOXWELL will repair the Product under the limited warranty within 30 days after receipt of the product. If FOXWELL cannot perform repairs covered under this limited warranty within 30 days,... - Page 3 OF THE PRODUCT OR ARISING FROM BREACH OF THE WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, STRICT TORT, OR ANY OTHER LEGAL OR EQUITABLE THEORY, EVEN IF FOXWELL KNEW OF THE LIKELIHOOD OF SUCH DAMAGES. FOXWELL SHALL NOT BE LIABLE FOR DELAY IN RENDERING SERVICE UNDER THE LIMITED WARRANTY, OR LOSS OF USE DURING THE PERIOD THAT THE PRODUCT IS BEING REPAIRED.
-
Page 4: Safety Information
Block drive wheels before testing with engine running. Put the transmission in park (for ● automatic transmission) or neutral (for manual transmission). And never leave a running engine unattended. Do not wear jewelry or loose fitting clothing when working on engine. ● NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... -
Page 5: Table Of Contents
......................19 IAGNOSTIC UNCTION ELECTION 4.3.1 Read Codes............................ 200 4.3.2 Erase Codes............................. 21 4.3.3 ECU Information..........................21 4.3.4 Live Data............................22 4.3.4.1 Complete Data List........................22 4.3.4.2 Custom Data List.......................... 24 4.3.5 Special Functions..........................26 NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... - Page 6 7.5 LCD K .............................. 50 EYPAD 7.6 T ............................51 NFORMATION 7.7 C ........................52 ONFIGURE HORTCUT 8 UPDATE................................52 8.1 R ........................... 53 EGISTER THE CANNER 8.2 U ..........................57 PDATE THE CANNER NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01...
-
Page 7: Using This Manual
IMPORTANT indicates a situation which, if not avoided, may result in damage to the test equipment or vehicle. Example: IMPORTANT Do not soak keypad as water might find its way into the scanner. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... -
Page 8: Introduction

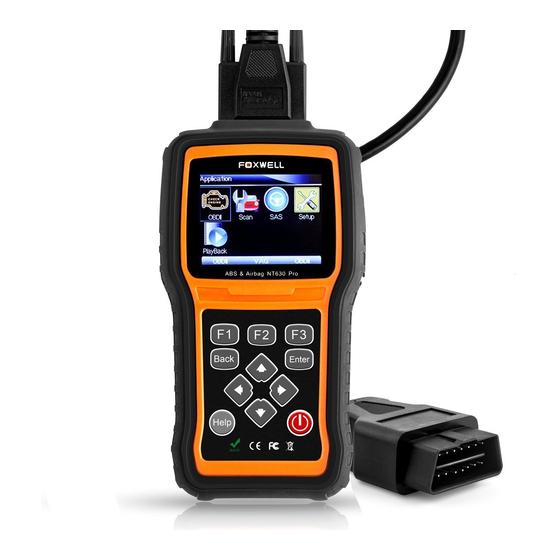

2 Introduction NT630 Pro Professional ABS & Airbag Reset Tool works on most vehicles on the road today. It does not only have extensive coverage of vehicles but also provides accurate and professional diagnosis of ABS and airbag faults. With the tool properly connected to the vehicle’s data link connector (DLC), you can use the scanner to read diagnostic trouble codes and view “live”... -
Page 9: Accessory Descriptions
3.1 Providing Power to Scanner Before using the scanner, make sure to provide power to the scanner. The unit operates on any of the following sources: 12-volt vehicle power ● NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... -
Page 10: Connecting To Vehicle Power
Setup – leads to screens for adjusting default settings to meet your own preference and view ● information about the scanner. Playback – leads to screens for access saved data files. ● Figure 3-1 Sample Home Screen NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... -
Page 11: Input Dialog Box
Figure 3-2 Sample Input Text Screen 2. Scroll with the arrow keys to highlight your desired letter or number and press the ENTER key to confirm. Figure 3-3 Sample Numeric Keyboard Screen NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... -
Page 12: Diagnostic Operations
If you have the application assigned to one of the function keys at the bottom of the screen, you can alternatively press the function key to start the application. Figure 4-1 Sample Application Menu NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... - Page 13 4. Select Vin acquisition from the menu, and press the ENTER key. Figure 4-4 Sample Vin Acquisition Screen 5. The scan tool starts to communicate with the vehicle and read the Vehicle Specification or VIN Code automatically. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01...
-
Page 14: Manual Vin Entry
To identify a vehicle by manual VIN entry: 1. Refer to Step 1-3 of 4.1.1 Automatic VIN Acquisition. 2. Select an appropriate option from the menu. A virtual keyboard opens for VIN entry. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... -
Page 15: Manual Vehicle Selection
The Vehicle Record option will not show if no record of previously identified vehicle is created. To create a vehicle record: 1. Identify the vehicle by any of the means above, and run an automatic system test by selecting Auto Scan. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... - Page 16 3. Enter a unique name for this vehicle and save it, and you will see this new vehicle in Vehicle Data Recorder menu. Figure 4-11 Sample Vehicle Record Screen To identify a previously tested vehicle: 1. Select Vehicle record and press the ENTER key to start. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01...
-
Page 17: System Selection
2. To pause the scan, press the function key corresponding with Pause on the screen. Figure 4-14 Sample Automatic system scan screen 3. At the end of successful automatic controller scan, a menu with a list of installed controllers together with their DTC overview displays. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... - Page 18 5. Select the system you would like to test, and press the ENTER key. When the scanner has established connection with the vehicle, the Function Menu displays. Figure 4-17 Sample Function Menu screen NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01...
-
Page 19: Control Unit
After a system is selected and the scanner establishes communication with the vehicle, the Function Menu displays. The menu options may include: Read Codes ● Erase Codes ● ECU Information ● Live Data ● Special Function ● NOTE NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... -
Page 20: Read Codes
Figure 4-21 Sample Code Screen 3. Press function key Save to store DTC information. Or use the BACK key to exit. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... -
Page 21: Erase Codes
ECU Information screen displays the identification data of the control module under test, such as the control module identification string and the control module coding. To read ECU information: 1. Select ECU Information from the menu and press the ENTER key. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... -
Page 22: Live Data
Complete Data List menu lets you view all live PID data from a selected system. To view all live PID data 1. Scroll with the arrow keys to highlight Live Data from the menu and press the ENTER key to display the live data menu. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... - Page 23 Press the function key One Graphic to display the PID graph. Figure 4-28 Sample PID graph Screen 4. Press the function key Two Graphics to display two PID graphs in one screen. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01...
-
Page 24: Custom Data List
Custom Data List menu lets you to minimize the number of PIDs on the data list and focus on any suspicious or symptom-specific data parameters. To create a custom data list: 1. Select Custom List from the menu and press the ENTER key. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... - Page 25 SELECT ALL and CLEAR ALL to select or deselect all items at once. 3. When finished selection, use the function key VIEW DATA to display selected items. Figure 4-33 Sample Datastream Screen NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01...
-
Page 26: Special Functions
Solenoid Tests – allows to manually control the inlet and output valve solenoids. ● NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... - Page 27 Not all function options listed above are applicable to all vehicles. Available options may vary by the year, model, and make of the test vehicle. A “The selected mode is not supported!” message displays if the option is not applicable to the vehicle under test. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01...
-
Page 28: Obdii/Eobd Operations
System Status option open a screen with a summary of system status of the vehicle under test. To view summary system status of a vehicle: 1. Scroll with the arrow keys to highlight System Status from Diagnostic Menu and press the ENTER key. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... -
Page 29: Read Codes
1. Scroll with the arrow keys to highlight Read Codes from Diagnostic Menu and press the ENTER key. Figure 5-3 Sample Diagnostic Menu Screen 2. Select Stored Codes/Pending Codes and press the ENTER key to confirm. A code list including code number and its description displays. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... - Page 30 Figure 5-6 Sample Code screen 4. Press function key Save to store DTC information. Or use the BACK key to exit. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01...
-
Page 31: Erase Codes
3. Check the codes again. If any codes remain, repeat the Erase Codes steps. 5.4 Live Data Live Data menu lets you view and record real time PID data from the electronic control module. Menu options typically include: Complete Data List ● NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... -
Page 32: Complete Data List
Figure 5-10 Sample Live Data Menu Screen 3. Use the up and down arrow keys to scroll through data to select lines, and left and right arrow keys to scroll back and forth through different screens of data. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... - Page 33 Figure 5-13 Sample Two PID Graph Screen 6. Press the function key Merge Graph to display two PID plots in one coordinate for easy and intuitive diagnosis. Figure 5-14 Sample Merge Graph Screen NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01...
-
Page 34: Custom Data List
To deselect an item, select it again and then press the ENTER key. Alternatively, use the function keys SELECT ALL and CLEAR ALL to select or deselect all items at once. 3. When finished selection, use the function key VIEW DATA to display selected items. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... -
Page 35: Freeze Frame
2. Use the up and down arrow keys to scroll through data to select lines, and left and right arrow keys to scroll back and forth through different screens of data. If no freeze frame detected, the message “No freeze frame data stored!” is displayed. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... -
Page 36: Read I/M Readiness Status Data
1. Scroll with the arrow keys to highlight I/M Readiness from Diagnostic Menu and press the ENTER key. If vehicle supports both types of monitors, a screen for monitor type selection displays. Select a monitor type and press the ENTER key. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... - Page 37 Figure 5-21 Sample IM Readiness Screen 1 Figure 5-22 Sample IM readiness screen 2 3. Press the BACK key to exit. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01...
-
Page 38: O2 Monitor Test
Figure 5-24 Sample O2 Monitor Test screen 3. Use the up and down arrow keys to scroll through data to select lines, and left and right arrow keys to scroll back and forth through different screens of data. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... -
Page 39: On-Board Monitor Test
Test results do not necessarily indicate a faulty component or system. To request on-board monitor test results: 1. Scroll with the arrow keys to highlight On-Board Monitor Test from Diagnostic Menu and press the ENTER key. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... - Page 40 Use the up and down arrow keys to scroll through data to select lines, and left and right arrow keys to scroll back and forth through different screens of data. For non-CAN vehicles, test screen is illustrated as below: NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01...
-
Page 41: Component Test
To perform a component test: 1. Scroll with the arrow keys to highlight Component Test from Diagnostic Menu and press the ENTER key. A screen with a list of available tests displays. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... -
Page 42: Request Vehicle Information
Available options will vary depending on the vehicle under test. To request vehicle information: 1. Scroll with the arrow keys to highlight Vehicle Info. from Diagnostic Menu and press the ENTER key. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... - Page 43 Figure 5-36 Sample Calibration ID Screen 4. Press function key Save to store the readiness data. Or use the BACK key to exit and return. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01...
-
Page 44: Modules Present
DTC Lookup menus allows to request DTC definitions stored in the scan tool. To Look up DTCs: 1. Scroll with the arrow keys to highlight DTC Lookup. from Diagnostic Menu and press the ENTER key. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... - Page 45 If a P1xxx, C1xxx, B1xxx or U1xxx code is entered, select a vehicle make to look for DTC definitions. Press the Back key to exit. Figure 5-41 Sample Trouble Codes Screen NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01...
-
Page 46: Playback Data
3. Scroll with the arrow keys to highlight a vehicle record and press the ENTER key. Details of the test record displays. Use the up and down arrow keys to scroll through data to select lines. Figure 6-3 Sample Test Data Details Screen NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... -
Page 47: System Setup
Selecting Language opens a screen that allows you to choose system language. The scan tool is set to display English menus by default. To configure system language: 1. Scroll with the arrow keys to highlight Language from Setup menu and press the ENTER key. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... -
Page 48: Change Units
1. Scroll with the arrow keys to highlight Units from Setup menu and press the ENTER key. Figure 7-3 Sample Setup Screen 2. Press the LEFT/RIGHT arrow key select an item and press the ENTER key to save and return. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... -
Page 49: Configure Beeper
1. Scroll with the arrow keys to highlight Beep Set from Setup menu and press the ENTER key. Figure 7-5 Sample Setup Screen 2. Press the LEFT/RIGHT arrow key select an item and press the ENTER key to save and return. Figure 7-6 Sample Beeper On/Off Selection Screen NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... -
Page 50: Test Keypad
1. Scroll with the arrow keys to highlight LCD Test from Setup menu and press the ENTER key to start test. Check if there are any missing spots in the LCD screen. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... -
Page 51: Tool Information
1. Scroll with the arrow keys to highlight About from Setup menu and press the ENTER key. Figure 7-10 Sample Setup screen 2. A screen with detailed information of the scanner displays. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... -
Page 52: Configure Shortcut Keys
4. Press any key to exit and return. 8 Update The scanner can be updated to keep you stay current with the latest development of diagnosis. This section illustrates how to register and update your scan tool. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01... -
Page 53: Register The Scanner
8.1 Register the Scanner If you are new to FOXWELL, please register the scanner first. All of your scanners can be registered on One Foxwell ID. To register the scanner: 1. Visit our site www.foxwelltech.com and then select Register Products to create a Foxwell ID and register your scan tool. - Page 54 Submit to create your ID. When your ID has been created, you are allowed to view all programs associated with your tool, download updates, edit your profile, leave us feedbacks and join our community to share your ideas and your stories about our products. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01...
- Page 55 Figure 8-4 Sample Registration Form Filling Screen 5. A Submit OK message will comes up if it is registered successfully. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01...
- Page 56 My Profile/Password Change to input the old password and new password. Figure 8-6 Sample User ID and/or Password Reset Screen Figure 8-7 Sample Password Reset Successful Screen NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01...
-
Page 57: Update The Scanner
Figure 8-8 Sample Registration Screen 7. Sign in with your Foxwell ID and click My Products>New Registration option if you have more than one scan tool to be registered. And repeat the process as necessary. - Page 58 4. Remove the memory card from the scanner, put it into the card reader and plug the reader into the computer. 5. Login with your Foxwell ID and password. Figure 8-10 Sample Software Update Sign In Screen 6. Click My Updates, and all updates applicable to your scanner displays. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01...
- Page 59 7. Click the check box(es) in front of the software(s) you wish to update and then click the Update button to download and update. When download completed, the downloaded programs start to update automatically. Figure 8-12 Sample Software Download Screen 8. An Update Complete message displays once the updates completed. NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01...
- Page 60 10. To uninstall a software or all software select them and click the Uninstall button. And the uninstalled items can be found in the Updates screen. Figure 8-14 Sample Uninstall Software Screen NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01...
