Supero SUPERSERVER 8047R-TRF+ User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
адрес: 125480, г.Москва, ул.Туристская, д.33/1; site: https://andpro.ru тел: +7 (495) 545-4870 email: info@andpro.ru
При обращении используйте промокод AND-PDF и получите скидку.
S
UPER
®
SUPERSERVER
8047R-TRF+
8047R-7RFT+

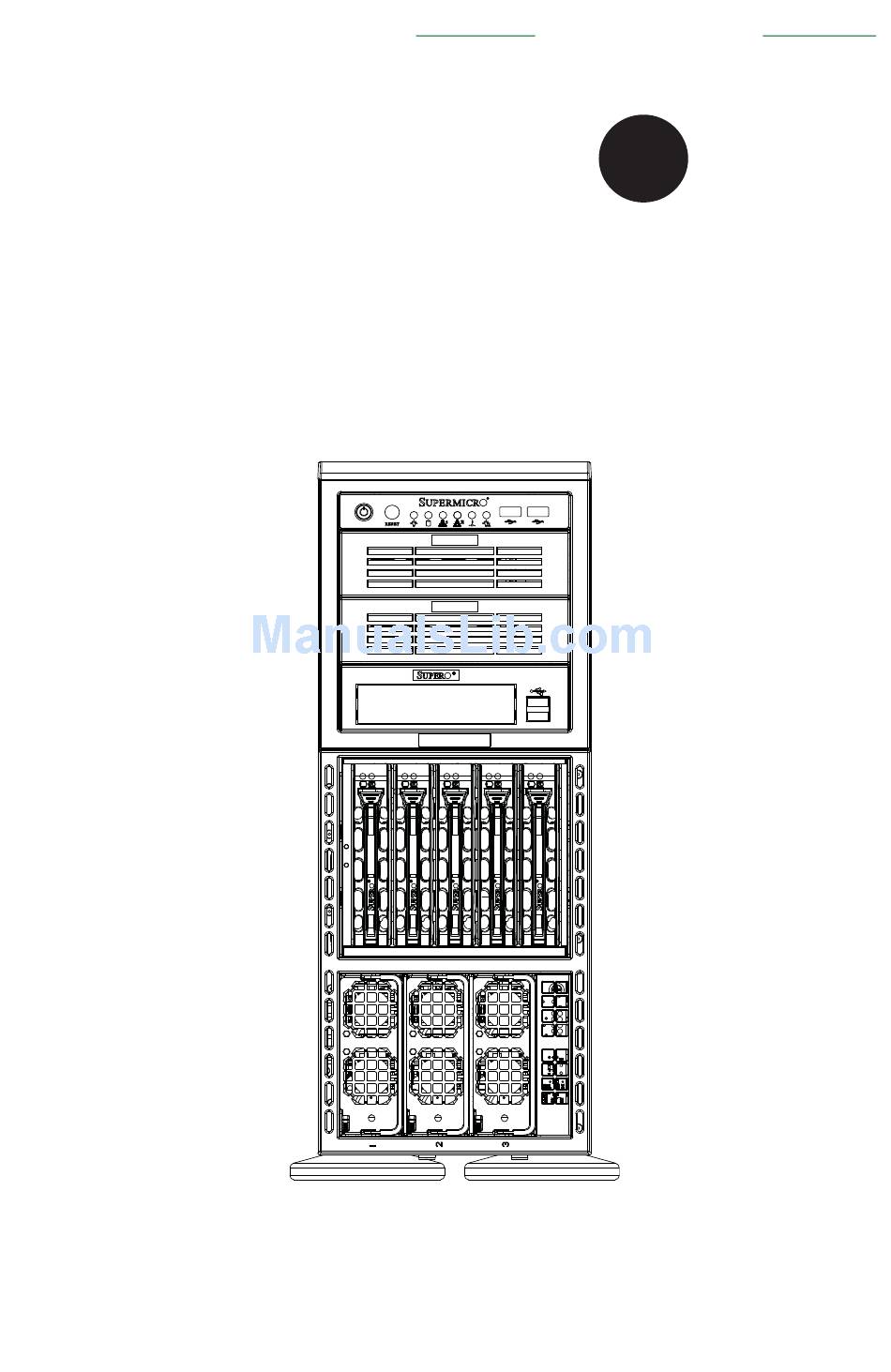

USER'S MANUAL
Revision 1.0b

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUPERSERVER 8047R-TRF+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Supero SUPERSERVER 8047R-TRF+

Summary of Contents for Supero SUPERSERVER 8047R-TRF+

  • Page 1 Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс» адрес: 125480, г.Москва, ул.Туристская, д.33/1; site: https://andpro.ru тел: +7 (495) 545-4870 email: info@andpro.ru При обращении используйте промокод AND-PDF и получите скидку. UPER ® SUPERSERVER 8047R-TRF+ 8047R-7RFT+ USER'S MANUAL Revision 1.0b...
  • Page 2 The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates.
  • Page 3 Preface Preface About This Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SuperServer 8047R-TRF+/7RFT+ Installation and maintainance should be performed by experienced technicians only. The SuperServer 8047R-TRF+/7RFT+ is a high-end server based on the SC748TQ-R1K43BP 4U rackmount chassis and the X9QRi-F+/X9QR7-TF+ dual processor serverboard.
  • Page 4 SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Chapter 6: Advanced Chassis Setup Refer to Chapter 6 for detailed information on the SC748TQ-R1K43BP server chassis. You should follow the procedures given in this chapter when installing, removing or reconfi guring SAS/SATA or peripheral drives and when replacing system power supply units and cooling fans.
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Table of Contents Chapter 1 Introduction Overview ......................1-1 Serverboard Features ..................1-2 Processors ...................... 1-2 Memory ......................1-2 Serial ATA ....................... 1-2 SAS (8047R-7RFT+ Server Only) ..............1-3 Onboard Controllers/Ports ................1-3 Graphics Controller ..................1-3 Other Features ....................
  • Page 7 Table of Contents Reliable Ground ..................2-3 Installing the System into a Rack ..............2-4 Removing the Feet ..................2-4 Identifying the Sections of the Rack Rails ............2-6 Tower Confi guration Instructions ..............2-11 Checking the Serverboard Setup ..............2-12 Checking the Drive Bay Setup ..............
  • Page 8 SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Chapter 5 Advanced Serverboard Setup Handling the Serverboard ................5-1 Precautions ..................... 5-1 Unpacking ....................... 5-1 Connecting Cables ..................5-2 Connecting Data Cables ................. 5-2 Connecting Power Cables ................5-2 Connecting the Control Panel ................. 5-2 I/O Ports ......................
  • Page 9 Table of Contents Add-on Card/Expansion Slot Setup .............. 6-12 Installing the Air Shroud ................6-14 System Fans ....................6-15 Replacing a Front Chassis Fan ..............6-15 Replacing a Rear Chassis Fan ..............6-16 Power Supply ....................6-17 Power Supply Failure ..................6-17 Chapter 7 BIOS Introduction ......................
  • Page 10 SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Notes...

  • Page 11: Chapter 1 Introduction

    Chapter 1: Introduction Chapter 1 Introduction Overview The SuperServer 8047R-TRF+/7RFT+ is a high-end server comprised of two main subsystems: the SC748TQ-R1K43BP 4U server chassis and the X9QRi-F+/X9QR7-TF+ dual processor serverboard. Please refer to our web site for information on operating systems that have been certifi ed for use with the system (www.supermicro.com).

  • Page 12: Serverboard Features

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL • If you have any questions, please contact our support team at support@ supermicro.com Serverboard Features At the heart of the SuperServer 8047R-TRF+/7RFT+ lies the X9QRi-F+/X9QR7-TF+, a dual processor serverboard based on the Intel C602 chipset. Below are the main features of the X9QRi-F+/X9QR7-TF+.

  • Page 13: Sas (8047R-7Rft+ Server Only)

    Chapter 1: Introduction SAS (8047R-7RFT+ Server Only) A LSI 2208 SAS controller is integrated into the serverboard to provide an eight port ® SAS (Serial Attached SCSI) subsystem, which is RAID 0, 1, 5, 6 and 10 supported. The SAS drives are hot-swappable units. Note: The operating system you use must have RAID support to enable the hotswap capability and RAID function of the SAS drives.

  • Page 14: Hard Drive Subsystem

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Hard Drive Subsystem The SC748TQ-R1K43BP chassis was designed to support fi ve 3.5" hot-swap SATA or SAS hard drives in a M35 mobile rack, with an additional fi ve 3.5" hard drives available with a second optional M35 mobile rack installed. Mobile Rack The SC748 chassis includes a CSE-M35BP mobile rack.

  • Page 15: Cooling System

    Chapter 1: Introduction Cooling System The SC748TQ-R1K43BP chassis has an innovative cooling design that includes three 8-cm and three 9.2-cm hot-plug system cooling fans located in the middle section of the chassis. An air shroud channels the airfl ow from the system fans to effi...

  • Page 16: System Block Diagram

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Figure 1-1. Intel C602 Chipset: System Block Diagram Note: This is a general block diagram. Please see Chapter 5 for details. 10Gbit/1G/1000BaseT RJ45 TX LAN Twinville DDR3-DMM DDR3-DMM DDR3-DMM DDR3-DMM DDR3-DMM DDR3-DMM 1066/1333/1600 1066/1333/1600 1066/1333/1600 1066/1333/1600 Dual 10GbE 1066/1333/1600 1066/1333/1600...

  • Page 17: Contacting Supermicro

    Chapter 1: Introduction Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML 's-Hertogenbosch, The Netherlands Tel:...
  • Page 18 SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Notes...

  • Page 19: Chapter 2 Server Installation

    Chapter 2: Server Installation Chapter 2 Server Installation Overview This chapter provides a quick setup checklist to get your SuperServer 8047R-TRF+/7RFT+ up and running. Following these steps in the order given should enable you to have the system operational within a minimum amount of time. This quick setup assumes that your system has come to you with the processors and memory preinstalled.

  • Page 20: Cautions

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL • This product is for installation only in a Restricted Access Location (dedicated equipment rooms, service closets and the like). • This product is not suitable for use with visual display work place devices acccording to §2 of the the German Ordinance for Work with Visual Display Units. Cautions! Rack Precautions •...

  • Page 21: Rack Mounting Considerations

    Chapter 2: Server Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating temperature of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient temperature (Tmra).

  • Page 22: Installing The System Into A Rack

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Installing the System into a Rack This section provides information on installing the SC748 chassis into a rack unit with the rails provided. There are a variety of rack units on the market, which may mean the assembly procedure will differ slightly. You should also refer to the installation instructions that came with the rack unit you are using.
  • Page 23 Chapter 2: Server Installation Figure 2-1: Remove the Chassis Cover and Feet Chassis Feet Chassis Cover Chassis Cover Lock...

  • Page 24: Identifying The Sections Of The Rack Rails

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Identifying the Sections of the Rack Rails The chassis package includes two rack rail assemblies in the rack mounting kit. Each assembly consists of two sections: an inner fi xed chassis rail that secures directly to the server chassis and an outer fi xed rack rail that secures directly to the rack itself (see Figure 2-2 for details).
  • Page 25 Chapter 2: Server Installation 2. Align the chassis handle with the front of the chassis and secure with the three chassis handle screws. 3. Repeats steps 1 and 2 with the other handle. 4. Locate the inner rails (2) and screws (12) in the shipping package. 5.
  • Page 26 SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Installing the Outer Rails to the Rack (Figure 2-5) 1. Attach the front and rear short brackets to the outside of the long bracket. Both bracket ends must face the same direction. 2. Adjust both the brackets to the proper distance so that the rail fi ts snugly into the rack.
  • Page 27 Chapter 2: Server Installation Installing the Chassis into a Rack 1. Confi rm that chassis includes the inner rails and the outer rails. 2. Line chassis rails with the front of the rack rails (Figure 2-6). Figure 2-6. Installing the Rack Rails...
  • Page 28 SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL 3. Slide the chassis rails into the rack rails, keeping the pressure even on both sides (you may have to depress the locking tabs when inserting). When the server has been pushed completely into the rack, you should hear the locking tabs "click"...

  • Page 29: Tower Confi Guration Instructions

    Chapter 2: Server Installation Tower Confi guration Instructions The SC748 chassis is shipped with the chassis cover and feet pre-installed. To use the chassis as a desktop server, no other installation is required. Use the instructions in this section if you have converted the chassis for rack use and need to return the chassis to tower mounting.

  • Page 30: Checking The Serverboard Setup

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Figure 2-9: Placing Chassis Feet Chassis Foot Receptacle Chassis Foot Chassis Screw Checking the Serverboard Setup After you setup the 8047R-TRF+/7RFT+ (in the rack or tower confi guration), you will need to open the unit to make sure the serverboard is properly installed and all the connections have been made.
  • Page 31 Chapter 2: Server Installation Figure 5-1: Removing the Chassis Cover Remove Screws Checking the Components and Setup 1. You may have one or two processors already installed into the serverboard. Each processor needs its own heat sink. See Chapter 5 for instructions on processor and heat sink installation.

  • Page 32: Checking The Drive Bay Setup

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Checking the Drive Bay Setup Next, you should check to make sure the peripheral drives and the SAS/SATA drives have been properly installed and all connections have been made. Checking the Drives 1. All drives are accessable from the front of the server. For servicing the DVD- ROM, you will need to remove the top chassis cover.

  • Page 33: Chapter 3 System Interface

    Chapter 3: System Interface Chapter 3 System Interface Overview There are several LEDs on the control panel as well as others on the drive carriers to keep you constantly informed of the overall status of the system as well as the activity and health of specifi...

  • Page 34: Power

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Control Panel Buttons There are two buttons located on the front of the chassis: a reset button and a power on/off button. Power The main power switch is used to apply or remove power from the power supply to the server system.

  • Page 35: Universal Information Led

    Chapter 3: System Interface Universal Information LED When this LED blinks red quickly, it indicates a fan failure and when blinking red slowly a power failure. The LED will be blue when used for UID (Unit Identifi er). When on continuously it indicates an overheat condition, which may be caused by cables obstructing the airfl...

  • Page 36: Drive Carrier Leds

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Drive Carrier LEDs Each drive carrier has two LEDs: SATA Drives • Green: When illuminated, the green LED on the SATA drive carrier indicates drive activity. A connection to the SATA backplane enables this LED to blink on and off when that particular drive is being accessed.

  • Page 37: About Standardized Warning Statements

    Chapter 4: Warning Statements for AC Systems Chapter 4 Standardized Warning Statements for AC Systems About Standardized Warning Statements The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance.
  • Page 38 SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befi nden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 39 Warning Statements for AC Systems ‫ﺟﺴﺪﻳﺔ‬ ‫ﺍﺻﺎﺑﺔ‬ ‫ﺗﺘﺴﺒﺐ ﻓﻲ‬ ‫ﺣﺎﻟﺔ ﻳﻤﻜﻦ ﺃﻥ‬ ‫ﺍﻧﻚ ﻓﻲ‬ ‫ﺧﻄﺮ‬ ‫ﻳﻌﻨﻲ‬ ‫ﻫﺬﺍ ﺍﻟﺮﻣﺰ‬ !‫ﺗﺤﺬﻳﺮ‬ ‫ﺍﻟﺪﻭﺍﺋﺮ‬ ‫ﺑﺎﻟﻤﺨﺎﻁﺮ ﺍﻟﻨﺎﺟﻤﺔ ﻋﻦ‬ ‫ﻦ ﻋﻠﻰ ﻋﻠﻢ‬ ، ‫ﻛ‬ ‫ﻣﻌﺪﺍﺕ‬ ‫ﺗﻌﻤﻞ ﻋﻠﻰ ﺃﻱ‬ ‫ﻗﺒﻞ ﺃﻥ‬ ‫ﺍﻟﻜﻬﺮﺑﺎﺋﻴﺔ‬ ‫ﺣﻮﺍﺩﺙ‬ ‫ﺃﻱ‬ ‫ﻭﻗﻮﻉ‬ ‫ﻤﻨﻊ‬ ‫ﻟ‬ ‫ﺍﻟﻮﻗﺎﺋﻴﺔ‬...

  • Page 40: Installation Instructions

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 設置手順書 システムを電源に接続する前に、 設置手順書をお読み下さい。 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación.

  • Page 41: Circuit Breaker

    Chapter 4: Warning Statements for AC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A. サーキッ ト ・ ブレーカー この製品は、 短絡 （過電流） 保護装置がある建物での設置を前提としています。 保護装置の定格が250 V、...

  • Page 42: Power Disconnection Warning

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL ‫ﻓﻲ‬ ‫ﺍﻟﺘﻲ ﺗﻢ ﺗﺜﺒﻴﺘﻬﺎ‬ ‫ﻣﻦ ﺍﻟﺪﻭﺍﺋﺮﺍﻟﻘﺼﻴﺮﺓ‬ ‫ﺍﻟﺤﻤﺎﻳﺔ‬ ‫ﻣﻌﺪﺍﺕ‬ ‫ﻳﻌﺘﻤﺪ ﻋﻠﻰ‬ ‫ﻫﺬﺍ ﺍﻟﻤﻨﺘﺞ‬ ‫ﺍﻟﻤﺒﻨﻰ‬ ‫ﺃﻛﺜﺮ ﻣﻦ‬ ‫ﻟﻴﺲ‬ ‫ﻮﻗﺎﺋﻲ‬ ‫ﺍﻟ‬ ‫ﺍﻟﺠﻬﺎﺯ‬ ‫ﺗﻘﻴﻴﻢ‬ ‫ﺃﻥ‬ ‫ﺗﺄﻛﺪ ﻣﻦ‬ 20A, 250V 경고! 이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에 의존합니다. 보호장치의 정격이 반드시 250V(볼트), 20A(암페어)를 초과하지 않도록...
  • Page 43 Chapter 4: Warning Statements for AC Systems Warnung Das System muss von allen Quellen der Energie und vom Netzanschlusskabel getrennt sein, das von den Spg.Versorgungsteilmodulen entfernt wird, bevor es auf den Chassisinnenraum zurückgreift, um Systemsbestandteile anzubringen oder zu entfernen. ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema.

  • Page 44: Equipment Installation

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Equipment Installation Warning! Only trained and qualifi ed personnel should be allowed to install, replace, or service this equipment. 機器の設置 トレーニングを受け認定された人だけがこの装置の設置、 交換、 またはサービスを許可 されています。 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifi...

  • Page 45: Restricted Area

    Chapter 4: Warning Statements for AC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalifi ceerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.

  • Page 46: Battery Handling

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL ‫אזור עם גישה מוגבלת‬ !‫אזהרה‬ ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬ .('‫כלי אבטחה בלבד )מפתח, מנעול וכד‬ ‫ﻣﺤﻈﻮﺭﺓ‬ ‫ﻣﻨﺎﻁﻖ‬ ‫ﻟﺘﺮﻛﻴﺒﻬﺎ ﻓﻲ‬ ‫ﻫﺬﻩ ﺍﻟﻮﺣﺪﺓ‬ ‫ﺗﺨﺼﻴﺺ‬ ‫ﺗﻢ‬ ،‫ﺃﺩﺍﺓ ﺧﺎﺻﺔ‬ ‫ﻣﻦ ﺧﻼﻝ ﺍﺳﺘﺨﺪﺍﻡ‬ ‫ﻓﻘﻂ‬...
  • Page 47 Chapter 4: Warning Statements for AC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.

  • Page 48: Redundant Power Supplies

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 冗長電源装置 このユニッ トは複数の電源装置が接続されている場合があります。 ユニッ トの電源を切るためには、 すべての接続を取り外さなければなりません。 警告 此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。 警告 此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.

  • Page 49: Backplane Voltage

    Chapter 4: Warning Statements for AC Systems ‫ﺍﻣﺪﺍﺩ ﺍﻟﻄﺎﻗﺔ‬ ‫ﺑﻮﺣﺪﺍﺕ‬ ‫ﻋﺪﺓ ﺍﺗﺼﺎﻻﺕ‬ ‫ﺠﻬﺎﺯ‬ ‫ﺍﻟ‬ ‫ﻳﻜﻮﻥ ﻟﻬﺬﺍ‬ ‫ﻗﺪ‬ ‫ﺍﻟﻜﻬﺮﺑﺎء‬ ‫ﻋﻦ‬ ‫ﻮﺣﺪﺓ‬ ‫ﺍﻟ‬ ‫ﻟﻌﺰﻝ‬ ‫ﻛﺎﻓﺔ ﺍﻻﺗﺼﺎﻻﺕ‬ ‫ﻳﺠﺐ ﺇﺯﺍﻟﺔ‬ 경고! 이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다. 이 장치에 전원을...

  • Page 50: Comply With Local And National Electrical Codes

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Attention Lorsque le système est en fonctionnement, des tensions électriques circulent sur le fond de panier. Prendre des précautions lors de la maintenance. ‫מתח בפנל האחורי‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬ .‫העבודה‬...

  • Page 51: Product Disposal

    Chapter 4: Warning Statements for AC Systems ¡Advertencia! La instalacion del equipo debe cumplir con las normas de electricidad locales y nacionales.Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬...

  • Page 52: Hot Swap Fan Warning

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen. ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement.
  • Page 53 Chapter 4: Warning Statements for AC Systems 当您从机架移除风扇装置，风扇可能仍在转动。小心不要将手指、螺丝起子和其他 物品太靠近风扇 警告 當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他 物品太靠近風扇。 Warnung Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis.

  • Page 54: Power Cable And Ac Adapter

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Waarschuwing Het is mogelijk dat de ventilator nog draait tijdens het verwijderen van het ventilatorsamenstel uit het chassis. Houd uw vingers, schroevendraaiers en eventuele andere voorwerpen uit de buurt van de openingen in de ventilatorbehuizing. Power Cable and AC Adapter Warning! When installing the product, use the provided or designated connection cables, power cables and AC adaptors.
  • Page 55 Chapter 4: Warning Statements for AC Systems ¡Advertencia! Al instalar el producto, utilice los cables de conexión previstos o designados, los cables y adaptadores de CA. La utilización de otros cables y adaptadores podría ocasionar un mal funcionamiento o un incendio. Aparatos Eléctricos y la Ley de Seguridad del Material prohíbe el uso de UL o CSA cables certifi...
  • Page 56 SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Waarschuwing Bij het installeren van het product, gebruik de meegeleverde of aangewezen kabels, stroomkabels en adapters. Het gebruik van andere kabels en adapters kan leiden tot een storing of een brand. Elektrisch apparaat en veiligheidsinformatiebladen wet verbiedt het gebruik van UL of CSA gecertifi...

  • Page 57: Chapter 5 Advanced Serverboard Setup

    Chapter 5: Advanced Serverboard Setup Chapter 5 Advanced Serverboard Setup This chapter covers the steps required to install the X9QRi-F+/X9QR7-TF+ serverboard into the chassis, connect the data and power cables and install add-on cards. All serverboard jumpers and connections are also described. A layout and quick reference chart are included in this chapter for your reference.

  • Page 58: Connecting Cables

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Connecting Cables Now that the serverboard is installed, the next step is to connect the cables to the board. These include the data (ribbon) cables for the peripherals and control panel and the power cables. Connecting Data Cables The ribbon cables used to transfer data from the peripheral devices have been carefully routed to prevent them from blocking the fl...

  • Page 59: I/O Ports

    Chapter 5: Advanced Serverboard Setup Figure 5-1. Control Panel Header Pins Ground 3.3 V FP PWRLED HDD LED ID_UID_SW/3/3V Stby NIC1 Link LED NIC1 Activity LED NIC2 Activity LED NIC2 Link LED Blue+ (OH/Fan Fail/ Red+ (Blue LED Cathode) PWR FaiL/UID LED) Power Fail LED 3.3V Reset...

  • Page 60: Installing The Processor And Heatsink

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Installing the Processor and Heatsink Caution! Avoid placing direct pressure to the top of the processor package. Always remove the power cord fi rst before adding, removing or changing any hardware components. Caution: The Quad MB (4 CPU socket) was recommended to install all the 4 CPU to make sure every function can work properly.
  • Page 61 Chapter 5: Advanced Serverboard Setup 2. Press the second load lever labeled 'Close 1st' to release the load plate that covers the CPU socket from its locking position. Press down on the load Pull the lever away lever labeled 'Close 1st' from the socket 3.
  • Page 62 SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL 5. Use your thumb and index fi nger to hold the CPU on its edges. Align the CPU keys, which are semi-circle cutouts, against the socket keys. Socket Keys CPU Keys 6. Once they are aligned, carefully lower the CPU straight down into the socket. (Do not drop the CPU on the socket.
  • Page 63 Chapter 5: Advanced Serverboard Setup 7. With the CPU inside the socket, inspect the four corners of the CPU to make sure that the CPU is properly installed. 8. Close the load plate with the CPU inside the socket. Lock the lever labeled 'Close 1st' fi...

  • Page 64: Installing A Passive Cpu Heatsink

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Installing a Passive CPU Heatsink 1. Do not apply any thermal grease to the heatsink or the CPU die -- the required amount has already been applied. 2. Place the heatsink on top of the CPU so that the four mounting holes are aligned with those on the Motherboard's and the Heatsink Bracket underneath.

  • Page 65: Removing The Heatsink

    Chapter 5: Advanced Serverboard Setup Removing the Heatsink Caution: We do not recommend that the CPU or the heatsink be removed. However, if you do need to uninstall the heatsink, please follow the instructions below to uninstall the heatsink to prevent damage done to the CPU or the CPU socket. 1.

  • Page 66: Installing Memory

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Installing Memory Caution! Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. Memory Support The X9QRi-F+/X9QR7-TF+ has thirty-two (32) 240-pin DIMM sockets that can support up to 1024GB of Registered (RDIMM), Load Reduced (LRDIMM) ECC or Unbuffered (UDIMM) ECC/Non-ECC DDR3 1866/1600/1333/1066/800 MHz speed S D R A M t w o - c h a n n e l...

  • Page 67: Processor & Memory Module Population Confi Guration

    Chapter 5: Advanced Serverboard Setup Figure 5-3. Installing DIMMs Notches Release Release Lock/Release Tabs Processor & Memory Module Population Confi guration For memory to work properly, follow the tables below for memory installation. Processors and their Corresponding Memory Modules CPU# Corresponding DIMM Modules CPU1 P1-A1...

  • Page 68: Populating Memory Modules

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Populating Memory Modules Note: For UDIMM memory support details, please refer to the recommended memory list posted on our website. Intel E5-4600 Series Processor UDIMM Memory Support Ranks Memory Capacity Speed (MT/s) and Voltage Validated by Slot per Channel (SPC) Per DIMM and DIMM Per Channel (DPC) DIMM...
  • Page 69 Chapter 5: Advanced Serverboard Setup Intel E5-4600 Series Processor LRDIMM Memory Support Ranks Per Memory Capacity Speed (MT/s) and Voltage Validated by DIMM & Data Per DIMM Slot per Channel (SPC) and DIMM Per Width Channel (DPC) 1 Slot Per Channel 2 Slots Per Chan- (See the Note Below)
  • Page 70 SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Intel E5-4600 V2 Series Processor UDIMM Memory Support (3 Slots) Ranks Memory Capacity Speed (MT/s) and Voltage Per DIMM Validated by Slot per Channel DIMM (in GB) (SPC) and DIMM Per Channel & Data (DPC) (See Notes Below) Width (See the Note Below) 3 Slots Per Channel...
  • Page 71 Chapter 5: Advanced Serverboard Setup Intel E5-4600 V2 Series Processor RDIMM Memory Support (1 &2 Slots) Ranks Memory Capacity Speed (MT/s) and Voltage Validated by Slot per Per DIMM Channel (SPC) and DIMM Per Channel (DPC) DIMM 1 Slot per 2 Slots Per Channel &...
  • Page 72 SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Intel E5-4600 V2 Series Processor RDIMM Memory Support (3 Slots) Ranks Memory Capacity Speed (MT/s) and Voltage Validated by Slot per Per DIMM Channel (SPC) and DIMM Per Channel (DPC) DIMM 3 Slots Per Channel & Data (See the Note Below) Width 1DPC...
  • Page 73 Chapter 5: Advanced Serverboard Setup Intel E5-4600 V2 Series Processor LRDIMM Memory Support (1 & 2 Slots) Ranks Memory Capacity Speed (MT/s) and Voltage Validated by Slot per Per DIMM Channel (SPC) and DIMM Per Channel (DPC) DIMM 1 Slot Per 2 Slots Per Channel &...

  • Page 74: Other Important Notes And Restrictions

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Other Important Notes and Restrictions • For the memory modules to work properly, please install DIMM modules of the same type, same speed and same operating frequency on the motherboard. Mixing of RDIMMs, UDIMMs or LRDIMMs is not allowed. Do not install both ECC and Non-ECC memory modules on the same motherboard.

  • Page 75: Serverboard Details

    Chapter 5: Advanced Serverboard Setup Serverboard Details Figure 5-4. X9QRi-F+/X9QR7-TF+ Layout USB0/1 COM1 LAN1 LAN2 USB2/3 LAN CTRL BMC CTRL IPMI_LAN X9QR7-TF+/X9QRi-F+ Rev. 1.02 UFBMC1 CPU4 CPU3 CPU1 CPU1 CLPD CPU1 CPU2 JPW5 CPU1 CPU1 LS2E1 JPW4 JPW3 JPW2 JPW1 JPI2C1 SAS CTRL FAN6...
  • Page 76 SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL X9QRi-F+/X9QR7-TF+ Quick Reference Jumper Description Default Setting JBT1 Clear CMOS See Section 5-9 JPB1 BMC Enable/Disable Pins 1-2 (Enabled) JPG1 VGA Enable/Disable Pins 1-2 (Enabled) JPRST1 BMC Reset Off (Normal) JPS1 SAS Enable/Disable Pins 1-2 (Enabled) JPT1 TPM Enable/Disable Pins 1-2 (Enabled)

  • Page 77: Connector Defi Nitions

    Chapter 5: Advanced Serverboard Setup Connector Defi nitions Main ATX Power Supply Connector ATX Power 24-pin Connector Pin Defi nitions A 2 4 - p i n m a i n p o w e r s u p p l y Pin# Defi...
  • Page 78 SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Reset Button Reset Button Pin Defi nitions (JF1) Pins 3 and 4 of JF1 attaches to the Pin# Defi nition reset button on the computer chassis. See the table on the right for pin Reset defi nitions. Ground Overheat/Fan/Pwr Fail/UID LED OH/Fan Fail/ Pwr Fail/UID LED...
  • Page 79 Chapter 5: Advanced Serverboard Setup Power On LED Power LED Pin Defi nitions (JF1) The Power On LED connector is Pin# Defi nition located on pins 15 and 16 of JF1 (use JLED for a 3-pin connector). This 3.3V connection is used to provide LED Control indication of power being supplied to the system.
  • Page 80 SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Power LED/Speaker PWR LED Connector Pin Defi nitions On JD1 header, pins 1-3 are for a Pin Setting Defi nition power LED and pins 4-7 are for the speaker. Pins 4-7 are available for Pin 1 Anode (+) connection to an external speaker.
  • Page 81 Chapter 5: Advanced Serverboard Setup Power SMB (I2C) Power SMB Pin Defi nitions The Power System Management Bus Pin# Defi nition C) header (JPI C) monitors power supply, fan and system temperatures. Clock See the table on the right for pin Data defi...
  • Page 82 SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Universal Serial Bus (USB) Backplane Accessible USB Connectors Four Universal Serial Bus ports Pin Defi nitions ( U S B 0 / 1 , U S B 2 / 3 ) a r e l o c a t e d USB 0/2 USB 1/3 Pin #...
  • Page 83 Chapter 5: Advanced Serverboard Setup Unit Identifi er Switch UID Switch A Unit Identifier (UID) switch and Pin# Defi nition two LED indicators are provided on Ground the serverboard. The UID Switch is Ground located next to the LAN ports on the Button In I/O backplane.

  • Page 84: Jumper Settings

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Jumper Settings Connector Pins Explanation of Jumpers To modify the operation of the Jumper motherboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two Setting pins to change the function of the connector.
  • Page 85 Chapter 5: Advanced Serverboard Setup VGA Enable/Disable VGA Enable/Disable Jumper Settings JPG1 allows you to enable or disable Jumper Setting Defi nition the VGA port. The default position is on pins 1 and 2 to enable VGA. See the Pins 1-2 Enabled table on the right for jumper settings.

  • Page 86: 5-10 Onboard Indicators

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL BMC Reset BMC Reset Jumper Settings Use jumper JPRST1 to reset the BMC Jumper Setting Defi nition settings on the motherboard. See the Closed BMC Reset table on the right for jumper settings. Open Normal (Default) 5-10 Onboard Indicators GLAN LED GLAN LEDs...
  • Page 87 Chapter 5: Advanced Serverboard Setup Unit Identifi cation Switch/LED UID LED (LEDUID1) Status A Unit Identifi er switch (SWUID) and Color/State OS Status a rear UID LED indicator (LEDUID1) are located next to the VGA port. Blue: On Windows OS Unit Identifi...

  • Page 88: 5-11 Sas/Sata Ports

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL 5-11 SAS/SATA Ports SATA Ports SATA Port Pin Defi nitions There are no jumpers to confi gure the (I-SATA0 ~ I-SATA5) onboard SATA ports. These ports are Pin # Defi nition supported by the Intel chipset. See Ground the table on the right for pin defi...

  • Page 89: 5-12 Installing Software

    Chapter 5: Advanced Serverboard Setup 5-12 Installing Software The Supermicro ftp site contains drivers and utilities for your system at ftp://ftp. supermicro.com. Some of these must be installed, such as the chipset driver. After accessing the ftp site, go into the CDR_Images directory and locate the ISO fi...
  • Page 90 SuperDoctor III, as the SuperDoctor III settings override the BIOS settings. To set the BIOS temperature threshold settings again, you would fi rst need to uninstall SuperDoctor III. Figure 5-6. Supero Doctor III Interface Display Screen (Health Information) 5-34...

  • Page 91: Superdoctor Iii

    Chapter 5: Advanced Serverboard Setup Figure 5-7. Supero Doctor III Interface Display Screen (Remote Control) Note: The SuperDoctor III program and User’s Manual can be downloaded from the Supermicro web site at http://www.supermicro.com/products/accessories/software/ SuperDoctorIII.cfm. For Linux, we recommend that you use the SuperDoctor II application instead.

  • Page 92: 5-13 Serverboard Battery

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL 5-13 Serverboard Battery Caution: There is a danger of explosion if the onboard battery is installed upside down, which will reverse its polarites (see Figure 5-5). This battery must be replaced only with the same or an equivalent type recommended by the manufacturer (CR2032).

  • Page 93: Chapter 6 Advanced Chassis Setup

    Chapter 6: Advanced Chassis Setup Chapter 6 Advanced Chassis Setup This chapter covers the steps required to install components and perform maintenance on the SC748TQ-R1K43BP chassis. For component installation, follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the step that follows.

  • Page 94: Control Panel

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Figure 6-1. Front and Rear Chassis Views 5.25" PeripheralDrive Bays (3) Power Supplies (2) Control Panel USB Ports (2) Main Power System Reset SAS/SATA Drives (6) In Mobile Rack COM1 Port USB Ports VGA Port Standard Size PCI Slots (6) (4 on Motherboard) IPMI LAN Ethernet Ports...

  • Page 95: Confi Guring The Storage Module

    Chapter 6: Advanced Chassis Setup Confi guring the Storage Module This section covers confi guring the storage module for the SC748 chassis. The storage module can be confi gured for either tower or server rack confi gurations. Tower or Rack Confi guration The SC748 chassis is shipped in tower mode and can be immediately used as desktop server.
  • Page 96 SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Figure 6-4: Chassis Storage Module Rotating the Storage Module for Rack Mounting 1. Open the chassis cover. 2. Locate the storage module and disconnect any cables from the storage module to any component in the chassis. 3.

  • Page 97: Adding Drives To The Storage Module

    Chapter 6: Advanced Chassis Setup Figure 6-5: Remove the Storage Module Storage Module Storage Module Release Lever Adding Drives to the Storage Module The storage module includes three full sized drive bays and the front LED panel. The storage module can be set up in a variety of confi gurations: There are three basic confi...
  • Page 98 SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Installing Hard Drives into the Drive Tray 1. Open the chassis cover. 2. Locate the drive tray you want to replace and pull the tray release tab for the slot. 3. Push the drive tray toward the front of the chassis (Figure 6-6). Figure 6-6: Remove Drive Tray Drive Tray Release Tabs...
  • Page 99 Chapter 6: Advanced Chassis Setup Figure 6-7: Add a Hard Drive to the Drive Tray Hard Drive Tray Hard Drive Adding Peripheral Drives (DVD-ROM, CD-ROM, Floppy Drive, etc.) to the Drive Trays 1. Open the chassis cover. 2. Locate the drive tray release tab for the slot you want to place the peripheral drive (see Figure 6-6).

  • Page 100: Adding Five Hard Drives To A Supermicro Mobile Rack

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Figure 6-8: Add Hard Drive Rails to the DVD-ROM Drive Hard Drive Tray Hard Drive Rails Adding Five Hard Drives to a Supermicro Mobile Rack: The SC748 chassis accepts a CSE-M35BP mobile rack in order to install hot swappable hard drives.
  • Page 101 Chapter 6: Advanced Chassis Setup Figure 6-9: Removing the Drive Bay Drive Tray Release Tabs 4. Install all six storage module rails onto the mobile rack. Each rail requires two screws. Make sure the arrow on the rail points toward the front of the chassis (Figure 6-10).

  • Page 102: Installing Hard Drives

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Installing Hard Drives The drives are mounted in drive carriers to simplify their installation and removal from the chassis. These carriers also help promote proper airfl ow for the drive bays. Installing Hard Drives 1. Press the release button to extend the drive tray handle. 2.
  • Page 103 Chapter 6: Advanced Chassis Setup Figure 6-12: Removing the Dummy Drive Tray Drive Tray SAS/SATA or SCSI Hard Drive 5. Secure the hard drive to the tray using four screws (Figure 6-13). Figure 6-13: Installing the Hard Drive 6. Insert the hard drive into the chassis. To do this: a.

  • Page 104: Add-On Card/Expansion Slot Setup

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Add-on Card/Expansion Slot Setup After motherboard installation, install add-on cards to the chassis, such as PCI cards. Installing Add-on and Expansion Cards 1. Locate the release tab on the top of the PCI bracket. 2. Gently apply pressure in the middle of the release tab to unlock the PCI Slot bracket.
  • Page 105 Chapter 6: Advanced Chassis Setup 4. Remove the screw holding the bracket in place and pull the bracket from the chassis (Figure 6-15). Figure 6-15: Remove PCI Card Slot Guard 5. Install your PCI card or other add-on card into the PCI slot bracket and motherboard.

  • Page 106: Installing The Air Shroud

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Installing the Air Shroud Air shrouds concentrate airfl ow to maximize fan effi ciency. The SC748 chassis air shroud does not require screws to set it up. The SC748 chassis supports two different air shroud designs, one for AMD CPUs and, and another for Intel CPUs.

  • Page 107: System Fans

    Chapter 6: Advanced Chassis Setup System Fans Six heavy duty fans provide cooling for the chassis. Three fans are located in the front of the chassis and three fans are in the rear. These fans circulate air through the chassis as a means of lowering the internal temperature of the chassis. The fans come pre-installed to the chassis.

  • Page 108: Replacing A Rear Chassis Fan

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Replacing a Rear Chassis Fan Rear Fan Replacement Procedure (Figure 6-19) 1. Press the rear fan release tab. 2. Pull the fan from the chassis top fi rst. 3. Place the new fan in the chassis bottom fi rst. 4.

  • Page 109: Power Supply

    Chapter 6: Advanced Chassis Setup Power Supply Depending on your chassis model, the SC748 Chassis has a 1400 Watt (redundant) power supply. This power supply is auto-switching capable. This enables it to automatically sense and operate at a 100v to 240v input voltage. An amber light will be illuminated on the power supply when the power is off.
  • Page 110 SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Figure 6-20: Removing a Power Supply Pull the Drive Out Using the Handle Press the Release Button 6-18...

  • Page 111: Chapter 7 Bios

    Chapter 7: BIOS Chapter 7 BIOS Introduction This chapter describes the AMI BIOS Setup Utility for the SuperServer 8047R-TRF+/7RFT+. The 16 MB SPI AMI BIOS® SM Flash BIOS is stored in a Flash EEPROM and can be easily updated. This chapter describes the basic navigation of the AMI BIOS Setup Utility setup screens.

  • Page 112: Advanced Settings Menu

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL System Time This item displays the system time in HH:MM:SS format (e.g. 15:32:52). Supermicro X9QR7-TF+ Displays the serverboard number. Version This item displays the SMC version of the BIOS ROM used in this system. Build Date This item displays the date that the BIOS ROM was built.
  • Page 113 Chapter 7: BIOS Interrupt 19 Capture Interrupt 19 is the software interrupt that handles the boot disk function. When this item is set to Immediate, the ROM BIOS of the host adaptors will immediately "capture" Interrupt 19 at bootup and allow the drives that are attached to these host adaptors to function as bootable disks.
  • Page 114 SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL CPU Confi guration This submenu displays the information of the CPU as detected by the BIOS. It also allows the user to confi gure CPU settings.  Socket 1 CPU Information/Socket 2 CPU Information/ Socket 3 CPU Information/ Socket 4 CPU Information This submenu displays the following information regarding the CPUs installed in Socket 1/ Socket 2/ Socket 3/ Socket 4.
  • Page 115 Chapter 7: BIOS RTID (Record Types IDs) This feature displays the total number of Record Type IDs for local and remote pools. The options are Optimal and Alternate. Hyper-threading Select Enabled to support Intel Hyper-threading Technology to enhance CPU performance. The options are Enabled and Disabled. Active Processor Cores Set to Enabled to use a processor's second core and above.
  • Page 116 SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL DCU Streamer Prefetcher (Available when supported by the CPU) Select Enabled to support Data Cache Unite (DCU) prefetch of L1 data to speed up data accessing and processing in the DCU to enhance CPU performance. The options are Disabled and Enabled. DCU IP Prefetcher Select Enabled for DCU (Data Cache Unit) IP Prefetcher support, which will prefetch IP addresses to improve network connectivity and system...
  • Page 117 Chapter 7: BIOS P-STATE Coordination This feature selects the type of coordination for the P-State of the processor. P-State is a processor operational state that reduces the processor's voltage and frequency. This makes the processor more energy effi cient, resulting in further gains.

  • Page 118: North Bridge

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Long Duration Power Limit This item displays the power limit (in watts) set by the user during which long duration power is maintained. The default setting is 0. Factory Long Duration Maintained This item displays the period of time (in seconds) set by the manufacturer during which long duration power is maintained.
  • Page 119 Chapter 7: BIOS Data Direct I/O Select Enabled to enable Intel I/OAT (I/O Acceleration Technology), which signifi cantly reduces CPU overhead by leveraging CPU architectural improvements and freeing the system resource for other tasks. The options are Disabled and Enabled. DCA Support When set to Enabled, this feature uses Intel's DCA (Direct Cache Access) Technology to improve data transfer effi...
  • Page 120 SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL CPU 1 PCIe Slot 3 Link Speed Select GEN1 to enable PCI-Exp Generation 1 support for Slot 3. Select GEN2 to enable PCI-Exp Generation 2 support for Slot 3. Select GEN3 to enable PCI-Exp Generation 3 support for Slot 3. The options are GEN1, GEN2, and GEN3.
  • Page 121 Chapter 7: BIOS DIMM Confi guration This section displays the following DIMM information. Current Memory Mode This item displays the current memory mode. Current Memory Speed This item displays the current memory speed. Mirroring This item displays if memory mirroring is supported by the motherboard. Memory mirroring creates a duplicate copy of the data stored in the memory to enhance data security.
  • Page 122 SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL DDR Speed Use this feature to force a DDR3 memory module to run at a frequency other than what is specifi ed by the manufacturer. The options are Auto, Force DDR3-800, Force DDR3-1066, Force DDR3-1333, Force DDR3- 1600 and Force SPD.
  • Page 123 Chapter 7: BIOS Thermal Throttling Throttling improves reliability and reduces power consumption in the processor via automatic voltage control during processor idle states. The options are Disabled and CLTT (Closed Loop Thermal Throttling). South Bridge Confi guration This feature allows the user to confi gure the settings for the Intel PCH chip. PCH Information This feature displays the following PCH information.
  • Page 124 SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL SATA Confi guration When this submenu is selected, the AMI BIOS automatically detects the presence of IDE or SATA devices and displays the following items. SATA Port0~SATA Port5 The AMI BIOS displays the status of each SATA port as detected by the BIOS. SATA Mode Use this feature to confi...
  • Page 125 Chapter 7: BIOS RAID Mode The following items are displayed when RAID Mode is selected: Port 0~5 Hot Plug Select Enabled to enable hot-plug support for the particular port. The options are Enabled and Disabled. PCIe/PCI/PnP Confi guration PCI ROM Priority Use this feature to select the Option ROM to boot the system when there are multiple Option ROMs available in the system.
  • Page 126 SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL ASPM Support This feature allows the user to set the Active State Power Management (ASPM) level for a PCI-E device. Select Force L0s to force all PCI-E links to operate at L0s state. Select Auto to allow the system BIOS to automatically set the ASPM level for the system.
  • Page 127 Chapter 7: BIOS Super IO Confi guration Super IO Chip: This item displays the Super IO chip used in the motherboard. Serial Port 1 Confi guration Serial Port Select Enabled to enable a serial port specifi ed by the user. The options are Enabled and Disabled.

  • Page 128: Serial Port Console Redirection

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Device Mode Use this feature to select the desired mode for a serial port specifi ed. The options are Normal and High Speed. Serial Port 2 Attribute Use this feature to select the attribute for serial port 2. The options are SOL (Serial On LAN), and COM.
  • Page 129 Chapter 7: BIOS Data Bits Use this feature to set the data transmission size for Console Redirection. The options are 7 Bits and 8 Bits. Parity A parity bit can be sent along with regular data bits to detect data transmission errors.
  • Page 130 SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Putty KeyPad This feature selects Function Keys and KeyPad settings for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SC0, ESCN, and VT400. Serial Port for Out-of-Band Management/Windows Emergency Management Services (EMS) The submenu allows the user to confi...

  • Page 131: Acpi Settings

    Chapter 7: BIOS Flow Control This feature allows the user to set the fl ow control for Console Redirection to prevent data loss caused by buffer overfl ow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty.
  • Page 132 SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Trusted Computing (Available when a TPM device is detected by the BIOS) Confi guration TPM Support Select Enabled on this item and enable the TPM jumper on the motherboard to enable TPM support to improve data integrity and network security. The options are Enabled and Disabled.
  • Page 133 Chapter 7: BIOS CPU: TXT (Trusted Execution Technology) Feature Chipset: TXT (Trusted Execution Technology) Feature Intel TXT (LT-SX) Confi guration This feature displays the following TXT confi guration setting. TXT (LT-SX) Support This item indicates if the Intel TXT support is enabled or disabled. The default setting is Disabled.

  • Page 134: Event Logs

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Event Logs Use this feature to confi gure Event Log settings.  Change SMBIOS Event Log Settings This feature allows the user to confi gure SMBIOS Event settings. Enabling/Disabling Options SMBIOS Event Log Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot.
  • Page 135 Chapter 7: BIOS SMBIOS Event Log Standard Settings Log System Boot Event Select Enabled to log system boot events. The options are Disabled and Enabled. MECI (Multiple Event Count Increment) Enter the increment value for the multiple event counter. Enter a number between 1 to 255.

  • Page 136: Ipmi

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL IPMI Use this feature to confi gure Intelligent Platform Management Interface (IPMI) settings. IPMI Firmware Revision This item indicates the IPMI fi rmware revision used in your system. Status of BMC This item indicates the status of the IPMI fi rmware installed in your system. ...
  • Page 137 Chapter 7: BIOS  BMC Network Confi guration LAN Channel 1/LAN Channel 2: This feature allows the user to confi gure the settings for LAN1/LAN 2 Ports. Update IPMI LAN Confi guration This feature allows the user to decide if the BIOS should confi gure the IPMI setting at next system boot.

  • Page 138: Boot

    SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Boot This submenu allows the user to confi gure the following boot settings for the system. Boot Option Priorities Boot Option #1/ Boot Option #2/ Boot Option #3, etc. Use this feature to specify the sequence of boot device priority. Network Device BBS Priorities, Hard Drive BBS Priorities, USB Device BBS Priorities This option sets the order of the legacy network and hard disk devices detected...

  • Page 139: Save & Exit

    Chapter 7: BIOS Save & Exit This submenu allows the user to confi gure the Save and Exit settings for the system. Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system confi guration, and reboot the computer. Select Discard Changes and Exit, and press <Enter>.
  • Page 140 SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Save as User Defaults Select this feature and press <Enter> to save the current settings as the user's defaults. When the dialog box appears, asking you if you want to save values as user's defaults, click Yes to save the current values as user's default settings, or click No to keep the defaults previously saved as the user's defaults.

  • Page 141: Appendix A Bios Error Beep Codes

    Appendix A: BIOS Error Beep Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process.
  • Page 142 SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Notes...

  • Page 143: Appendix B System Specifi Cations

    Appendix B: System Specifi cations Appendix B System Specifi cations Processors Quad Intel E5-4600 (V2) Series series (Socket R-LGA 2011 type) processors Note: In order to install the E5-4600 (V2) Series CPU, you must make sure that BIOS 3.0 version is installed to your system. Note: You must install at least two processors for full functions to be supported.
  • Page 144 SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL Expansion Slots Four PCI low-profi le expansion card slots are available in the rear of the chassis for four (4) PCI Express 3.0 x16 slots (Slot3/Slot5) and two (2) PCI Express 3.0 x8 in x 16 slots (Slot2/Slot4) Serverboard X9QRi-F+/X9QR7-TF+ (Proprietary form factor) Dimensions: (LxW) 16.79 x 16.40 in.
  • Page 145 Appendix B: System Specifi cations Regulatory Compliance Electromagnetic Emissions: FCC Class A, EN 55022 Class A, EN 61000-3-2/-3- 3, CISPR 22 Class A Electromagnetic Immunity: EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11) Safety: CSA/EN/IEC/UL 60950-1 Compliant, UL or CSA Listed (USA and Canada), CE Marking (Europe) California Best Management Practices Regulations for Perchlorate Materials:...
  • Page 146 SUPERSERVER 8047R-TRF+/7RFT+ USER'S MANUAL (continued from front) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in signifi...

This manual is also suitable for:

Superserver 8047r-7rft+

Table of Contents
