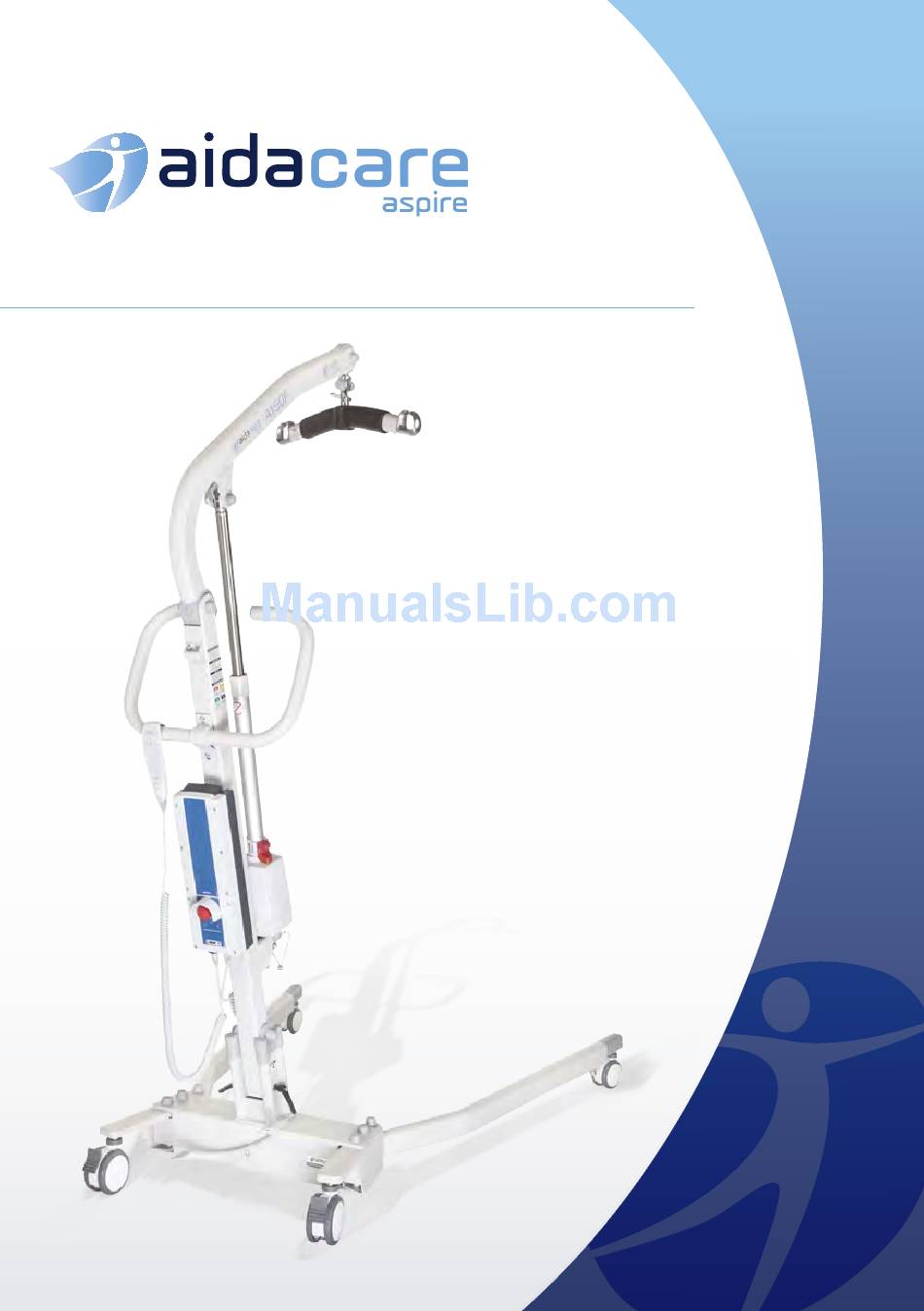

- Page 1 A150F Folding Lifter - Aluminium USER MANUAL...
-
Page 2: Table Of Contents

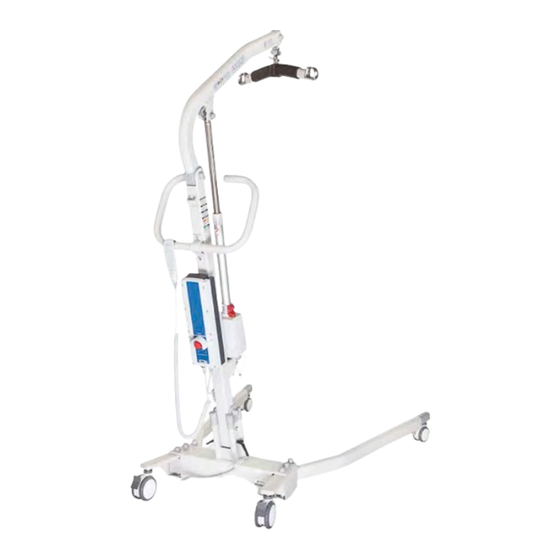

This mobile floor lifter is a safe care solution for in home care or institutional and aged care environments, and can be easily folded for transport or storage. The ASPIRE A150F Lifter allows patients to be transferred from Overview ____________________ floor positions, beds, chairs and other support surfaces with comfort and safety. -
Page 3: Safety Precautions
2. SAFETY PRECAUTIONS INTENDED USE OF THE PRODUCT SAFETY CONSIDERATIONS The ASPIRE A150F Lifter has been ALWAYS ensure that attendants have designed to lift and transfer human read this guide before operating this patients with the assistance of one carer patient lifter. -
Page 4: Parts Glossary
3. PARTS GLOSSARY 4. ASSEMBLY 1. Unpack Remove all parts from carton. 2. Mount handle Mount push handle onto mast in position shown and fasten screws with Allen key. Boom Quick Release Yoke Attachment Yoke Battery Control Unit Emergency Lowering Emergency Stop 3. -
Page 5: Folding Instructions
5. FOLDING INSTRUCTIONS 4. Connecting the actuator 1. Lower mast to lowest position and press a) Connect grey actuator lead into port (1) the RED safety stop button on the LINAK located on base of the control unit. Jumbo Care control unit. 2. -
Page 6: Preliminary Checks
8000 lift cycles. At this time the lifter needs to be serviced for safety and to maintain applicable warranty. A full load test should be completed at least every 12 months by an Aidacare service technician. www.aidacarelifters.com.au... - Page 7 Charging the battery turn off automatically when battery is fully charged. The ASPIRE A150F Lifter is supplied with a LINAK external wall mount charger and is compatible with standard Australian power outlets. CHARGING DOS AND DON’TS...
-
Page 8: Lifting Guide
8. LIFTING GUIDE 7. LIFTER OPERATION CONT. Castors It is important that carers are familiar with manual handling techniques along with any sling instructions prior to completing any patient lifts. All patients should have To engage the castor brake place the correct sling and transfer techniques assessed by a qualified health professional. - Page 9 CHAIR FLOOR Generally, a floor lift is only required in the event of a fall or emergency. Therefore it is 1. Patient sling positioning important that a medical professional has assessed the patient and given the all clear Ensure that the patient is ready, then for a lift to be carried out.
-
Page 10: Sling Compatibility
To confirm if a sling is use and care of patient lifters. compatible with any of the ASPIRE range of lifters contact AIDACARE on 1300 133 120. If inspection reveals that the safety of the lifter is jeopardized in any way the lifter should be IMMEDIATELY WITHDRAWN FROM SERVICE, tagged as such and the owner notified. -
Page 11: Warranty & Service
Before carrying out any troubleshooting: part assembly or portion thereof which shall be returned to AIDACARE and from OUR • CHECK TO ENSURE the RED emergency stop button is NOT pushed in. -
Page 12: Specifications
13. SPECIFICATIONS 13. SPECIFICATIONS (CONT.) Product Code LSS390600 Safe Working Load (SWL) 150kg Base Length 1280mm External Base Width 660-1040mm Internal Base Width 580-950mm Manual Base Width Adjustment 133mm Base Height / Under Bed Clearance 428mm Minimum Height of Spreader Bar ** Maximum Height of Spreader Bar** 1640mm Lifter Weight... -
Page 13: Service Log Book
____________________________________ Date: _________________________ ____________________________________ Date: _________________________ YEAR 3 Date: _________________________ SPARE PARTS Service Type: _______________________________________________________ SPARE PARTS LIST AVAILABLE UPON REQUEST FROM AIDACARE ON Condition Report: ___________________________________________________ 1300 130 122 or www.aidacarelifters.com.au ___________________________________________________________________ Inspected by: ____________________ Signature: _________________________ Action taken: _______________________________________________________... - Page 14 An old, worn out or faulty sling could be a significant safety risk for your organisation Aidacare’s Sling Audit Program can assist you to ensure your sling inventory is in safe working order at all times. Periodic sling audits are now a mandatory accreditation requirement.
- Page 15 Imported by: AIDACARE P/L | 4 Noonan Rd, Ingleburn NSW 2565 T – 1300 133 120 | W – www.aidacare.com.au ABUM02.09 060417...
