Summary of Contents for aidacare ASPIRE A205

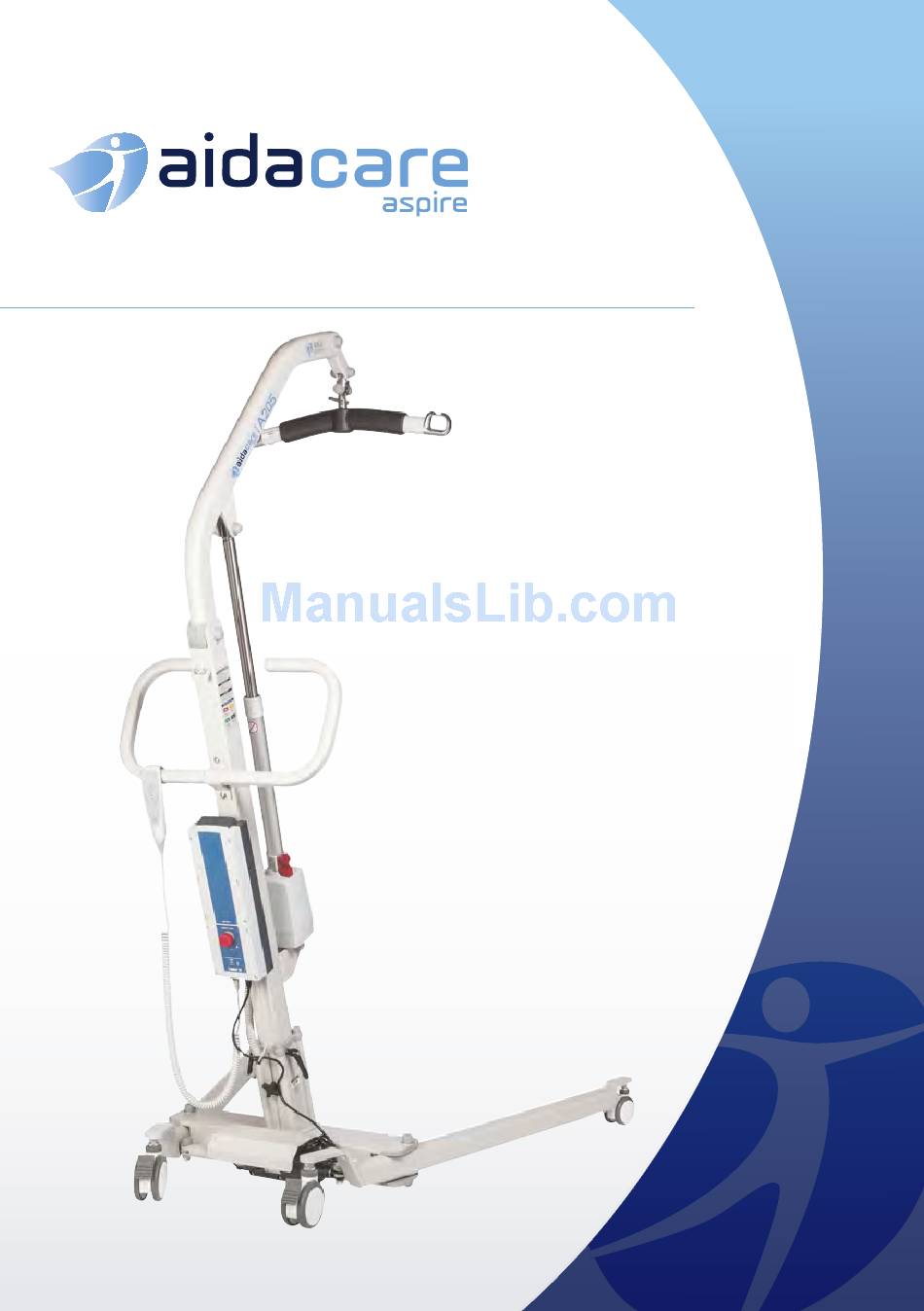

- Page 1 A205 Patient Lifter - Aluminium USER MANUAL...
-
Page 2: Table Of Contents

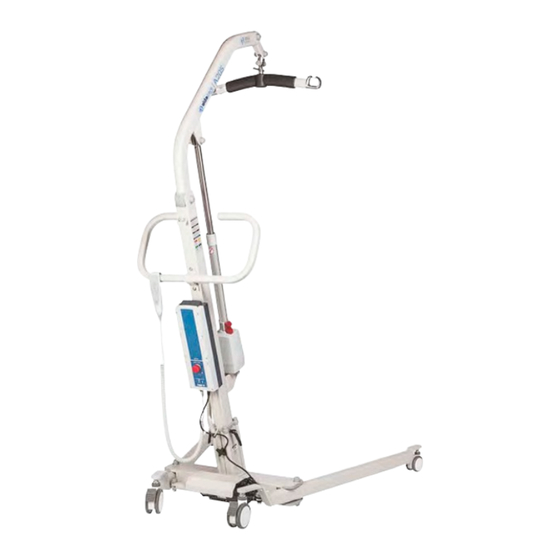

1. OVERVIEW IMPORTANT: Do not use the ASPIRE A205 Lifter without having first read this manual. The ASPIRE A205 Lifter is a compact and ergonomically designed heavy duty mobile patient lifter with a safe working load (SWL) of 205kg. TABLE OF CONTENTS This mobile floor lifter is a safe care solution for home care or institutional and aged care environments. -
Page 3: Safety Precautions
2. SAFETY PRECAUTIONS INTENDED USE OF THE PRODUCT SAFETY CONSIDERATIONS The ASPIRE A205 Lifter has been ALWAYS ensure that attendants have designed to lift and transfer human read this guide before operating this patients with the assistance of one carer patient lifter. -
Page 4: Parts Glossary
3. PARTS GLOSSARY 4. ASSEMBLY 1. Unpack Remove all parts from carton. 2. Set up mast a) Three alternative mounting holes are present for adjusting the height of the mast. Select the one most suited to Boom your application. Quick Release Yoke Attachment Yoke Battery Control Unit... - Page 5 4. ASSEMBLY CONT. 3. Mount handle Mount push handle onto mast in position shown and fasten screws with allen key. b) Connect the other end into the female lead from the actuator. 4. Attach the quick release yoke Pull down quick release lever, engage 6.
-
Page 6: Preliminary Checks
5. Check that all leads are inserted, fastened and clear of the rear castors. 6. LIFTER OPERATION Charging the battery Handset The ASPIRE A205 Lifter is supplied with a LINAK external wall mount charger and is Features: compatible with standard Australian power 1. - Page 7 6. LIFTER OPERATION CONT. Castors Charger will automatically activate the charging sequence To engage the castor brake place and a light will illuminate to your foot on the brake pedal and apply show charging has commenced. sufficient downward force to move it into the lock position.
-
Page 8: Lifting Guide
7. LIFTING GUIDE CHAIR It is important that carers are familiar with manual handling techniques along with any sling instructions, prior to completing any patient lifts. All patient’s should have 1. Patient sling positioning the correct sling and transfer techniques assessed by a qualified health professional. Explaining the lift process to the patient is important to ensure patient comfort Ensure that the patient is ready, then and confidence and whenever possible two carers should conduct patient lifts for... -
Page 9: Sling Compatibility
To confirm if a sling is lift to be carried out. compatible with any of the ASPIRE range of lifters, contact AIDACARE on 1300 133 120. 1. Patient Sling Positioning After rolling the patient on their side, position the sling along the full length of the back and head (if a head support model is being used). -
Page 10: Care & Maintenance
AIDACARE and from OUR inspection shows to be defective. If inspection reveals that the safety of the lifter is jeopardised in any way the lifter should be IMMEDIATELY WITHDRAWN FROM SERVICE, tagged as such 1. -
Page 11: Troubleshooting
11. TROUBLESHOOTING 12. SPECIFICATIONS WARNING: TROUBLESHOOTING SHOULD ONLY BE CARRIED OUT BY AIDACARE AUTHORISED SERVICE TECHNICIANS WHO ARE TRAINED IN SERVICING THE Product Code LSS390610 ELECTRICAL AND MECHANICAL FEATURES OF THE PATIENT LIFTER. Safe Working Load (SWL) 205kg The following is a guideline only to general troubleshooting. -
Page 12: Service Log Book
13. SERVICE LOG BOOK 12. SPECIFICATIONS (CONT.) YEAR 1 Date: _________________________ Service Type: _______________________________________________________ Condition Report: ___________________________________________________ ___________________________________________________________________ Inspected by: ____________________ Signature: _________________________ Action taken: _______________________________________________________ Date: _________________________ YEAR 2 Date: _________________________ Service Type: _______________________________________________________ Condition Report: ___________________________________________________ ___________________________________________________________________ Inspected by: ____________________ Signature: _________________________ Action taken: _______________________________________________________ Date: _________________________ YEAR 3... - Page 13 AIDACARE PTY LTD 4 Noonan Road, Ingleburn NSW 2565 1300 133 120 www.aidacare.com.au MADE IN CHINA ABUM09.04 060417...
