Summary of Contents for aidacare A150F

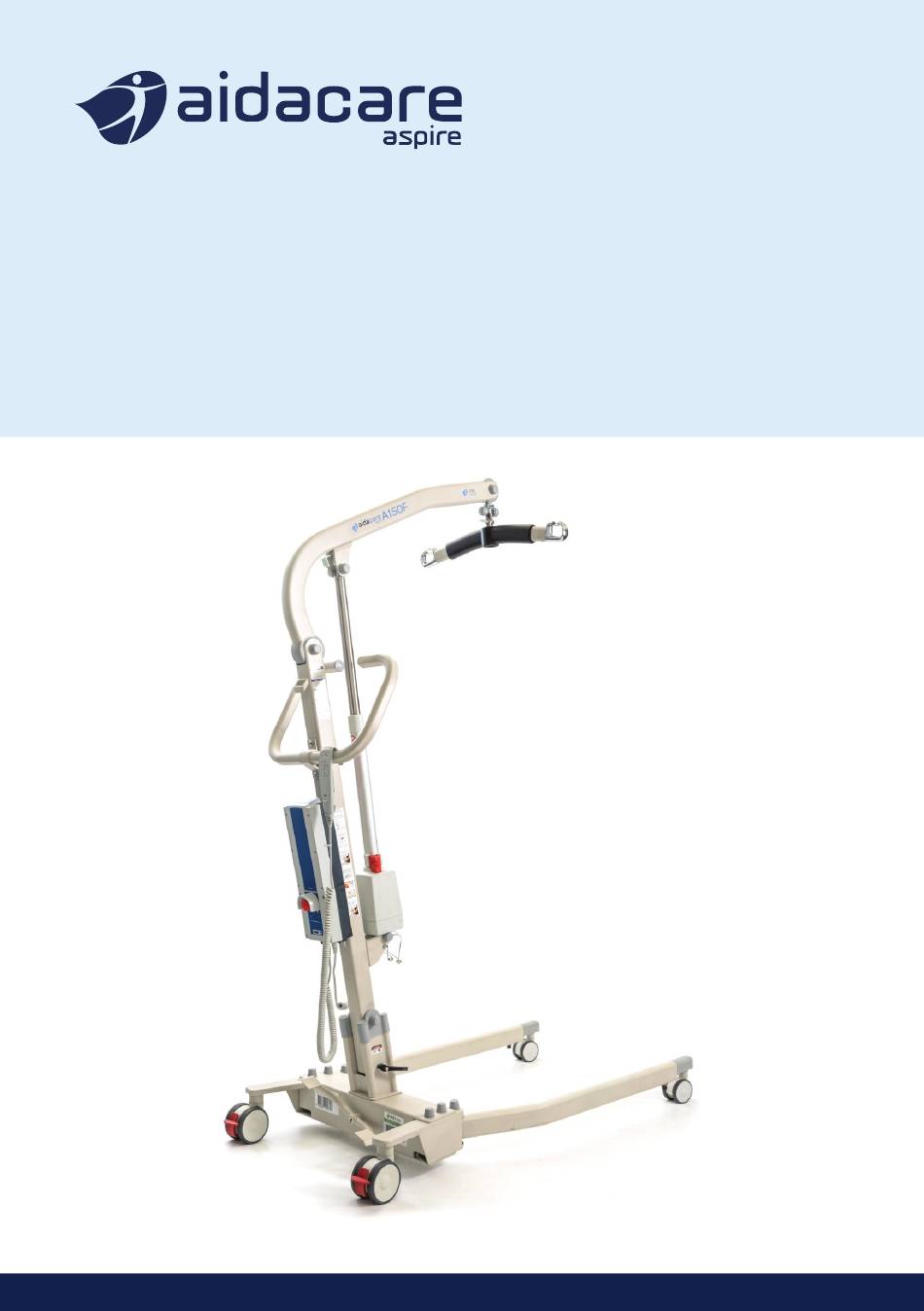

- Page 1 A150F ALUMINIUM FOLDING LIFTER USER MANUAL...
-
Page 2: Table Of Contents
11. Lifting Guide 12. Sling Compatibility 13. Care & Maintenance 14. Compliance IMPORTANT: Do not use the Aidacare Aspire A150F Folding Lifter without having first read this manual. WARNING 15. Warranty & Service This product Features the UKCA mark, in compliance with Part II UK MDR 2002 (as amended) Class 1. -
Page 3: Symbols Used In This Manual
The A150F Folding Lifter allows patients to be transferred from floor positions, beds, chairs and other support surfaces with comfort and safety. Despite its compact design the hinged rotating yoke on the A150F Folding Lifter generates more efficient patient space allowing a patient to be rotated through 360°... -
Page 4: Safety Precautions And Warnings
Under load this can result in the patient to free fall and risks catastrophic injury to the patient The A150F Folding Lifter has been designed to lift and transfer human patients and/or carer. with the assistance of one carer or attendant. -
Page 5: Parts Glossary
6. PARTS GLOSSARY 7. ASSEMBLY 1. Unpack Remove all parts from carton. 2. Apply thread locker / loctite a) Locate actuator mounting hardware. b) Install actuator hardware. A few drops of medium strength thread locker / loctite must be applied to the bolt threads. 3. -
Page 6: Folding Instructions
8. FOLDING INSTRUCTIONS 5. Connecting the actuator a) Connect grey actuator lead into port (1) located on base of the control unit. Bring the boom 2. Pull the pin at the 3. Undo base fastening down and secure the centre and close lever bolt. -
Page 7: Preliminary Checks
5. Check that all leads are inserted, fastened and clear of the rear castors. 10. LIFTER OPERATION Handset Charging the battery Features: The A150F Folding Lifter is supplied with a LINAK external wall mount charger and Raise / Lower function buttons is compatible with standard Australian 2. Battery charge indicators power outlets. - Page 8 Castors Charger will automatically activate the charging sequence and a light To engage the castor brake place will illuminate to show charging has your foot on the brake pedal and apply commenced. sufficient downward force to move it into the lock position. CHARGING INDICATOR DISPLAY GREEN LIGHT indicates mains power is connected...
-
Page 9: Lifting Guide
11. LIFTING GUIDE 3. Lifting the user It is important that carers are familiar with manual handling techniques along with any sling instructions prior to completing any patient lifts. All patients Before commencing, ensure that the should have the correct sling and transfer techniques assessed by a qualified rear castor brakes are off, so that the health professional. - Page 10 2. Attaching the sling to the yoke FLOOR Ensure that the lifter legs are open Generally, a floor lift is only required in the event of a fall or emergency. to the appropriate width and slowly Therefore, it is important that a medical professional has assessed the user and position it as close to the front of the given the all clear for a lift to be carried out.
-
Page 11: Sling Compatibility
To confirm if a sling is compatible with any of the Aidacare Aspire range of lifters, If inspection reveals that the safety of the lifter is jeopardized in any way the contact Aidacare. -
Page 12: Warranty & Service
Patient Lifter Frame – 5 years Any customisation or modification of the lifter is not warranted by Aidacare and 2. LINAK Actuator and LINAK Controller – 3 years (excluding Battery Pack) will void the warranty. -
Page 13: Product Specifications
17. PRODUCT SPECIFICATIONS PROBLEM POTENTIAL FAULT ACTION Product Code LSS390600 LSS390600-UK • Warning alarm can be • Battery is discharged • Recharge battery Safe Working Load (SWL) 150kg 23.5st heard in control unit • Battery may be faulty • Replace battery Base Length 1280mm 50.5"... -
Page 14: Recycling
Manufacturer: Aidacare Pty Ltd ABN 40 134 398 833 Building 3A, 1 Moorebank Avenue, Moorebank NSW 2170 Australia 1300 133 120 | product@aidacare.com.au EU Representative: European Healthcare & Device Solutions (Ireland) Ltd Stratton House, Bishopstown Road, Cork T12 Y9TC Ireland Max. - Page 15 AIDACARE PTY LTD Building 3A, 1 Moorebank Avenue, Moorebank NSW 2170 Australia 1300 133 120 | aidacare.com.au AIDACARE LIMITED Arcadia House, Maritime Walk, Ocean Village, Southampton SO14 3TL United Kingdom 01622 541235 | aidacare.co.uk MADE IN PRC ABUM02.23 131223...
