Summary of Contents for Chauvet SlimStrip UV-18 IRC

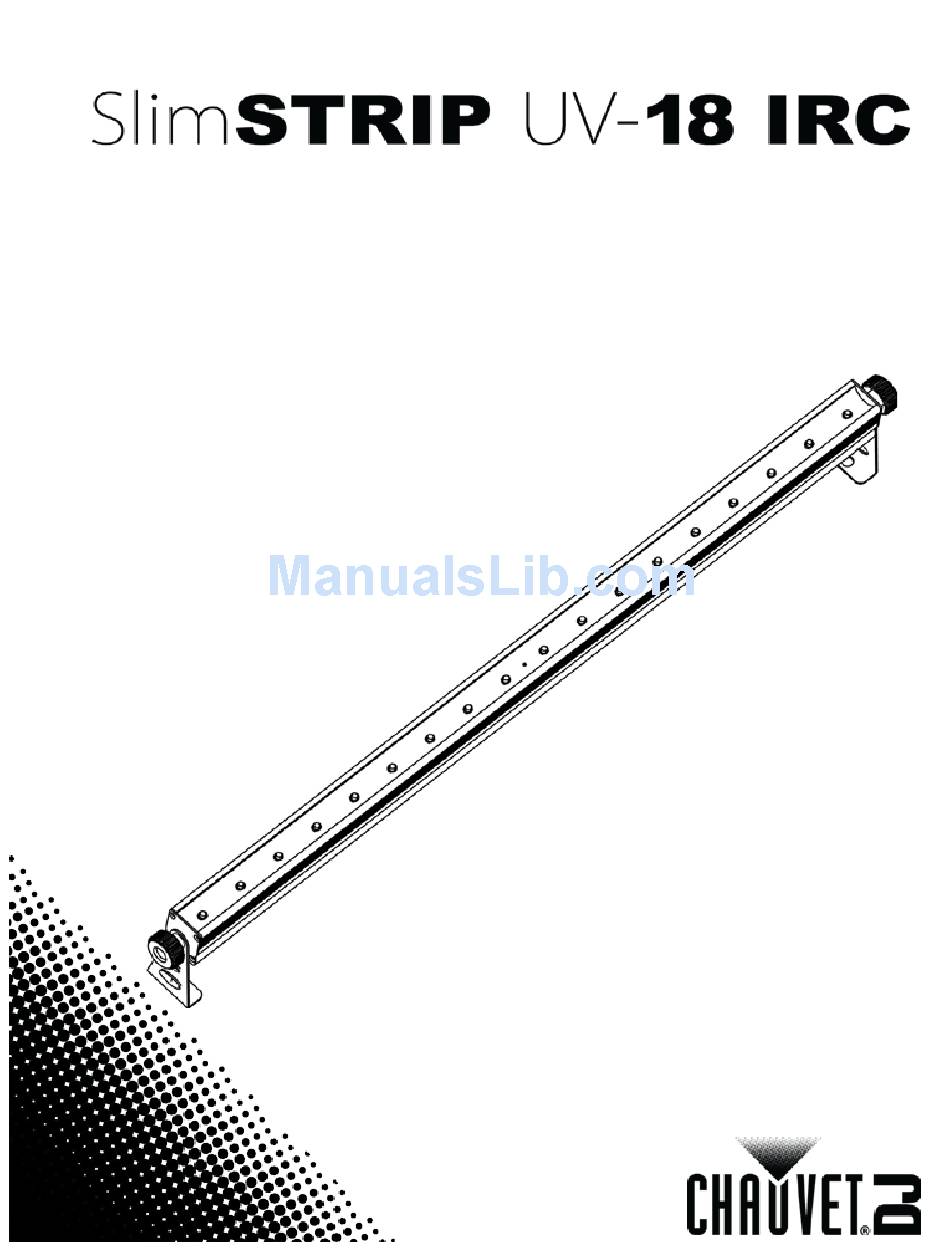

- Page 1 User Manual...
-
Page 2: Table Of Contents
Turning Infrared On/Off ......................... 10 IRC-6 Operation............................ 10 Master/Slave Mode ..........................11 5. Maintenance .........................12 Product Maintenance ........................12 6. Technical Specifications ....................13 Returns ............................14 Contact Us ........................15 Page 2 of 15 SlimSTRIP UV-18 IRC User Manual Rev. 2... -
Page 3: Before You Begin
Useful information. Disclaimer Chauvet believes that the information contained in this manual is accurate in all respects. However, Chauvet assumes no responsibility and specifically disclaims any and all liability to any party for any loss, damage or disruption caused by any errors or omissions in this document, whether such errors or omissions result from negligence, accident or any other cause. -
Page 4: Product At A Glance
· Keep this User Manual for future use. If you sell the product to someone else, be sure that they also receive this document. Page 4 of 15 SlimSTRIP UV-18 IRC User Manual Rev. 2... -
Page 5: Introduction
2. I NTRODUCTION Product Overview Fuse Holder Control Buttons DMX In/Out Safety Loop LED Display Microphone Power Out Power In IR Sensor SlimSTRIP UV-18 IRC User Manual Rev. 2 Page 5 of 15... -
Page 6: Product Dimensions
Product Dimensions 5 in 126 mm 41.9 in 1,064 mm 5 in 126 mm 2.3 in 60 mm Page 6 of 15 SlimSTRIP UV-18 IRC User Manual Rev. 2... -
Page 7: Setup
Product Other products You can power link up to 17 SlimSTRIP UV-18 IRC units on 120 VAC or up to 34 SlimSTRIP UV-18 IRC units on 230 VAC. The power linking diagram corresponds to the North American version of the... -
Page 8: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The SlimSTRIP UV-18 IRC may be mounted in any position; however, make sure adequate ventilation is provided around the product. · Rigging Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming purposes. -
Page 9: Operation
Sets the Sound-Active mode Sound Sensitivity SenS u 0–u100 Selects the sound sensitivity Infrared Turns infrared on or off DMX Linking The SlimSTRIP UV-18 IRC works with a DMX controller. Information about DMX is in the CHAUVET® Primer, which available from Chauvet website: http://www.chauvetlighting.com/downloads/DMX_Primer_rev05_WO.pdf... -
Page 10: Configuration (Standalone)
The IRC-6 will not respond to any inputs when Black Out is activated. If the remote does not respond when a button is pressed, try pressing <BLACK OUT>. You may have inadvertently activated Black Out. Page 10 of 15 SlimSTRIP UV-18 IRC User Manual Rev. 2... -
Page 11: Master/Slave Mode
Master/Slave The Master/Slave mode allows a single SlimSTRIP UV-18 IRC unit (the master) to control the actions of one or more SlimSTRIP UV-18 IRC units (the slaves) without the need of a Mode DMX controller. The master unit will be set to operate in either Custom or Sound-Active mode, while the slave units will be set to operate in Slave mode. -
Page 12: Maintenance
Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Page 12 of 15 SlimSTRIP UV-18 IRC User Manual Rev. 2... -
Page 13: Technical Specifications
Thermal Maximum External Temp. Cooling System 104 °F (40 °C) Convection I/O Connectors Channel Range 3-pin XLR Ordering Product Name Item Code UPC Number SlimSTRIP UV-18 IRC 03030811 781462211592 SlimSTRIP UV-18 IRC User Manual Rev. 2 Page 13 of 15... -
Page 14: Returns
You must send the merchandise prepaid, in its original box, and with its original packing and accessories. Chauvet will not issue call tags. Clearly label the package with the RMA number. Chauvet will refuse any product returned without an RMA number. -
Page 15: Contact Us
Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact the dealer of record. SlimSTRIP UV-18 IRC User Manual Rev. 2 Page 15 of 15...
