Assembly
Section 2
2.1 — Unpacking
•
Remove all packaging material.
•
Remove separate accessory kit box.
•
Remove generator from carton.
2.1.1— Accessory Kits
Check contents against the list in Table 2-1. If any parts
are missing or damaged, or if any problems occur during
assembly, call the Generator Helpline at 1-888-436-3722.
Table 2-1. Contents
Parts Description
General
Generator
Battery Charger
Extension Cord (20 Foot)
Owner's Manual
Product Registration Card
(English, Spanish, and French)
Warranty and Emission Sheets
Wheel Kit
Axle Pin
Never-Flat Wheel
5/8" Flat Washer
Cotter Pin
Frame Feet Kit
M8 Hex Head Bolt
Frame Foot
M8 Hex Flange Nut
M6 Hex Head Bolt
Rubber Foot
M6 Hex Flange Nut
Folding/Locking Handle Kit
Handle
M8 Acorn Nut
M8 Button Head Bolt
Owner's Manual for Portable Generator
2.2 — Install Accessory Kits
The generator requires some minor assembly before
use.
2.2.1— Tools Required
Obtain the following tools:
•
3/8 Drive Ratchet
• Sockets: 13 mm, 12 mm, 8 mm
• Wrenches: 13 mm, 10 mm, 8 mm (2)
• Needle Nosed Pliers
Quantity
2.2.2— Install Wheel Kit
The wheels are specially designed to enhance portability.
1
NOTE: The wheels are not intended for over-the-
1
road-use.
1
See Figure 2-1. Install wheels as follows:
1
Slide Axle Pin through Wheel, wheel frame bracket
1.
and 5/8" Flat Washer.
3
Insert Cotter Pin through Axle Pin. Use needle
2.
nosed pliers to open Cotter Pin.
1
2
2
2
2
4
2
4
2
2
2
1
2
2
5/8" Flat Washer
Cotter Pin

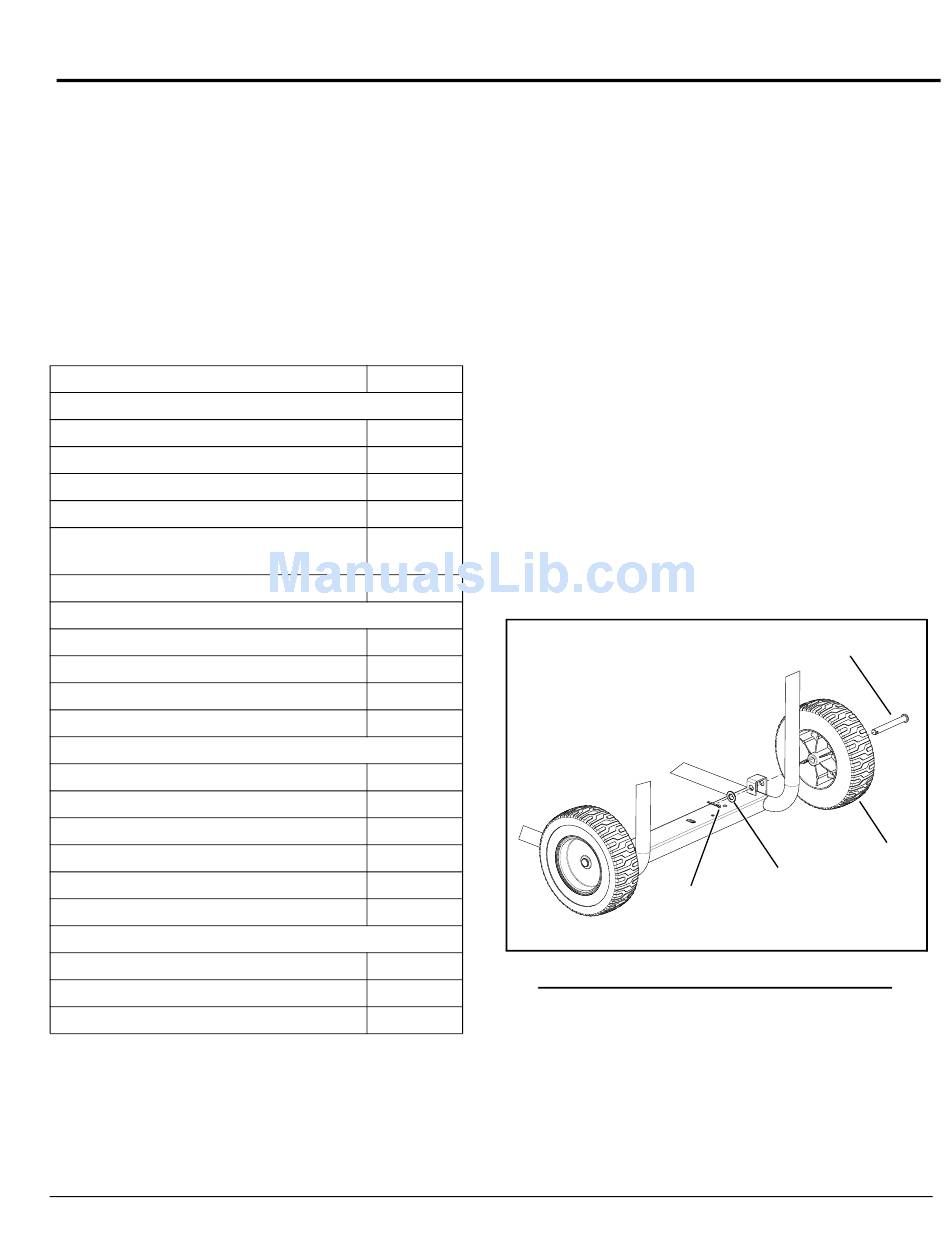

Figure 2-1. Wheel Assembly
Axle Pin
Wheel
5
