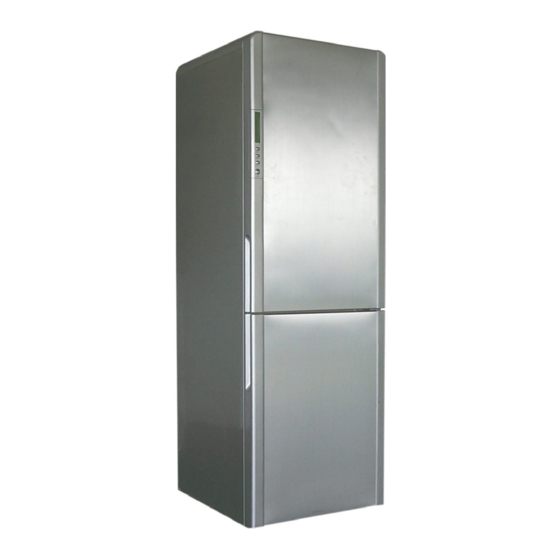

HRF-288K/318K/348K-SERIES
Service Manual
Features
l More reasonable compare between quality and price
l Drawer storage in freezer
l Low noise design
l keeping-moisture crisper
l CFC-free design
l Many series for your selections and Low price
Serial number: ER03SM0119-02
Refrigerator
REFRIGERATOR
Haier Group
0
HRF-288K/318K/348K
Version number: 00.00
Edition: 2003-05-02
Advertisement
Table of Contents
Related Manuals for Haier HRF-288K Series
Summary of Contents for Haier HRF-288K Series
- Page 1 More reasonable compare between quality and price l Drawer storage in freezer l Low noise design l keeping-moisture crisper l CFC-free design l Many series for your selections and Low price Haier Group Serial number: ER03SM0119-02 Version number: 00.00 Edition: 2003-05-02...
-
Page 2: Table Of Contents
Refrigerator HRF-288K/318K/348K CONTENT CONTENT 1. Con tent… …………………………………………………. 2. Product code illumination and Series Introduction…… 2 3. Specifications……………………….……..……………………. 3 4. Safety precautions……………………………………….……... 4 5. Parts and Functions…………………………………………. 6. Function Schedule……………………………..…….………. 8 7. System Flow Chart……………..………………………...…… 9 8. Circuit Diagram………………………………..….….….…… 10 9. -
Page 3: Product Code Illumination And Series Introduction
Product code illumination and Series Introduction F — Family Line K series Gross capacity (according to export country standard) Freezer Refrigerator Haier product F — Family Line K series Gross capacity (according to export country standard) Freezer Refrigerator Haier product F —... -
Page 4: Specifications
Refrigerator HRF-288K/318K/348K Specifications Specifications Models HRF-288k HRF-318k HRF-348k Net capacity (L) Color Grey Grey Grey Power Supply (V/Hz) 220-240~/50 220-240~/50 220-240~/50 Rated Input Power Power Consumption (kW.·h/24h) 0.77 0.79 0.81 Net Weight (kg) Gross Weight (kg) Unit Dimension (D*W*H) (mm) 615*550*1555 615*550*1650 623*600*1650... -
Page 5: Safety Precautions
Refrigerator HRF-288K/318K/348K Safety precautions Safety precautions Safety precautions... - Page 6 Refrigerator HRF-288K/318K/348K Safety precautions...
- Page 7 Refrigerator HRF-288K/318K/348K Parts and Functions...
-
Page 8: Parts And Functions
Refrigerator HRF-288K/318K/348K Parts and Functions... -
Page 9: Function Schedule
Refrigerator HRF-288K/318K/348K Function Schedule Function Schedule More beneficial for you Drawer storage in freezer Low noise design More beneficial for you keeping-moisture crisper CFC-free design... -
Page 10: System Flow Chart
Refrigerator HRF-288K/318K/348K System Flow Chart System Flow Chart 1 Schematic diagram of System Flow Char HRF-288K/318K 1 Compressor 2 Hot Tube 3 Condenser 4 Dry Filter 5 electromagnetism valve I 6 electromagnetism valve 7 Evaporator for frezzer Compartment II 8 Evaporator for Refrigerator Compartment 9 Evaporator for frezzer Compartment I 2 Brief Description of System Flow Chart The refrigerating system (for HRF-288K/318K/348K SERIES) of direct... -
Page 11: Circuit Diagram
Refrigerator HRF-288K/318K/348K Circuit Diagram Circuit Diagram Schematic Circuit Diagram... -
Page 12: Maintenance Service And Trouble Shooting
Refrigerator HRF-288K/318K/348K Maintenance Service and Trouble Shooting Maintenance Service and Trouble Shooting 1 No cooling N o cooling If com pressor C heck and repair according to can run after it stop to the section of "the com pessor run five m inutes and doesn't work".
