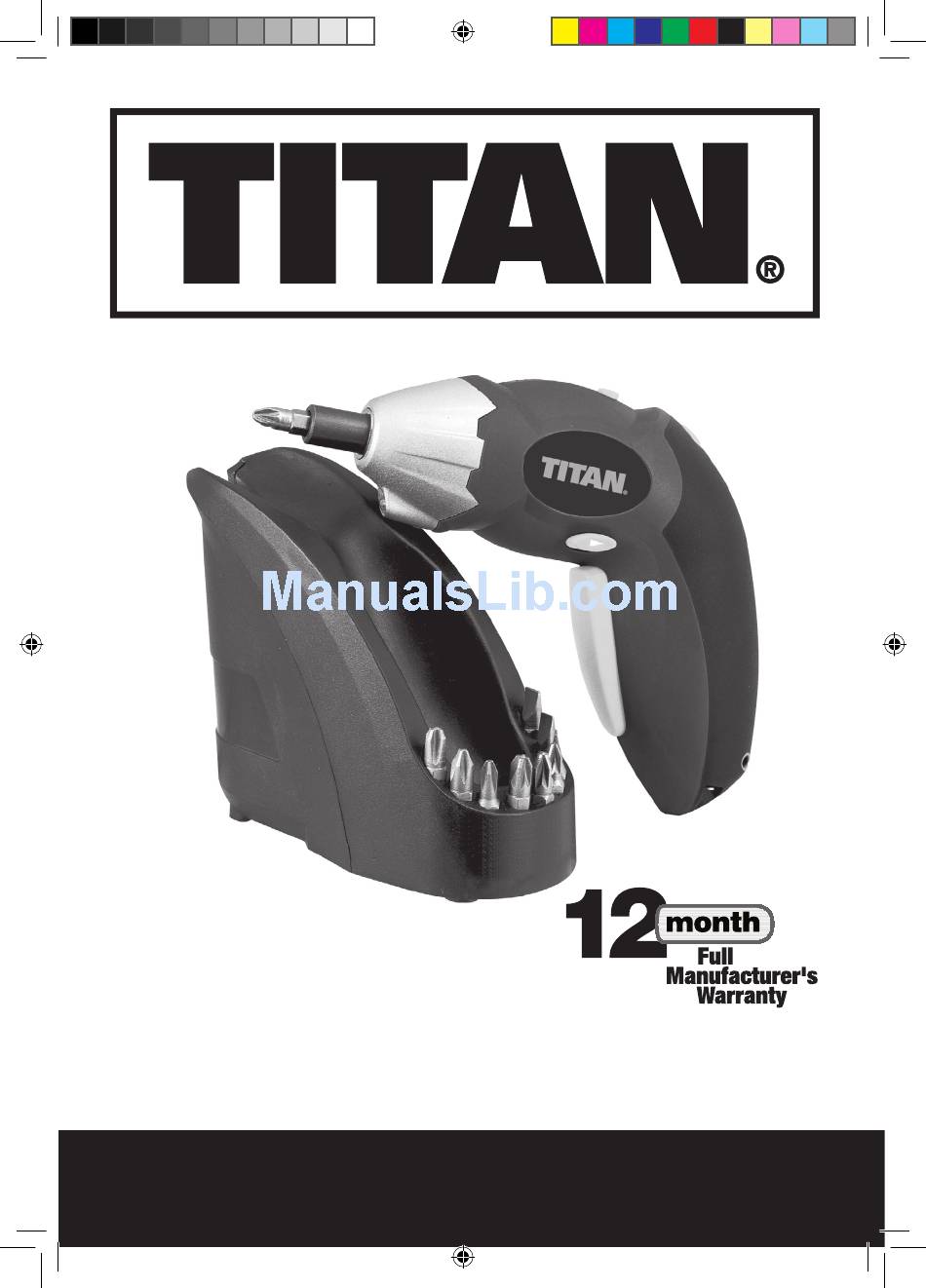

- Page 1 SAFETY AND OPERATING MANUAL 3.6V LITHIUM-ION SCREWDRIVER TTO054DDH CSD36L M-070924.indd 1 2007-9-24 14:02:31...
- Page 2 CSD36L M-070924.indd 2 2007-9-24 14:02:31...
- Page 3 Congratulations on your purchase of a power tool from Titan Power Tools (UK) Ltd. We want you to continue getting the best performance from it so this handbook includes information on safety, handling and care. Please retain this handbook in case you need to refer to any of the information in the future.
-
Page 4: Safety Instructions
SAFETY INSTRUCTIONS WARNING! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. SAVE THESE INSTRUCTIONS 1. Work area a. Keep work area clean and well lit.Cluttered and dark areas invite accidents. - Page 5 Use of any other battery packs may create a risk of injury and fire. d. When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects 3.6V LITHIUM-ION SCREWDRIVER TTO054DDH CSD36L M-070924.indd 5 2007-9-24 14:02:32...
- Page 6 that can make a connection from one terminal to another. Shorting the battery terminal together may cause burns or a fire. e) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.
- Page 7 14. Respect the polarity “+/-“ when charging. 15. Only use charger model numberTTB055CHR with this product. SYMBOLS Read the manual Warning Wear gloves Wear dust mask,eye & ear protection Conforms to relevant safety standards 3.6V LITHIUM-ION SCREWDRIVER TTO054DDH CSD36L M-070924.indd 7 2007-9-24 14:02:32...
- Page 8 1. CHUCK 2. BATTERY CHARGE DISPLAY 3. BATTERY CHARGE DISPLAY SWITCH 4. CHARGING INDICATOR 5. SIGHT LIGHT SWITCH 6. SOFT HANDLE 7. FORWARD/REVERSE SWITCH 8. ON / OFF SWITCH 9. SIGHT LIGHT 10. BATTERY CHARGING UNIT 11. BITS HOLDER 12. BITS CSD36L M-070924.indd 8 2007-9-24 14:02:33...
-
Page 9: Technical Data
NOISE AND VIBRATION DATA Sound pressure level: 68dB(A) Sound power level: 79dB(A) Vibration level: 0.331m/s ACCESSORIES 3-5hrs charger base (TTB055CHR) Screwdriver bits 9pcs Flat: 4,5,6mm 3pcs Cross: PZ1,PZ2.PZ3 3pcs Phillips:PH1,PH2,PH3 3pcs 3.6V LITHIUM-ION SCREWDRIVER TTO054DDH CSD36L M-070924.indd 9 2007-9-24 14:02:34... - Page 10 OPERATION INSTRUCTIONS Note: Before using the tool, read the instruction book carefully. 1. Recharging batteries a) Charging the battery The battery charger supplied is matched to the Li- ion battery installed in the machine. Do not use another battery charger. The Li-ion battery is protected against deep Fig 1 discharging.
- Page 11 Note the first time you use the Forward drill after changing rotation, you may hear a click when the drill is turned on, this normal and does not indicate a problem. Fig 4 Reverse Fig 5 3.6V LITHIUM-ION SCREWDRIVER TTO054DDH CSD36L M-070924.indd 11 2007-9-24 14:02:35...
-
Page 12: Automatic Spindle Lock
6. Battery capacity indicator (See Fig 6) You can press the battery charge display switch (3) to show the battery capacity. Press the switch When the battery charge display (2) lights up red the battery has less than 30% of its capacity and should be charged. -
Page 13: Plug Replacement
13 AMP FUSE BLUE N (NEUTRAL) BROWN L (LIVE) OUTER CABLE GRIP SLEEVE 3.6V LITHIUM-ION SCREWDRIVER TTO054DDH CSD36L M-070924.indd 13 2007-9-24 14:02:36... -
Page 14: Declaration Of Conformity
Declaration of Conformity We, Importer Titan Power Tools (UK) Ltd BA22 8RT Declare that the product 3.6V LITHIUM SCREWDRIVER TTO054DDH Complies with the essential health and safety requirements of the following directives: EC Machinery Directive 98/37/EC EC Low Voltage Directive 73/23/EEC amended by 93/68/EEC... - Page 15 3.6V LITHIUM-ION SCREWDRIVER TTO054DDH CSD36L M-070924.indd 15 2007-9-24 14:02:36...
- Page 16 CSD36L M-070924.indd 16 2007-9-24 14:02:36...
