Summary of Contents for CYP CDPS-CS6

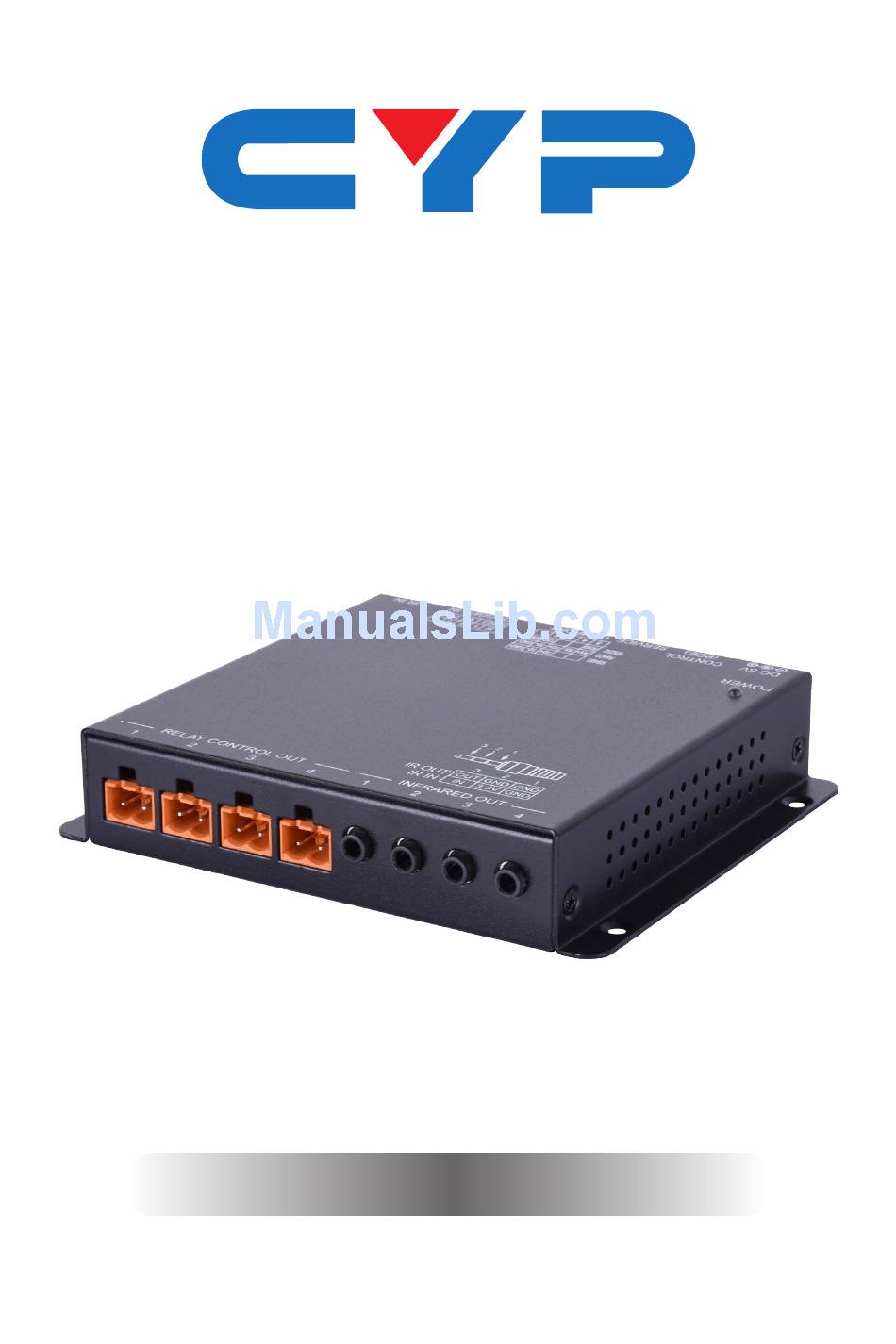

- Page 1 CDPS-CS6 Auxiliary Control System Operation Manual Operation Manual...
- Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 IR Pin Definition .........5 6.4 RS-232/Telnet Command List ..6 6.5 Software Application .......8 6.6 Telnet Control ........9... -
Page 5: Introduction
1. INTRODUCTION The Auxiliary Control System for user utilizing it to cover the devices which would like to be controlled. The benefit for this auxiliary control system makes daily life with more convenience. It comes with eight trigger in which support 4 events to trigger. Moreover, four sets of relay out and IR out to expand control coverage on desired devices. -
Page 6: Features
5. FEATURES • 8 trigger in to active 8 events such as device on/ off and active • 4 relay control out and IR out to control desired devices such as screen down/up, lighting on/off • IR In supported IR learner functions •... -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel IR OUT GND GND IR IN 3.3V INFRARED OUT RELAY CONTROL OUT RELAY CONTROL OUT 1~4: Connect with control device’s power ± line cable such as A/C sensor, IR sensor, or curtain sensor for control signal sending to activate the control devices. -
Page 8: Rear Panel
6.2 Rear Panel RS485 POWER RS422 RX+ RX- RS232 TXD GND 2 3 4 5 4 3 2 1 6 7 8 CONTROL DC 5V (POE) SERVICE COMPORT IR IN TRIGGER IN DC 5V: Plug the 5V DC power supply into the unit and connect the adaptor to an AC outlet. -
Page 9: Ir Pin Definition
6.3 IR Pin Definition IR Blaster Power IR Blaster Signal IR Extender IR Signal Power Grounding IR Learner IR Signal Power Grounding Note: Due to both IR Extender and IR Learner cables are with similar outlook, a part no. "CBL-IR10C3SA200A sticker has been placed to differentiate the difference on IR Learner. -
Page 10: Rs-232/Telnet Command List
Show Command List NONE HELP N Show Descript Of N : Command Name Command RELAY N N1 Relay Control N(PORT)= 1~4 N1=OPEN/CLOSE/ TOGGLE IREMITE N N1 IR Control N(Port) = IR1~IR4 N1 = CYP Pronto Data EX: IREMIT IR1 9333,0-157,AF,14,40,14,18 ,14,43,14,1B,14,0-... - Page 11 Command Name Description Parameter IRLEARN IR Learning NONE Command Note. It Will Return CYP Pronto Data When Send IR(30~50KHz) To IR In COMCONF N1 Driver COMPORT N(Mode)=R S485/RS42 2/ N2 N3 N4 Config RS232 N1=Bitrate (4800, 9600, 19200, 38400, 57600,...
-
Page 12: Software Application
6.5 Software Application Please download the software from our website with file name CDPS V2.000 and save it in a directory where you may use it later. Connect the Control System with an active network system and open the CDPS V2.000 application from the directory in a PC/Laptop. Click on Find Devices on Network and a list of the devices connected within the network system will show up. -
Page 13: Telnet Control
6.6 Telnet Control To access the Telnet control in Windows 7, click on the 'Start' menu and type "cmd" in the Search field then press enter. Under Windows XP go to the 'Start' menu and click on "Run", type "cmd" with then press enter. Under Mac OS X, go to Go→Applications→Utilities→Terminal See below for reference. - Page 14 Type "help" to list the available commands. Note: Commands will not be executed unless followed by a carriage return. Commands are case-insensitive. If the IP is changed then the IP Address required for Telnet access will also change accordingly.
-
Page 15: Webgui Control
6.7 WebGUI Control On a PC/Laptop that is connected to an active network system, open a web browser and type device’s IP address (default setting IP: 192.168.1.50 ) on the web address entry bar. A security page will appear to ask for User and Password, please key in “admin”... - Page 16 Click on the mark to edit the command settings. Up/down arrows are to move the command up or down and button is to delete the command. Click on Insert button/Add to insert commands. Command can be set to control the Control System/SysCMD, other devices connected within the same Telnet system/Internet area, RS-232 COM ports, IR and Relay devices connected through the Relay outputs of Control System with delay time.
- Page 18 6.7.2 Extension Macro Click on 'Extension Macro' to execute/edit more Macro action up to 8 more. 6.7.3 Command Settings Click on 'Command Settings' to edit or delete commands up to 128 sets. Insert the command directly in the bottom colum of Command Edit and name the command on the top colum then click on Save Changes to store the command.
- Page 19 For IR command saving, insert the command on the bottom colum and click on CYP/RAW HEX which indicate the IR command type and click on Save changes to store the command. Under uncertainty of the IR command type click on RAW HEX to ensure a successful command saving.
- Page 20 System Settings Click on 'System Settings' to reset the WebGUI login password and save or download the Macro settings. Reset to Default allows IP and login ID & password to be reset back to factory default. Note: Please ensure that all commands and settings have been saved before performing Reset as this procedure may restore all settings back to factory default.
-
Page 21: Connection Diagram
7. CONNECTION DIAGRAM PC/Laptop Wireless Router (With Internet Security Door Connection) Security Window Power Supply IR OUT GND GND IR IN 3.3V RELAY CONTROL OUT INFRARED OUT IR Blaster 60° 60° 1.5m Powered Projector Screen IR Extender... -
Page 22: Specifications
8. SPECIFICATIONS Input Ports 8 x Trigger in (0~15v) with 4 events triggering 1 x IR (with IR learning supported) 1 x USB (Service only) Output ports 4 x IR 4 x Replay Output Control Interface 1 x COMPORT 1 x CONTROL (With PoE) IR Frequency 30~50kHz Baud Rate... -
Page 23: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM... - Page 24 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CDPSCS6...
