"Canterbury" LightHeaded™ Bed
Assembly Instructions
Part
Blister Pack
EPX
1168356 B
Model #20249Twin size, Chestnut
Model #20277Twin size, Black
Model #20250 Twin size, White
Before you begin:
• Consider enlisting a family member or friend to help; it will make assembly easier,
faster, and more fun.
• Layout all of the parts listed below.
• Save all packing materials until assembly is complete to avoid accidentally
discarding smaller parts or hardware.
• You will need a Phillips head screw driver (not included)
Description
Contains the hardware required to assemble your new Lightheaded Bed
EPJ
Metal washer
EPK
Metal lock washer
EPL
Machine screw
EPM
Wood screw
CWT
Allen wrench
LightHeaded™ headboard—ships with LightHeaded™ lighting component kit
EPN
already installed.
EQB
Caprail assembly
EPO
Right headboard leg
EPP
Left headboard leg
Footboard
EPQ
EPR
Right side rail
EPS
Left side rail
EPT
Roll-out slats (12 pieces of wood connected with nylon straps)
LightHeaded™ TechBox (contains remote control, power cord, instructions for
EPU
use and image changing, and most importantly your coupon code for $20) (see
separate LightHeaded™ Lighting Assembly Instructions)

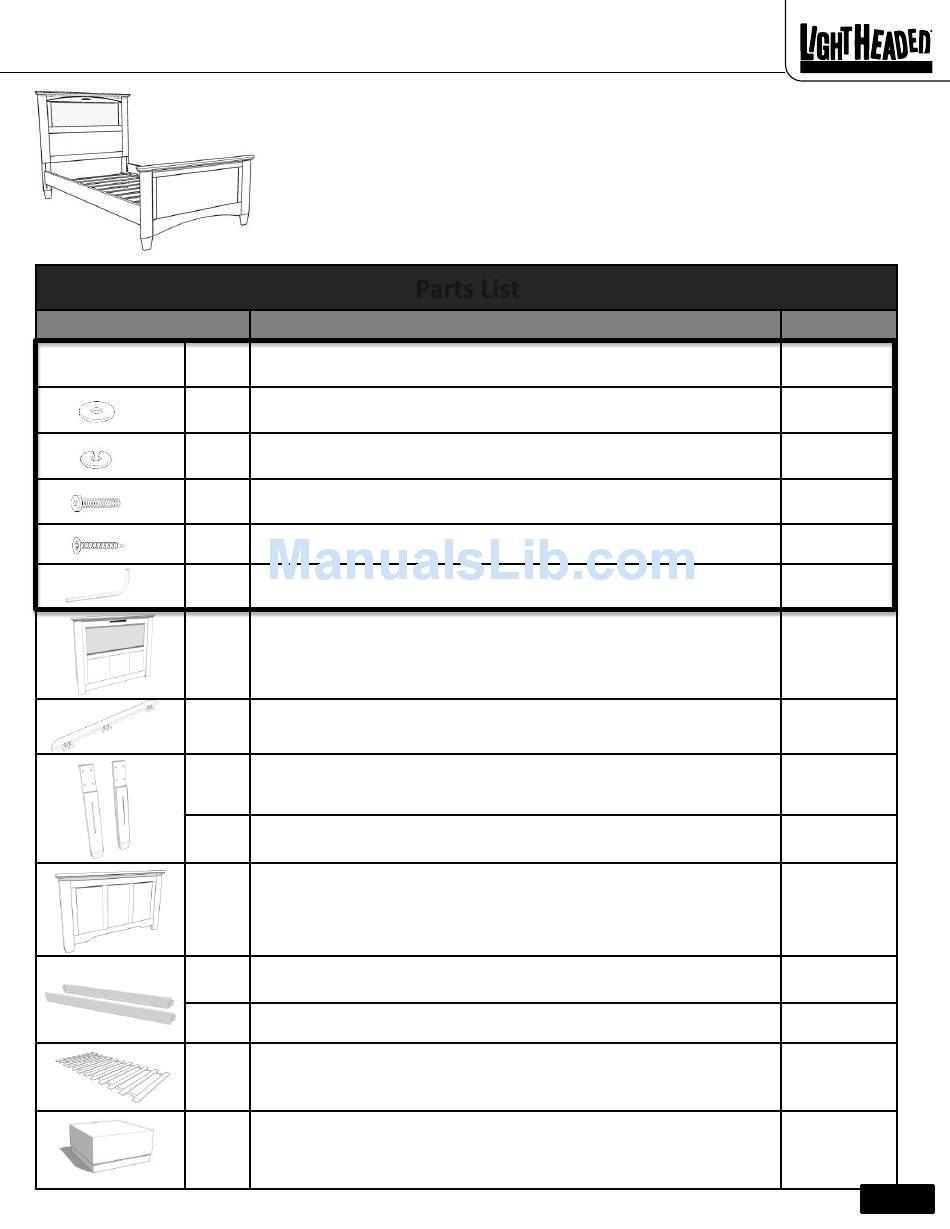

Parts List
www.LightHeadedBeds.com
9/17/2015
Quantity
1
8
8
11
24
1
1
1
1
1
1
1
1
1
1
Page 1
