Chapter 1 Introduction

1.2 QuickPanel+ Hardware User Features

In addition to the primary touch screen interface, the QuickPanel+ supports a variety of

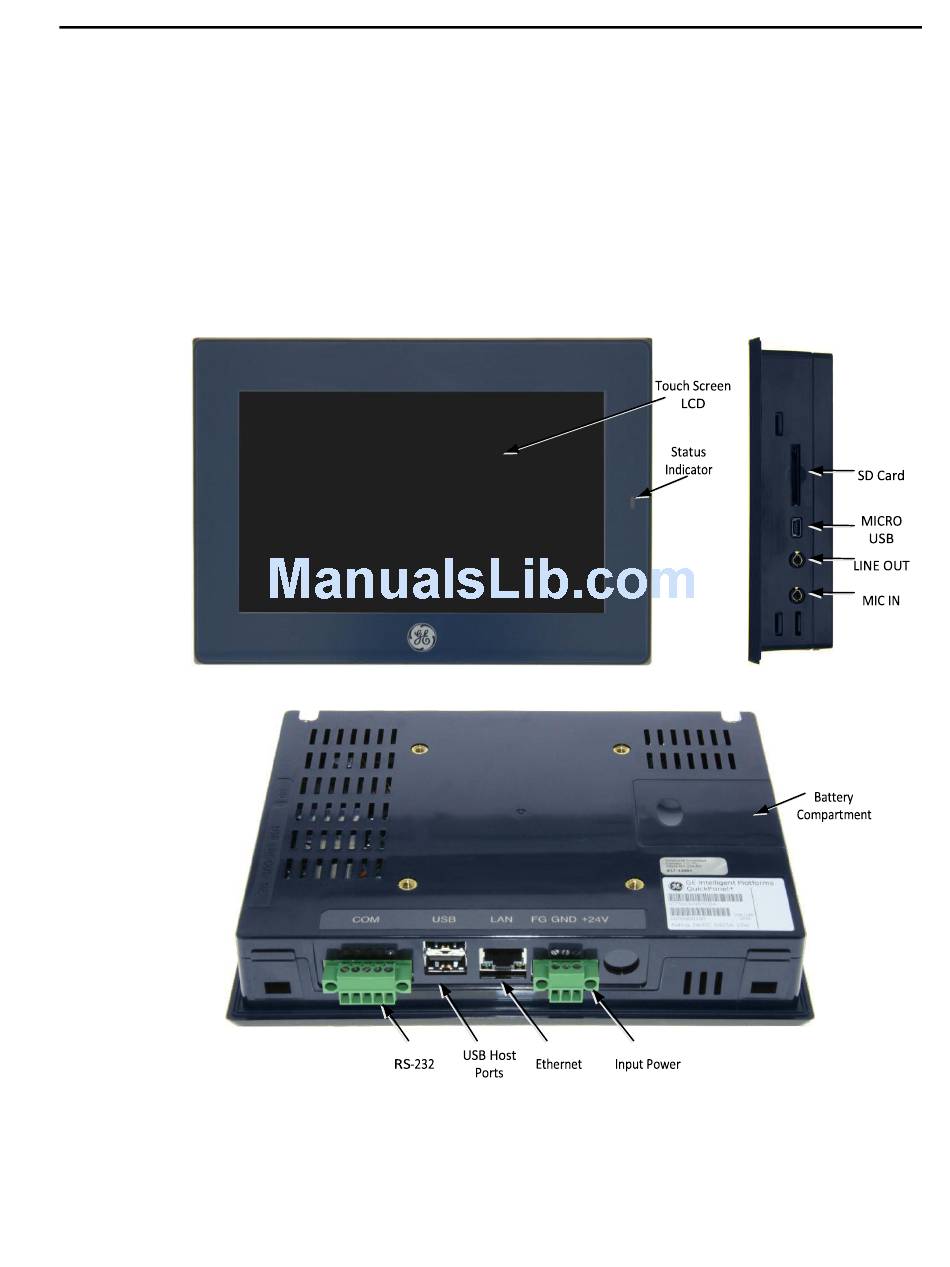

communication ports. The following diagrams show the physical layout of the QuickPanel+ including
locations of status LEDs, communications ports, and connectors.

Overview

1.2.1
Figure 1. QuickPanel+ Hardware Features
QuickPanel+ User's Manual–November 2013
Front
Bottom
Right Side
