DET10A Operating Manual – High Speed GaP Detector
Description:

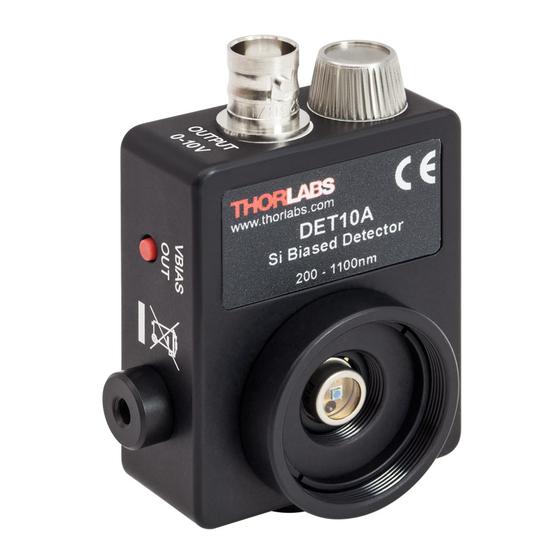

The Thorlabs DET10A is a ready-to-use high-speed photo detector. The unit comes complete with a photodiode and
internal 12V bias battery enclosed in rugged aluminium housing. The DET10A includes a removable 1" optical
coupler (SM1T1), providing easy mounting of ND filters, spectral filters, fiber adapters (SMA, FC and ST style), and
other Thorlabs 1" stackable lens mount accessories.
The DET10A includes two #8-32 tapped mounting holes with a 0.25" mounting depth, while the DET10A/M has two
M4 tapped mounting holes. A 12V A23 battery is included.
Specifications:
Electrical
Detector:
Active Area:
Wavelength Range:
Peak Wavelength:
Peak Response (typ):
Diode Capacitance:
Rise/Fall Time:
Linearity Limit (Current):
(Power):
NEP (750nm):
Bias Voltage:
Dark Current
Output Voltage:
1. All measurements performed with a 50Ω load unless stated otherwise.
2. Measured with specified Bias Voltage.
3. Assumes the battery voltage drops below 9.6V. The reverse protection diode generates a 0.6V drop.
PO Box 366, 435 Route 206N, Newton, NJ 07860
Ph (973) 579-7227, Fax (973) 300-3600, http://www.thorlabs.com
Silicon PIN
2
0.8mm (Ø1.0 mm)
λ
200 to 1100 nm
λ
750 nm (typ)
p
ℜ(λ
) 0.45 A/W (typ)
p
C 6pF
J
t / t 1ns (max.)
r f
1mA
2mW (min @ λ
)
P
-14
1.9x10 W/√Hz (max.)
V 10V (9V min)
BIAS
2
: I 0.3nA (2nA max.)
D
V 0 to 10V
OUT
Figure 1 – DET10A Spectral Responsivity Curve
13052-S01 Rev C 11/8/2011
General
On / Off Switch:
Package Size:
PD Surface Depth:
Storage Temp:
Operating Temp:
Low Battery Voltage
Page 1 of 5
Slide
Output: BNC (DC Coupled)
2.8"x1.9" x 0.83"
70mm x 48mm x 21mm
0.12" (3.1mm)
Weight: 0.2 lbs
Accessories: SM1T1 Coupler
SM1RR Retainer Ring
-25 to 70°C
10 to 50°C
Battery: A23, 12V , 40mAh
DC
3
(See 'Battery Check')
V (Hi-Z): ~9V
OUT
~400mV
V (50Ω):
OUT
