Summary of Contents for Bush Q5S

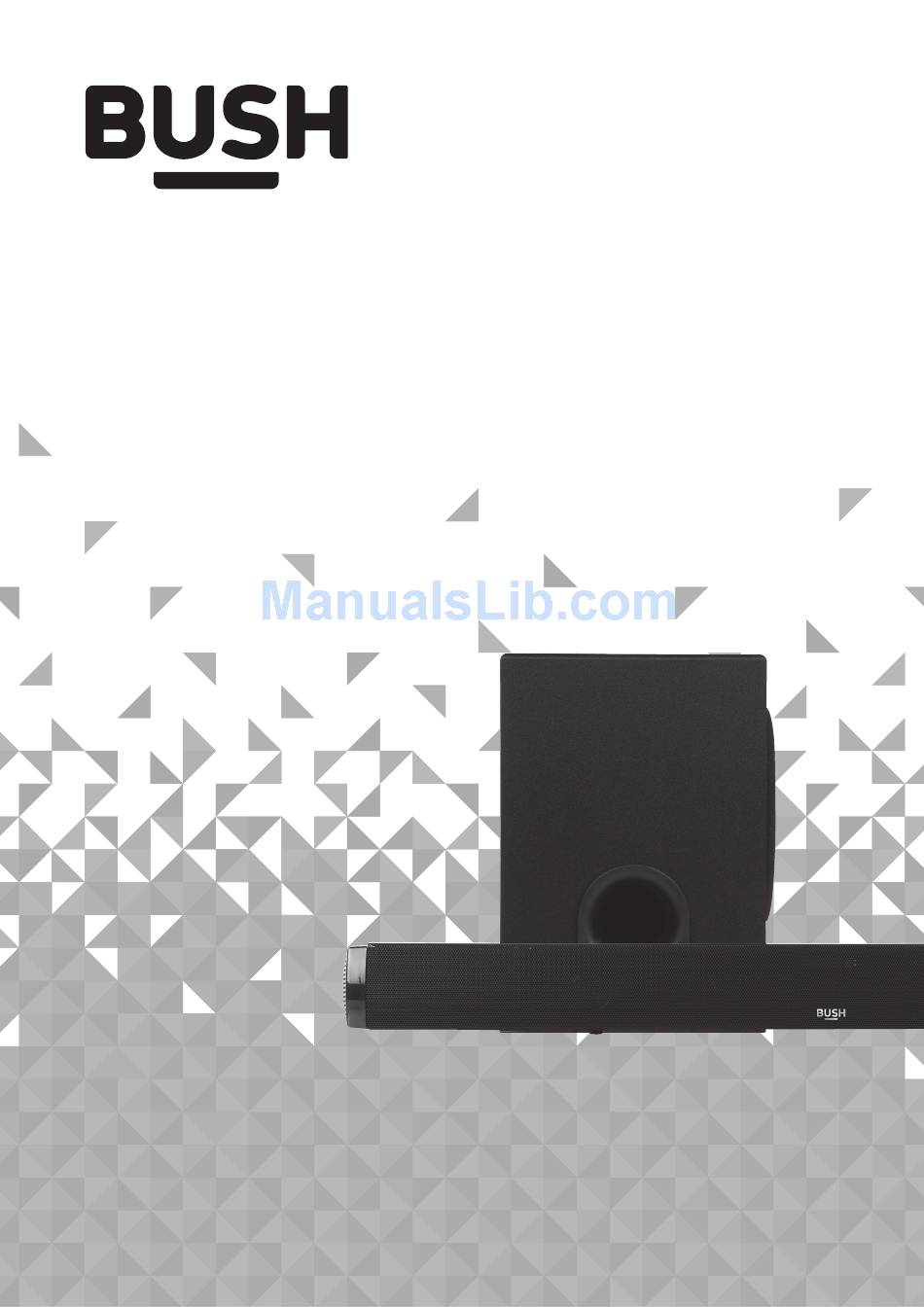

- Page 1 Instruction manual Q5S Soundbar...
- Page 2 You’ll soon be enjoying your new Soundbar. It all begins here, with your instructions. Don’t worry, there’s nothing too technical coming up. Just simple, step-by-step guidance to get you up and running quickly. Sound good? Then let’s get started. Help and Guidance We’re here to help you get the most from your Soundbar.
-
Page 3: Table Of Contents
Contents Safety information Product support Safety information Troubleshooting Help and assistance Getting to know your Soundbar Disposal Guarantee Ready? Let’s begin Accessories Control panel and remote control Making the connections Installing the remote battery Using your Soundbar Standby mode Switching inputs Adjusting the volume LED status table EQ presets... - Page 4 This page is left intentionally blank...
-
Page 5: Safety Information
Safety information... -
Page 6: Safety Information
Safety information Important - Please read these instructions fully before installing or operating Power source Heat build up • This symbol means that this unit is double • During use the unit will heat up, this is not a insulated. An earth connection is not malfunction. -
Page 7: Getting To Know Your Soundbar
Getting to know your Soundbar... -
Page 8: Ready? Let's Begin
If you require any further assistance, our technical experts are happy to help. For full details, refer to the product support section at the end of these instructions. Accessories Q5S Soundbar Sub woofer Remote control CR2032 battery Digital coaxial audio cable Digital optical cable 3.5mm to 3.5mm audio cable... -
Page 9: Control Panel And Remote Control
Getting to know your Soundbar You’ll be up and running in no time DC IN COAXIAL OPTICAL STANDBY button: Switch on the Sound bar or OPTICAL DIGITAL AUDIO INPUT: Connect the switch to STANDBY mode. digital audio output from a TV, DVD/ Blu-ray player or games console. - Page 10 Getting to know your Soundbar You’ll be up and running in no time Power: Standby mode ON/ OFF Mute: Press to mute the sound button output Volume +: Press to increase the : Skip to the next track volume level (Bluetooth) : Skip to the previous track (Bluetooth)
-
Page 11: Making The Connections
Making the connections Follow the below connection guide to connect the Q5S Soundbar to a TV, DVD/Bluray or games console with a digital coaxial OR optical output, a non-digital TV or external audio source such as an MP3 player or smartphone. -
Page 12: Installing The Remote Battery
Getting to know your Soundbar You’ll be up and running in no time Replace the battery compartment cover and turn Installing the remote battery clockwise using the a coin to close. (Fig 3) Turn the battery cover counter clockwise using a coin to open the battery compartment.(Fig 1) Fig 3. -
Page 13: Using Your Soundbar
Using your Soundbar... -
Page 14: Standby Mode
Using your Soundbar Let’s get started Standby mode LED status table The below table explains the LED indications. This unit is designed to enter STANDBY mode automatically after 20 MINUTES (approximately) of Operation Description Action inactivity. Press the STANDBY button to wake the Standby Standby RED (Solid) -
Page 15: Voice Message Feedback
Enable the Bluetooth function on your audio Any further operations must be done from the device and search for a device labelled ‘BUSH Q5S’ audio device. in the available list. Select and enable pairing for the ‘BUSH Q5S’... - Page 16 This page is left intentionally blank...
-
Page 17: Other Information
Other information... -
Page 18: Wall Mounting The Soundbar
Other information Helpful technical information Insert 2 screws (not supplied) into the holes and Wall mounting the soundbar tighten. Take care to leave 5mm between the Align the Soundbar in the chosen location. screw heads and the wall. (Fig 6) Use a pencil to mark the drilling positions 287mm (11.3”) apart. -
Page 19: Technical Specification
Other information Helpful technical information Technical specification Amplifier Power output 100W MAX Frequency response 20Hz - 20KHz ± 3dB Input sensitivity 550 mV Main unit Power supply INPUT: 100-240V ~ 50-60Hz OUTPUT: 24V 1.5A Power consumption Standby power consumption ≤ 0.5W Full range speaker drivers Impedance: 4 Ohm, 52mm (2”) Frequency response: 250Hz ~ 20KHz... - Page 20 This page is left intentionally blank...
-
Page 21: Product Support
Product support... -
Page 22: Troubleshooting
2Ch stereo or PCM downmix. • Bluetooth device not paired. Check ‘Pairing a bluetooth device’ . No response from the Q5S Soundbar. • Unplug the power cable for 1 minute then plug back in again. Remote control does not work. -
Page 23: Help And Assistance
Help is always at hand Help and assistance If you require any technical guidance or find that your Q5S Soundbar is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions or online at www.argos-support.co.uk... -
Page 24: Disposal
Product support Help is always at hand Disposal • Disposal of your old product. Your product is designed and manufactured with high quality materials and components, which can be recycled and reused • When this crossed out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. -
Page 25: Guarantee
Help is always at hand Call us now and activate your 12 month guarantee Thank you for choosing Bush. Your new product is guaranteed against faults and breakdowns for 12 months. Don’t forget to register it with us today so we can provide you with our best possible after-sales service and useful updates. - Page 28 Contact: www.argos-support.co.uk Helpline: 0345 600 3021...
