This operating guide also includes instructions for the following portable PA accessories:
C 7187C: UHF wireless microphone dual receiver
C 7196A: Charging pod
C 7197A: Lapel microphone to suit beltpack transmitter
C 7198A: Headset microphone to suit beltpack transmitter
Manufactured for Altronic Distributors Pty Ltd.

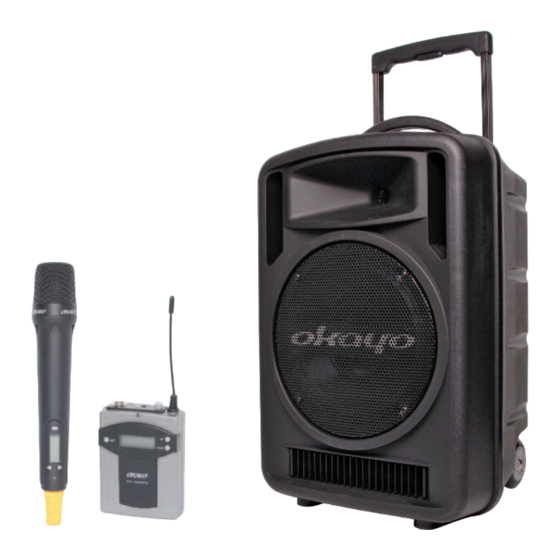

Operating Instructions
C 7217C
PA With UHF Wireless Mic Receiver
with Bluetooth
C 7220C
PA With UHF Wireless Mic Receiver
& CD/MP3/USB Player with Bluetooth
C 7192C
Wireless Handheld Mic
C 7193C
Wireless Handheld Condenser Mic
C 7195C
Beltpack Transmitter
Okayo Portable PA System
Advertisement
Related Manuals for Okayo C 7217C
Summary of Contents for Okayo C 7217C
-

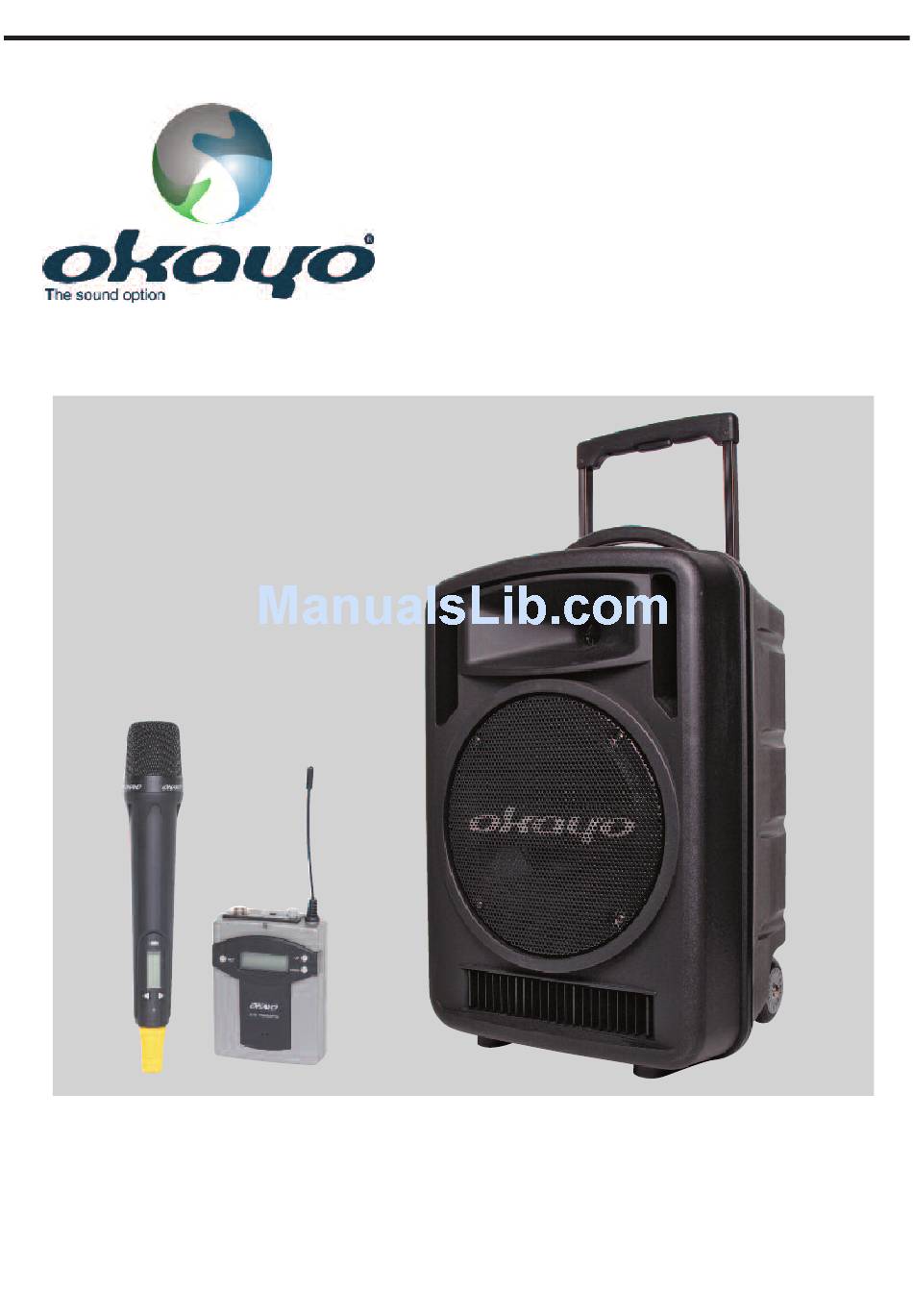

Page 1: Operating Instructions
Okayo Portable PA System Operating Instructions C 7217C PA With UHF Wireless Mic Receiver with Bluetooth C 7220C PA With UHF Wireless Mic Receiver & CD/MP3/USB Player with Bluetooth C 7192C Wireless Handheld Mic C 7193C Wireless Handheld Condenser Mic... - Page 2 Okayo Portable PA System With an output of 120W RMS, this Okayo® PA is an excellent choice for addressing large crowds up to 500 or more. The cabinet is moulded from industrial grade ABS plastic ensuring long life and the ability to absorb day-to-day wear and tear.
- Page 3 Okayo Portable PA System Figure 1: Front Figure 2: Rear 1. Handle 4. Woofer 1. UHF receiver module Dual channel A & B 2. Horn Tweeter 5. Speaker Grill 2. CD/MP3/USB player 3. Port 6. Heatsink 3. Power switch & charge indicator (this panel is replaced when adding a C 7189C wireless link).
-
Page 4: Operation
Okayo Portable PA System Operation Power & Charging Functions The portable PA system is powered by 240V AC mains via IEC socket (see figure 2 for location) or via the internal bat- teries. When operating for the first time the internal batteries will require charging for up to 8 hours. Charging will occur whenever the unit is plugged into the 240VAC mains supply. - Page 5 Okayo Portable PA System 10. 11. 12. 13. 14. Figure 4: CD/MP3 Player Module 1. USB port 6. Power switch 11. Track skip reverse 2. CD slot 7. SD/USB source selection 12. Track skip forward 3. LCD screen 8. Folder selection 13.
- Page 6 Okayo Portable PA System SD/MMC Card: • Insert SD Card or MMC Card into the SD/MMC CARD slot on the front panel. Push the card into the slot until it clicks into the slot. • When taking the card out, ensure that you hear it click that releases the card and then remove.
- Page 7 Okayo Portable PA System PREVIOUS TRACK: Press 9 to select previous track. NEXT TRACK: Press : To select next track. TRACK SEARCH: Press 78 to search through individual tracks. Press once to activate. Press again to cancel. Press4 ; to return to normal playback.
- Page 8 Okayo Portable PA System Figure 6: UHF Wireless Mic Module 1. LCD screen 2. Channel A power switch and volume control 3. Up/Down frequency selector 4. Frequency SET button 5. Channel B power switch and volume control UHF Mic Receiver Operation - Figure 6.
- Page 9 Okayo Portable PA System 1. 2. Figure 7: Audio Link Transmitter (C 7189C) 1. LCD screen 5. Up/down frequency adjustment buttons 2. TX audio indicator 6. Power switch & mic level control 3. AF audio level indicator 7. Battery charging indicator 4.
-
Page 10: Transmitter Operation
Okayo Portable PA System Fitting Additional Modules Fitting C 7187C UHF Wireless Microphone Receiver Module 1. Ensure portable PA is NOT connected to mains power. Disconnect all input cables. 2. Unscrew the ‘half width’ blanking panel at the top of the rear panel (see figure 2). - Page 11 Okayo Portable PA System Figure 8: Beltpack UHF Wireless Transmitter (C 7195C) 1. Aerial 2. Mute button (top) 3. On/off switch (top) 4. 3.5mm mic input socket (top) 5. LED power indicator 6. Sensitivity selection switch (side) 7. 3.5mm aux input socket (side) 8.
-
Page 12: Transmitter Troubleshooting
Okayo Portable PA System Transmitter Troubleshooting • Power LED does not illuminate after pressing power switch Check batteries are charged and inserted correctly. For handheld microphone, when pressing power switch, ensure you hold it down for three seconds • LCD shows “Err” when switching off Contact your place of purchase for information on resetting your transmitter. - Page 13 Okayo Portable PA System Important Maintenance / Operation Guidelines Avoid excessive heat: Do not leave transmitters or portable PA receiver in direct sun for extended periods, in front of heaters or any source of high temperature Avoid rough handling: Transmitter or portable PA receiver may be damaged if dropped Fully charge portable PA battery: Ensure battery is fully charged before placing into storage for long periods.
- Page 14 Okayo Portable PA System Table 1: UHF Wireless Channel Guide 520-544MHz Frequency 520.1 542.4 538.3 526.7 524.8 522.4 543.9 523.9 536.2 534.3 536.5 542.6 532.1 537.6 543.7 540.8 523.2 526.9 525.1 530.6 529.9 520.5 534.9 535.6 537.9 542.1 524.4 535.3 527.3...
- Page 15 Okayo Portable PA System Specfications Portable PA Amplifier Frequency Response ................................20Hz to 20kHz Output Power ..............................120W RMS, 160W Max. Total Harmonic Distortion ................................< 1% Speakers:................................10” woofer, 1” tweeter Inputs........................XLR 3 pin, 6.35mm TRS, stereo RCA, 3.5mm stereo aux Outputs ............................Stereo RCA line out, 3.5mm stereo aux Controls ..........Master volume, bass, treble, line volume, aux volume, wired mic volume, wireless mic volume...
- Page 16 Okayo Portable PA System Accessories C 7196A C 7197A C 7198A Beltpack Lapel Headset charging microphone microphone dock to suit to suit beltpack beltpack transmitter transmitter Altronic Distributors warrants this product for one year from date of purchase from Altronics or its resellers to the consumer.
