Compressor sound blanket accessory

Advertisement

48/50A2,A3,A4,A5
020-060
48/50P2,P3,P4,P5
030-100
Compressor
Sound Blanket Accessory

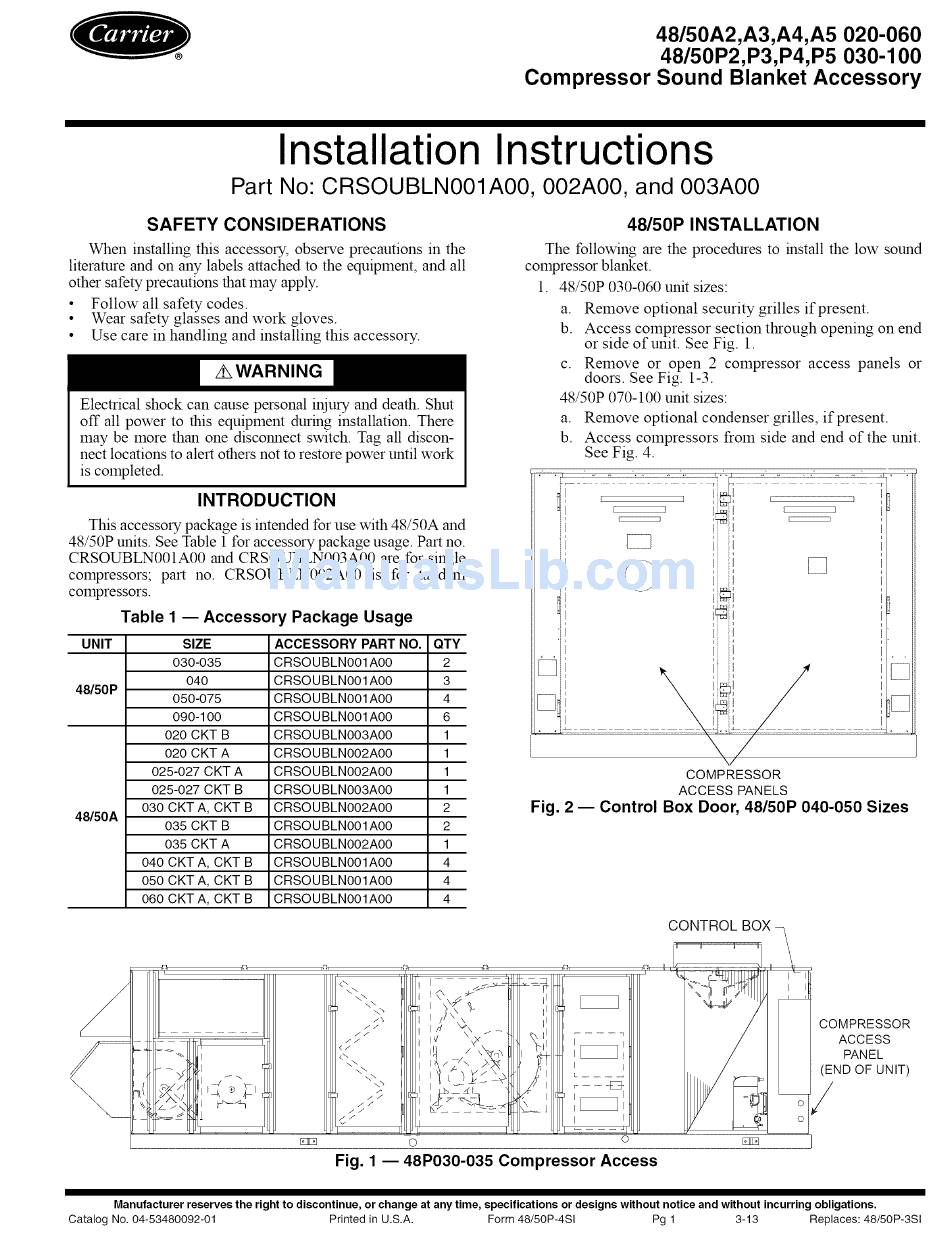

Installation Instructions
Part No: CRSOUBLN001A00,
002A00, and 003A00
SAFETY
CONSIDERATIONS
When installing this accessory, observe precautions in the
literature and on any labels attached to the equipment, and all
other safety precautions that may apply.
Follow all safety codes.
Wear safety glasses and work gloves.
Use care in handling and installing this accessory.
Electrical shock can cause personal injury and death. Shut
off all power to this equipment
during installation.
There
may be more than one disconnect
switch. Tag all discon-
nect locations to alert others not to restore power until work
is completed.
INTRODUCTION
This accessory package is intended
for use with 48/50A and
48/50P units. See Table 1 for accessory package usage. Part no.
CRSOUBLN001A00
and CRSOUBLN003A00
are for single
compressors;
part
no. CRSOUBLN002A00
is for tandem
compressors.
Table I -- Accessory Package Usage
UNIT
SIZE
ACCESSORY
PART NO.
QTY
030-035
CRSOUBLN001
A00
2
040
CRSOUBLN001
A00
3
48/50P
050-075
CRSOUBLN001A00
4
090-100
CRSOUBLN001
A00
6
020 CKT B
CRSOUBLN003A00
1
020 CKT A
CRSOUBLN002A00
1
025-027 CKT A
CRSOUBLN002A00
1
025-027 CKT B
CRSOUBLN003A00
1
030 CKT AI CKT B
CRSOUBLN002A00
2
48/50A
035 CKT B
CRSOUBLN001A00
2
035 CKT A
CRSOUBLN002A00
1
040 CKT AI CKT B
CRSOUBLN001A00
4
050 CKT AI CKT B
CRSOUBLN001A00
4
060 CKT AI CKT B
CRSOUBLN001A00
4
48/50P
INSTALLATION
The following
are the procedures
to install the low sound
compressor
blanket.
1. 48/50P 030-060 unit sizes:
a.
Remove
optional
security
grilles if present.
b. Access compressor
section through
opening on end
or side of unit. See Fig. 1.
c.
Remove
or open
2 compressor
access
panels
or
doors. See Fig. 1-3.
48/5@ 070-100 unit sizes:
a.
Remove
optional
condenser
grilles, if present.
b. Access compressors
from side and end of the unit.
See Fig. 4.
i
[
il
q l
il
D
COMPRESSOR
ACCESS PANELS
Fig. 2 -- Control
Box Door, 48/50P
040-050
Sizes
CONTROL
<_'_
Ii I '1
_" _';#_
...........................
_f<_
_
II
_
_ [
....................................................................
_
_\
_ __
_ ....
COMPRESSOR
-
_
zS/
_
,Z
ACCESS
<_
_
/ \N_%_
_
PANEL
i
-.
"\'-
_-
(END OF UNIT)
_l
_
o
EI_
O
O
EI_
Fig. 1 -- 48P030-035 Compressor Access
Manufacturer
reserves the right to discontinue, or change at any time, specifications
or designs without notice and without incurring obligations.
Catalog No. 04-53480092-01
Printed in U.S.A.
Form 48/50P-4SI
Pg 1
3-13
Replaces:
48/50P-3SI
