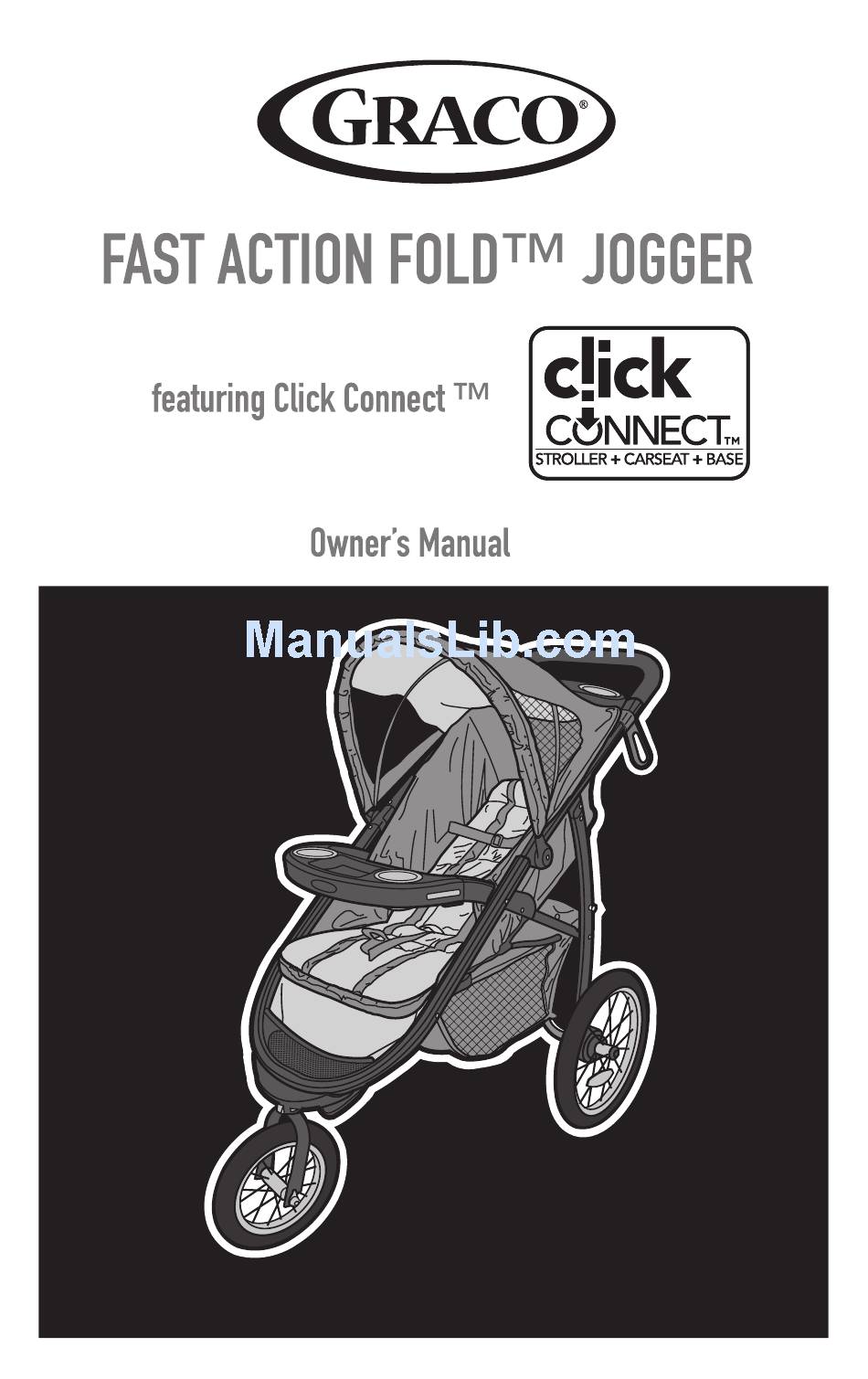

  • Page 1 FAST ACTION FOLD™ JOGGER PD346910A 8/15...
  • Page 2 4-A To Secure Child 4-B To Recline Seat 4-C Brakes 4-D Swivel Wheel 4-E Parent’s Tray with Smart Device Holder 4-F Removing Wheels 4-G To Use Tether 4-H To Attach Graco® Infant Car Seat To Fold Stroller 5 Care 5-A Care & Maintenance...
  • Page 3 Always use parcels or accessory items (other seat belt. After fastening buckles, adjust belts to get a snug fit than approved Graco stroller around your child. bags) on the handle. Never place anything on the canopy.
  • Page 4 SNUGRIDE® INFANT CAR DO NOT use stroller for jogging SEATS WITH CLICK CONNECT™. while carrier is in stroller. Only use with Graco® infant car BE AWARE of the increased speed seats that have the Click and greater possibility of losing Connect™...
  • Page 5 2-A Parts List Check that you have all the parts for this model BEFORE assembling your product. If any parts are missing, call Customer Service. NO TOOLS REQUIRED. All models...
  • Page 6 3-A To Open Stroller Before assembly, be sure to place stroller on top of a piece of cardboard or other protective cover to prevent damage to floor surface. 1. Open storage latch. 2. Lift handle of stroller up.
  • Page 7 3. CHECK that the stroller is completely latched open every time you open the stroller and SNAP! before continuing with the rest of the assembly steps.
  • Page 8 3-B Canopy WARNING 1. Choking Hazard: Remove and immediately discard foam on the canopy wire. 2. Insert canopy wire into the canopy mounts on each side of the stroller as shown. SNAP! 3. Push backwards to close canopy. Pull forward to open canopy.
  • Page 9 Front Wheel CHECK the tire pressure before using the stroller. DO NOT INFLATE above the maximum recommended inflation pressure that is written on the side of the tire. Over-inflation may cause wheel and/or tire to blowout and could result in serious injury. DO NOT use air compressor to inflate tire.
  • Page 10 Attach front wheel to stroller as shown. SNAP! CHECK that wheel is securely attached by pulling on wheel assembly.
  • Page 11 3-D Rear Wheels WARNING Choking Hazard: Remove and immediately discard protective end cap from each wheel. DO NOT remove rear wheels unless replacing them. Child could fall on exposed rear axle and be injured. 1. Remove and immediately discard protective end cap from each wheel.
  • Page 12 CHECK that wheels are securely attached by pulling on wheel assemblies. 3-E Kickstand Snap kickstand onto basket as shown. SNAP!
  • Page 13 3-F Basket Assembly Fasten basket to tube with snaps as shown. SNAP!
  • Page 14 3-G Parent’s Tray 1. CHECK that canopy wire is attached. 2. Parent tray needs to snap over the top of the canopy wire. SNAP!
  • Page 15 3-H Child’s Tray WARNING Always secure your child with the seat belt. The tray is not a restraint device. DO NOT lift the stroller by the child’s tray. Use care when snapping the tray on the stroller with a child in the stroller. 1.
  • Page 16 2. Attach child tray to armrests. SNAP! 3. To open the tray.
  • Page 17 4. To remove child’s tray, press buttons on bottom of tray. 5. To remove armrest, push button as shown and remove.
  • Page 18 To Secure Child WARNING Falling Hazard: Always use the seat belt. 5 Point Harness 1. To open, press button on buckle to release the waist straps. 2. To close, slide shoulder strap connectors onto waist straps and insert into buckle.
  • Page 19 3. Use slide adjuster at shoulder and waist for tighter Use slide adjuster at shoulder and adjustment. To change waist for further adjustment. shoulder harness slots. Repeat on other side. Utilisez le régulateur coulissant à l'épaule et à la taille pour un ajustement plus précis.
  • Page 20 3 Point Buckle 1. To open, press button on buckle to release the waist straps. 2. Slide shoulder strap connectors off of waist straps. 3. Remove shoulder straps from stroller.
  • Page 21 4. Attach waist straps to harness buckle as shown. 5. Use slide adjuster at waist for tighter adjustment. 6. To open, press button on buckle to release the waist straps.
  • Page 22 Adjusting Shoulder Harness position Shoulder harness anchor—larger child Shoulder harness anchor—smaller child Slide adjuster Use the shoulder harness anchors in the slots that are closest to child’s shoulder height. Use slide adjuster for further adjustment.
  • Page 23 4-B To Recline Seat WARNING When making adjustments to the stroller seat, make sure child’s head, arms, and legs are clear of moving seat parts and stroller frame. Fabric caught in the latches may prevent them from locking. When returning seat to upright position, do not allow fabric to be pinched in the latch.
  • Page 24 4-C Brakes WARNING CHECK that brakes are on by trying to push stroller. 1. Push down on brake to lock brakes. 2. Push up on brake to unlock brakes.
  • Page 25 Swivel Wheel WARNING FALL HAZARD from tip over. Before running, jogging or walking fast, LOCK the front wheel from swiveling. 1. Front swivel wheel locks for use on uneven surfaces such as grass, stones or gravel. SNAP!
  • Page 26 Parent’s Tray with Smart Device Holder 1. To attach your smart device (not Hook included), slide the hook on the tray and insert your smart device in either direction as shown.
  • Page 27 Removing Wheels Front Wheel 1. For easy transport or storage, remove front wheel by pushing button as shown.
  • Page 28 Rear Wheels WARNING DO NOT remove rear wheels unless replacing them. Child could fall on exposed rear axle and be injured. 1. To remove wheel, push button and pull wheel off. Repeat with the other wheel.
  • Page 29 4-G To Use Tether The tether strap is intended to maintain control of the stroller in the case of a fall while running. DO NOT allow tether strap to lie over top of the handle. DO NOT hang items on the tether strap.
  • Page 30 Read the manual provided with your Graco car seat before using it with your stroller. • Always secure your child with the car seat harness when using the car seat in the stroller.
  • Page 31 1. Recline the stroller seat back to Mounts its lowest position. 2. Insert car seat into stroller and push down on car seat until the latches snap into the Click Connect™ mounts. SNAP! SNAP! 3. CHECK that infant car seat is securely attached by pulling up on it.
  • Page 32 4. To remove car seat, squeeze release handle at back of car seat, and lift car seat out of the stroller.
  • Page 33 4-I To Fold Stroller WARNING DO NOT allow child to play with the fold handle. 1. FOLD strap is located under this pocket. 2. Pull strap up. 3. Storage latch will engage and stroller will rest on the parking stand.
  • Page 34 FROM TIME TO TIME CHECK YOUR STROLLER for loose screws, worn parts, torn material or stitching. Replace or repair the parts as needed. Use only Graco replacement parts. EXCESSIVE EXPOSURE TO SUN OR HEAT could cause fading or warping of parts.
