Figure 3-4. Ljlogger Configuration - LabJack U12 User Manual

which display various information about the LabJack. Clicking the button labeled "Save Panel
Settings" will save the current values of the controls as the default values.
If SDX is activated for a given analog input, the corresponding SDX DLL will be used to
determine the scaled data. Users can make their own SDX DLLs (see the source code for more
information), to provide more complex scaling or scaling that depends on other analog inputs.
Clicking the "Configure" button shown in Figure 3-3 brings up the window shown in Figure 3-4:
•
Working Directory: This is the directory where data and configuration files will be
written.
•
Data File Name: Determines the name of the data file to which data will be written.
New data is appended to the end of this file.
•
Data File Write Interval: Determines the interval at which a new row of data will be
written to the data file. Minimum of 0.1 seconds.
•
HTML Write Interval: Determines the interval at which the HTML file is rewritten.

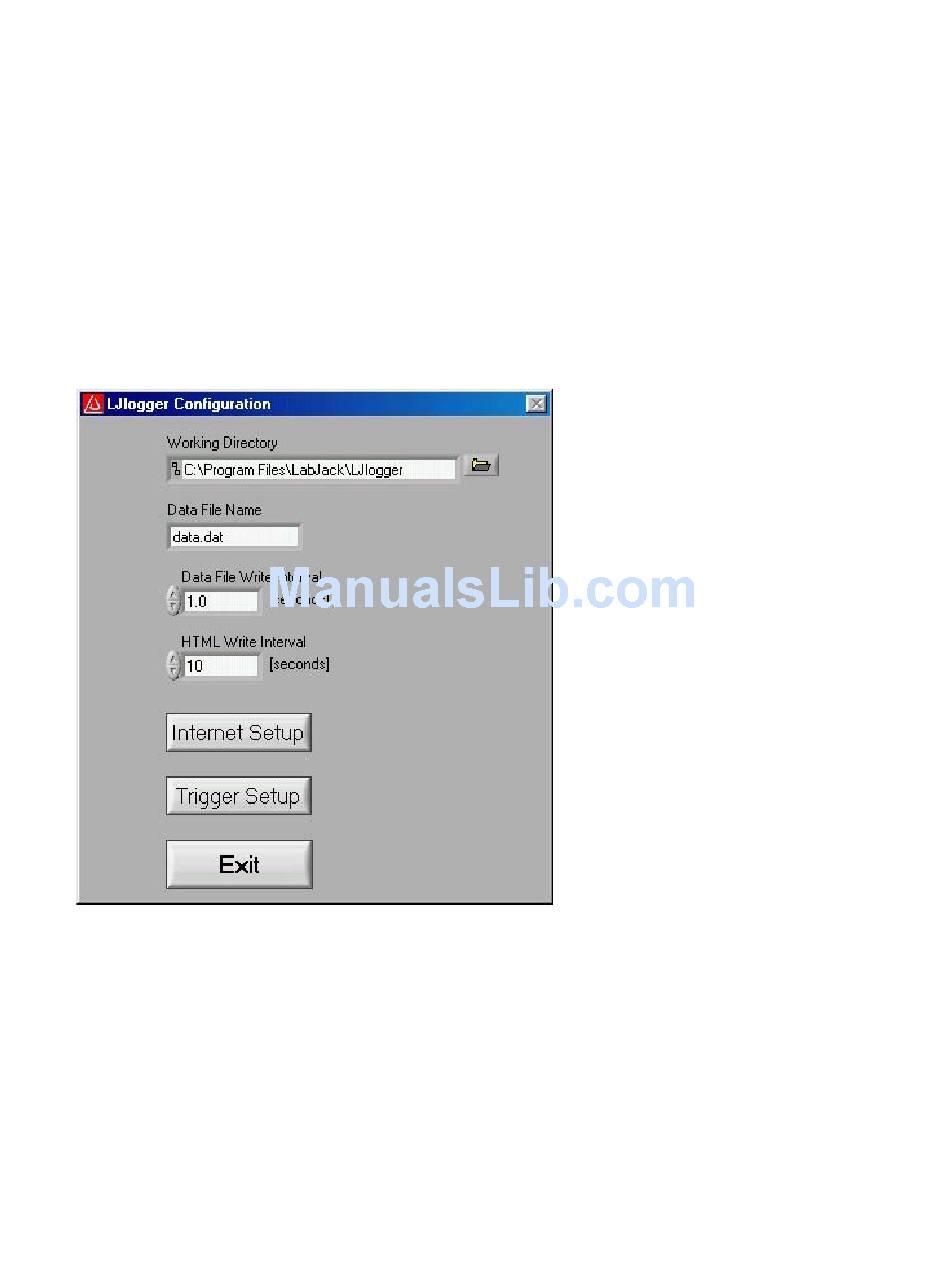

Figure 3-4. LJlogger Configuration

Clicking on the "Internet Setup" button in Figure 3-4 brings up the Internet configuration window
shown in Figure 3-5. Basic customization of the HTML file can be done by clicking on
"Advanced HTML Configuration" which brings up Figure 3-6.
Clicking on the "Trigger Setup" button in Figure 3-4 brings up the window shown in Figure 3-7.
