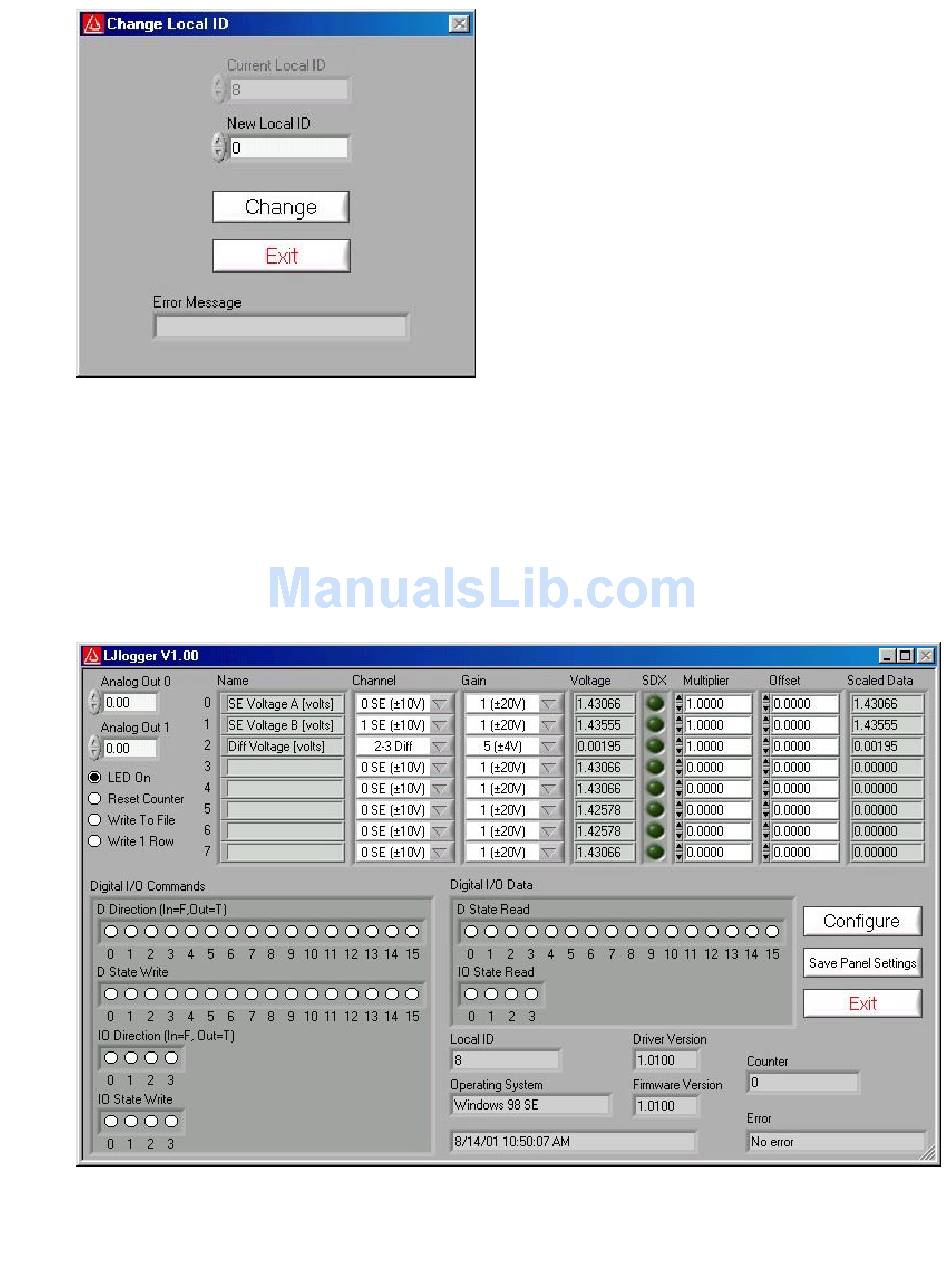

Figure 3-2. LJconfig Change Local ID

Enter a new local ID between 0 and 255 and push the "Change" button. The new local ID will
be written and the LabJack will be forced to re-enumerate.

3.2 LJlogger

LJlogger sends and receives data in command/response mode. It is capable of saving data to
disk, writing data to an HTML page on the Internet, and performing various actions (including
email) on trigger events.

Figure 3-3. LJlogger

The main window for LJlogger is shown in Figure 3-3. The white colored items and the "SDX"
buttons are controls to be edited/selected by the user. The grey colored items are indicators
