Remove And Replace Oven Door(S) - Samsung NV51K6650 SERIES Installation Manual

Installation instructions

Remove and replace oven door(s)

IMPORTANT: Use two hands to remove oven door. For double ovens, repeat the
process for each door.
Prior to removing the oven door, prepare a surface where you will place it. This
surface should be flat and covered with a soft blanket, or use the corner posts
from your packaging material.

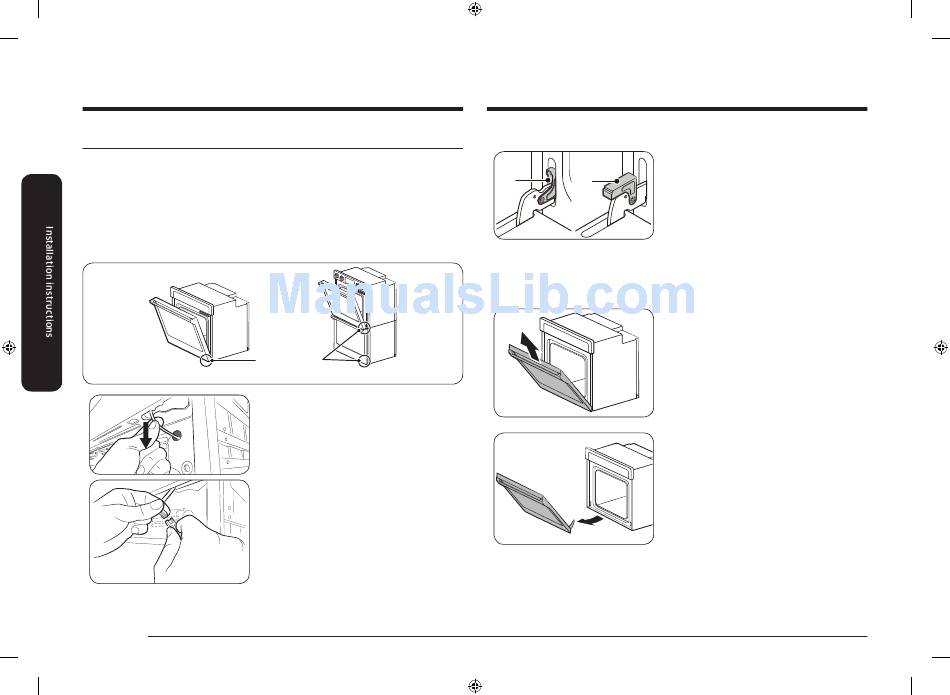

Disconnect LED light wire harness
Locate the LED light wire harness and disconnect it before removing the door.
Single Oven
10 English
Install_NW9000K-DG68-00862A-03_EN+MES+CFR.indb 10
Wire Harness
Double Oven
Carefully pull the wire to reveal the
1.
connector.
Disconnect the connector.
2.
Remove oven door(s)
1.
2.
A B
A. Oven door hinge lock in
locked position
B. Oven door hinge lock in
unlocked position
3.
4.
5.
6.
Open the oven door.
Locate the oven door hinge locks in
both corners of the oven door, and
then rotate the hinge locks toward the
oven door to the unlocked position (see
illustration B). If the door hinge lock
is not rotated fully, the door will not
remove properly.
Partially close the door to engage the
door latch locks.
The door will stop at this point.
Using two hands, grasp the edges of
the oven door. Lift and pull the oven
door toward you and remove. You may
need to gently shift door from side to
side as you pull.
Set the oven door(s) aside on the
prepared covered work surface with the
oven door resting on its handle.
To continue with the oven installation,
go to the "Positioning Oven Feet
for Multiple Cabinet Cutout Heights"
section.
