Summary of Contents for BEOVISION beovision 11-40

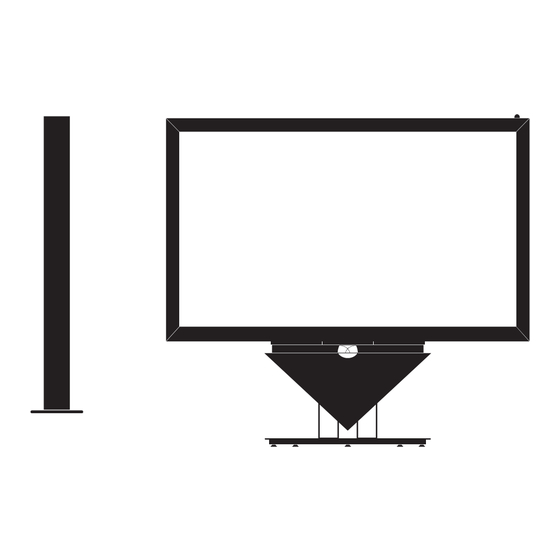

- Page 1 BeoVision 11 BeoVision 11–40 BeoVision 11–46 BeoVision 11–55...
- Page 3 Dear Customer This Getting Started contains information about the daily use of your Bang & Olufsen product and connected equipment. We expect your retailer to deliver, install and set up your product. Your television offers more features and functions than described in this Getting Started.
- Page 4 Cautions WARNING: To reduce the risk of fire or – Ensure that the television is positioned, set up electric shock, do not expose this and connected in accordance with the instructions in this Getting Started. To prevent appliance to rain or moisture. injury, use Bang &...
-
Page 5: Table Of Contents
Contents Daily use How to use your remote control How to navigate in menus Watch television Pause and play back a programme Play a recording Watch 3D television HomeMedia Change picture and sound settings Installation and setting up Set up your television Cleaning Connection panels... -
Page 6: How To Use Your Remote Control
How to use your remote control Beo4 operation Your television can be operated with the Beo4 with navigation button as described in this Getting Started and the online guide, available on www. bang-olufsen.com/guides. The Beo4 display shows you the activated source or function Switch on the TV* Switch on WebMedia (requires Internet connection). - Page 7 Beo6 operation You can also operate your television with a Beo6 remote control. When Beo6 operation is different from Beo4 operation, it is described separately. Soft button, touch screen to select* Switch on a source or select a function Back up through Beo6 displays Bring up SCENE buttons, such as Zones or Speaker Press again to return Living Room...
-
Page 8: How To Navigate In Menus
How to navigate in menus Navigate in menus and select settings using your remote control. Pressing MENU brings up the menu for the selected source. Display and menus MENU Switch on TV Show menu Select source and select settings. Navigate in menus 0–9 BACK BACK... - Page 9 Select source MENU Bring up main menu Select SOURCE LIST Select source You can select a source just by pressing the dedicated button on the remote control, or you can select a source via the menu. Bring up help texts MENU Bring up main menu Bring up the SETUP...
-
Page 10: Watch Television
Watch television Operation Watch analogue and digital terrestrial, cable and satellite channels depending on your tuner options. Make channel groups, and turn the TV. Make a recording on the optional hard disk recorder. Switch on the TV Select a channel TV function Beo4/Beo6 button SOURCE LIST... - Page 11 MENU Press Press Select SOURCE LIST Select TV 0–9 Select Activate numbers and select channel Select previous channel (Beo6: Press Previous) MENU 1–9 Activate the desired function* Press LIST MENU STOP Press to bring up Press twice Press to start a recording Stop recording* RECORD …...
-
Page 12: Pause And Play Back A Programme
Pause and play back a programme Operation With the optional hard disk recorder you can pause, repeat and resume a digital programme in progress. The television continues saving during timeshift, so you are sure to see the entire programme. Pause a programme Pause the programme on the current channel. - Page 13 STOP Press To return to live signal, select source again, such as TV PLAY Play back 0 – 9 Select point in time Step backwards or forwards Long press to cue backwards or forwards Press and hold to go to previous or next programme STOP Press Slow playback, press again to change speed...
-
Page 14: Play A Recording
Play a recording Operation With the optional hard disk recorder you can play and browse through recordings of digital programmes. Switch on the hard disk recorder It takes some time to start up the hard disk recorder. Recording Current category number and total or view Select and play a recording... - Page 15 V.MEM Select source of recorder. Playback begins automatically of the last viewed recording, the newest recording or a recording in progress MENU Select RECORDINGS and open HARD DISK Select category or view Select recording Play recording CONTENT menu STOP STOP Pause Slow playback, press again to change speed Stop...
-
Page 16: Watch 3D Television
Watch 3D television You can enhance the experience of watching television with 3D technology, for example, when you want to watch movies, sports or nature films. Viewing conditions Place yourself in front of the screen, a little closer You will get the best 3D than when you normally watch 2D TV, and use experience if you darken the 3D glasses. - Page 17 3D modes Select the 3D mode that matches the signal sent SIDE BY SIDE 3D TOP/BOTTOM 3D out by the programme provider. Converts side-by-side 3D Converts top/bottom 3D signal into full screen 3D signal into full screen 3D representation by scaling representation by scaling two pictures horizontally two pictures vertically...
-
Page 18: Homemedia
HomeMedia You can play music and video files and browse photos stored either on a storage device or product connected via a DLNA/UPnP enabled media server. For more information about connections and functions, see the online guide available on www.bang-olufsen.com/guides. Use HomeMedia H.MEDIA Bring up H.MEDIA in your Beo4 display*... -
Page 19: Change Picture And Sound Settings
Change picture and sound settings While you watch television, you can adjust the sound and picture settings. See the online guide on www.bang-olufsen.com/guides for more information about these settings. Select sound modes LIST SOUND 1–9 Sound … Speech Bring up sound modes on the Step between modes On Beo6, select between available The television has several sound modes optimised... -
Page 21: Installation And Setting Up
Contents – Installation and setting up Set up your television Cleaning Connection panels... -
Page 22: Set Up Your Television
Set up your television The television has several placement options. Follow the guidelines for placement and connection. Placement options The TV has several placement options. Refer to Due to the weight of the TV, any moving or lifting www.bang-olufsen.com for available stands and of the TV should be performed by qualified wall brackets or contact your Bang &... -
Page 23: Cleaning
Overview Locate the connection panel and other important 1 Mounting bracket for wall bracket. items: 2 Mounting bracket for stand. 3 Covers for the main connection panel. Pull out at the bottom to remove the cover parts. 4 Socket for temporary connections. Press in the middle to open. -
Page 24: Connection Panels
Connection panels Any equipment you connect to the main connection panel must be registered in the SOURCE LIST SETUP menu. Equipment connected to the top connection panel can be registered in the SOURCE LIST SETUP menu. MONITOR PUC 2 PUC 1 PL 5 PL 4 CONTROL... -
Page 25: Sockets For Temporary Connections
We recommend that you connect the television to the Internet to be able to receive software updates and to download Peripheral Unit Controller (PUC) tables. PUC tables enable you to operate connected non-Bang & Olufsen products with your Bang & Olufsen remote control. Sockets for temporary connections STAND For connection of a motorised stand or wall... - Page 26 Waste Electrical and Electronic Equipment Electrical and electronic equipment, parts and Collecting electrical and electronic equipment, (WEEE) – Environmental protection batteries marked with this symbol must not be batteries and waste prevents the potential disposed of with normal household wastage; all contamination of nature with the hazardous electrical and electronic equipment, parts and substances which may be present in electrical and...
