Summary of Contents for National Flooring Equipment 14420

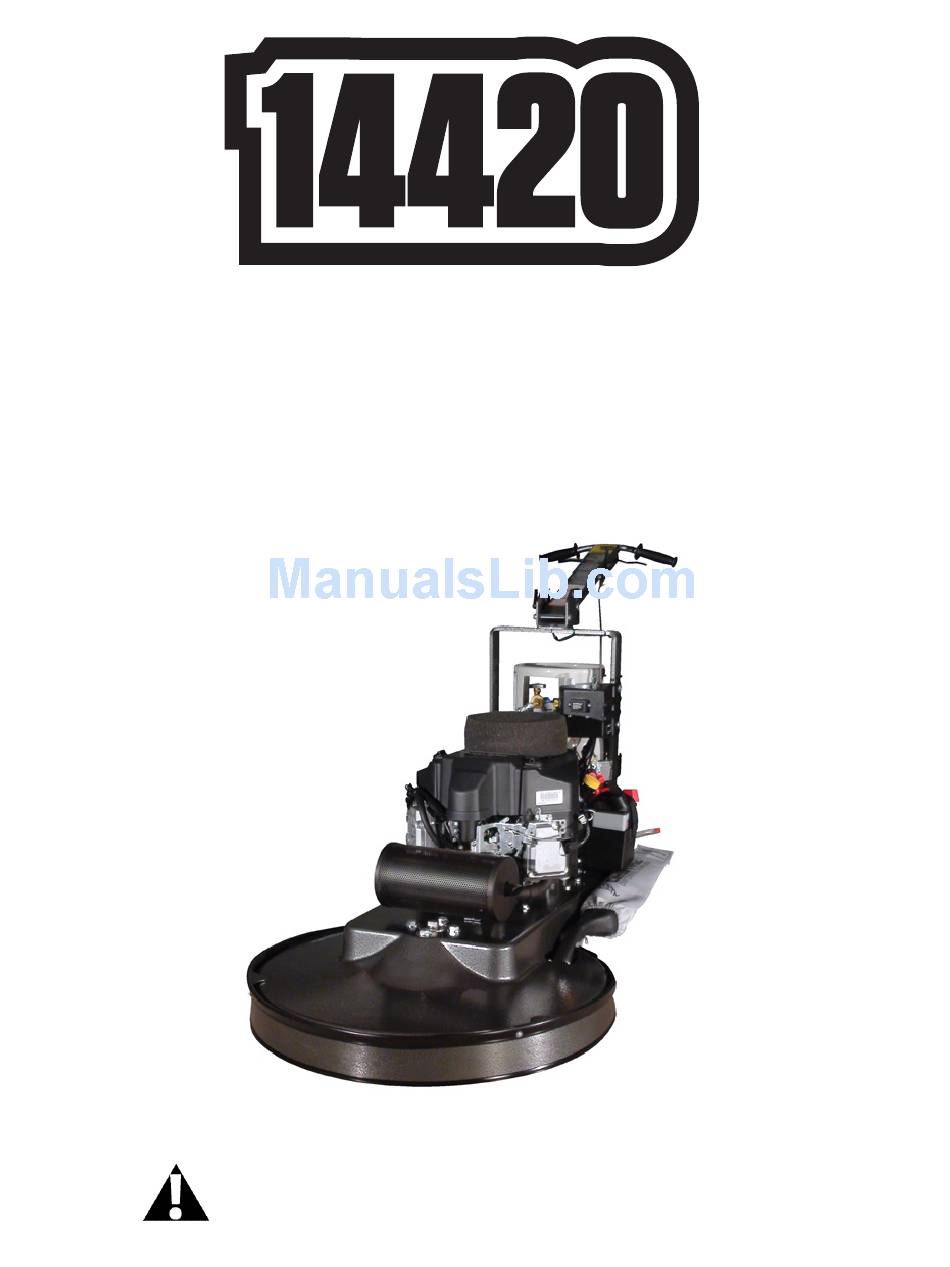

- Page 1 PROPANE BURNISHER INSTRUCTION MANUAL Read Manual Before Operating Machine 402573 Rev B...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ................................2 Instructions for Use ............................... 3 Specifications ................................4 Safety ....................................5 General Guidelines For Safe Operation ........................ 5 Specific Guidelines For Safe Operation ......................... 6 Refueling and Storage of Fuel Cylinders ....................... 7 Operator Responsibility ............................ -
Page 3: Instructions For Use
Each operator must be trained in the operation of this ma- chine before being allowed to use it. If this manual is lost or damaged, contact National Flooring Equipment (NFE) at +1 (800) 245-0267 to request a replacement manual. -
Page 4: Specifications
Width: 31.5” (80 cm) Length: 61.5” (156.2 cm) Height: 41” (104 cm) Weight (Without Tank): 234 lb (106 kg) - includes clutch and dust collection MANUFACTURER INFORMATION National Flooring Equipment (NFE) 9250 Xylon Avenue N Minneapolis, MN 55445 (800) 245-0267 www.nationalequipment.com... -
Page 5: Safety
Safety GENERAL GUIDELINES FOR SAFE OPERATION READ AND SAVE ALL INSTRUCTIONS FOR FUTURE USE. Before use, ensure operators read and understand this manual, as well as the labeling on machine and its components. Extra copies of the manual are available by contacting NFE. •... -
Page 6: Specific Guidelines For Safe Operation
Safety • DO NOT OPERATE ON STEPS. • PERIODICALLY INSPECT BATTERY. Only the manufacturer or an authorized servicing agent should replace the battery. Do not open or tamper with battery. Doing so voids all warranties and could cause injury due to electrical shock. SPECIFIC GUIDELINES FOR SAFE OPERATION Anyone operating the machine must read the following carefully in order to be informed of potentially dangerous operating conditions. -
Page 7: Refueling And Storage Of Fuel Cylinders
Safety machine is in operation, and for a long time after the machine is shut off, to cause severe burns. • CHECK AND REPLACE THE FILTER FOLLOWING THE RECOMMENDED MAINTENANCE SCHEDULE. A dirty engine filter can cause overheating. • CHECK OIL BEFORE EACH USE, AND FILL OR CHANGE AS NEEDED. Overheating can be caused by insufficient or low oil. •... -
Page 8: Operator Responsibility
Safety OPERATOR RESPONSIBILITY The operator is responsible for performing the recommended daily maintenance and checkups of the machine to keep it in good, working condi- tion. The operator must inform the service mechanic or supervisor when recommended maintenance procedures are required as described in the maintenance section of this manual. -
Page 9: Machine Preparation
Machine Preparation UNPACKING AND RE-PACKING THE MACHINE The machine is boxed on a wooden pallet when shipped. To unpack the machine: Cut and remove bands holding the box to the pallet. Remove staples attaching the box to the platform at the bottom edge of the box. With two people, one at either end of the box, lift box straight up and off machine. -
Page 10: Lp Cylinder
Machine Preparation FILLING THE LP CYLINDER Pressure Liquid Level Relief Valve Sight Gauge This machine uses the 20 lb (9.1 kg) capacity cylinder, which meets the D.O.T. 4E240 standards. These cylinders are also listed by UL. In addition, the steel cylinder meets European TPED specifications and is CE compliant. -
Page 11: Fuses
Machine Preparation FUSES The machine’s electrical circuit is protected by a fuse, which stops the flow of current in the event of a circuit overload. Once a fuse blows, it must be replaced. If the overload that caused the fuse to fail is still present, the new fuse will fail and the problem must be corrected. -
Page 12: Machine Operation
Machine Operation MACHINE COMPONENTS KEY SWITCH This machine features a key switch ignition (Figure 5): • START: Turn the key all the way clockwise to engage the engine starter motor. Once the engine starts, release the key. Always start the machine with the engine throttle in the idle or slow position. -
Page 13: Pre-Operation Checklist
Machine Operation CLUTCH LEVER The clutch lever (Figure 8), when pulled, will engage the electric clutch. On models that have an electric clutch, the pad will not turn until the switch is engaged. Only one lever requires engagement at one time, allowing the user to alternate hands during operation. TACHOMETER / HOUR METER The hour meter/tachometer (Figure 9) records the number of hours the machine has been powered ON. -
Page 14: Burnishing
Machine Operation BURNISHING It is recommended to start burnishing on the right side of the aisle. Turn and come back down the aisle in the opposite direction, overlapping the previous path slightly. Continue this pattern until the floor area to be burnished has been covered with the last pass being on the right side of the machine. -
Page 15: Maintenance
Maintenance CHECK OIL LEVELS Push machine to level surface. Turn off LP cylinder and remove it. Clean area around oil gauge before removing it. Remove oil gauge and wipe down with a clean cloth. The machine should be in an upright, level position. If necessary, place a block under the back of the machine or apply weight to the front of the deck to maintain position. -
Page 16: Spark Plugs
Maintenance Stop the engine. Check the oil level. SPARK PLUGS Turn off the LP cylinder and remove it. Pull spark plug cap off of spark plug. Remove spark plug by turning counterclockwise; inspect it for damage or build-up. If the plug is oily or has carbon build-up on it, clean the plug using a high flash-point solvent and wire brush (or other suitable tool). -
Page 17: Engine Dust Filter
Maintenance ENGINE DUST FILTER The engine dust filter should be cleaned each hour and after each use by shaking out the dust and then rinsing with water and mild detergent. The filter can also be vacuumed with a wet-dry vacuum (Figure 16). Squeeze out excess water (do not wring). -
Page 18: Batteries
Maintenance end of the shaft on the top of the machine with a 3/4” wrench and turning the pad holder counterclockwise. (Models equipped with dust collection will require removing the pulley cover to gain access to the belt.) Use the 3/4” wrench to turn the end of the spindle shaft on top of the machine while removing the old belt from the spindle pulley. Finish removing the belt from the engine pulley, if necessary. -
Page 19: Scheduled Maintenance Chart
Scheduled Maintenance Chart Operation Interval Every 100 Every 200 Every 300 Every 400 Every 500 Daily First 8 Hrs. Every 50 Hrs. Hrs. Hrs. Hrs. Hrs. Hrs. Check & add engine oil Check for loose or lost fasteners Check for oil leakage ... -
Page 20: Troubleshooting
Troubleshooting Problem Cause Solution Engine is hard to start. Propane cylinder is not properly connected. Check connection and open service valve slowly. Battery is weak. Charge battery or replace. Oil level is too low. Check the oil level and add more if needed. Insufficient vacuum. - Page 21 Troubleshooting Problem Cause Solution Smell of burned rubber. Belt out of adjustment. Check the automatic tensioner. Machine vibrates. Loose fasteners. Check the engine, tensioner, spindle, and pad holder fasteners. Tighten any that may be loose. Pad is not centered on the pad holder. Re-center pad;...
-
Page 22: Wiring Schematic
Wiring Schematic... -
Page 23: Spare Parts
Spare Parts PART# DESCRIPTION 14420-MP047500 Pad Holder, 24” Complete Assembly 14420-MP124700 Bag, Vacuum 14420-MP8310 Velcro, Hook, Stud, 24”... -
Page 24: Warranty
Warranty National Flooring Equipment Inc. (referred to as “the Company”) warrants that each new unit manufactured by The Company, to be free from defects in material and workmanship in normal use and service for a period of twelve (12) months from date of shipment from the Company. For administrative ease, will honor warranty for a period of fifteen (15) months from date of shipment from the company. - Page 25 9250 Xylon Avenue N • Minneapolis, MN 55445 • U.S.A. Toll-free 800-245-0267 • Phone 763-315-5300 • Fax 800-648-7124 • Fax 763-535-8255 Web Site: www.nationalequipment.com • E-Mail: info@nationalequipment.com...
