CARVIN BX700 User Manual

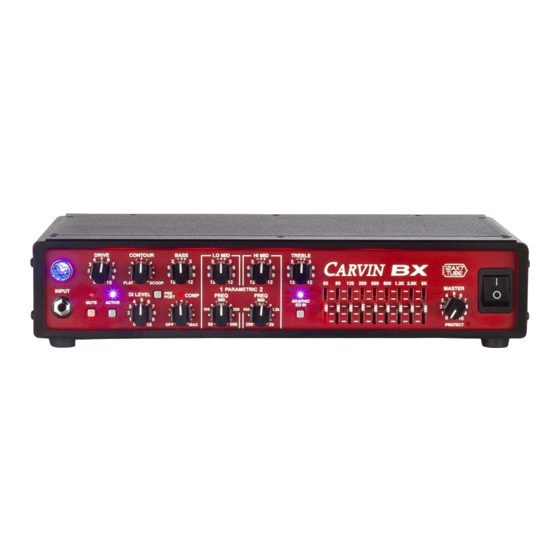

The BX Series Bass Amplifier Heads offer classic natural bass tone with unprecedented
tonal control and extended headroom. The BX700 delivers 300w at 8 ohms, 550w at 4ohms
and 700w at 2ohms, yet weighs under 6 pounds.
Four discrete Class A input stages produce the harmonic basis for the preamp right from
the input jack. It begins with a boutique flat response, then we add extensive tone control
allowing you to carve out your signature sound. Harmonic content increases as you turn up
the DRIVE control producing rich harmonics at maximum settings. The BX700 also features a
12AX7 preamp tube (bypassable) to add further warmth to your sound. The CLASS-D output
and lightweight switch-mode power supply use far less energy from the wall while producing
more power with less heat.
Light weight, solid design, bullet-proof construction and a list of indispensable features assure
the BX700 will be the heart of your rig for years to come.
• Discrete CLASS A input stages
• Preamp DRIVE and MASTER volume controls
• 2 mid sweep semi-parametric EQ, BASS and TREBLE
• Switchable 9-band Graphic EQ with front panel switch or by the optional FS22 footswitch
• Single knob COMPRESSOR
• Effect Loop
• Warm 12AX7 preamp tube with bypass switch
• Switchable MUTE by front panel switch or the optional FS22 footswitch
• DIRECT OUT balanced XLR with front panel LEVEL and PRE/POST switch
• Switchable Ground Lift for AC ground isolation
• TUNER output jack independent of MUTE switch
• High current SPEAKON and standard 1/4" speaker output jacks.
®
• CLASS-D amplifier runs cool while consuming less power
• Variable speed fan, silent running at low speed.
• Solid metal shaft controls with threaded metal bushings mounted to front panel
• LED panel lighting enhances control visibility in dark environments
• Locking AC cord receptacle also accepts standard cords
• Circuit boards are MIL SPEC, double sided, FR-4 glass epoxy
• Energy efficient worldwide power supply accepts 90-250VAC, 50-60Hz
• Compact and light weight under 6lbs.
GETTING STARTED
1. With POWER off, connect a speaker cabinet to one of the rear SPEAKER OUTPUTs.
2. Set the DRIVE and MASTER volume to "0" and set the ACTIVE INPUT switch for your type
of bass. If Equipped with a battery, select ACTIVE.
3. Set the four tone controls to their center "0" position and the CONTOUR to FLAT. This is
the "FLAT" setting for the amp. For now, turn off the graphic EQ.
4. Now, turn the amp ON. Turn up the volume on your bass guitar. Gradually increase the
MASTER control to the desired level. If no sound is heard, turn down the MASTER and check
the MUTE switch, speaker connections, and PROTECT LED.
5. Increasing the DRIVE control will add harmonic richness to your sound. Turning up the
DRIVE also increases volume. Re-adjust the MASTER volume after adjusting the DRIVE.
6. Adjust the tone controls to your liking. Keep in mind that turning up a tone control isn't always
the answer. Sometimes turning down one of the MID controls will get you the sound you want.
7. Need more volume? There is a limit to the amount of volume a speaker can produce and
driving a speaker beyond it's limit can damage it. Even though these are powerful amplifiers,
adding more speakers is the only way for substantially more output. Every time you double
your speakers you increase your acoustic output by a factor of four.
This guide will get you started. Have fun exploring the features and sounds of the BX700.
Take the time with your new amp to realize its full potential.
76-45507C 010917
BX700 BASS AMPLIFIER
RECEIVING INSPECTION—read before getting started
INSPECT YOUR UNIT FOR DAMAGE, which may have occurred during shipping. If damage
is found, please notify the shipping company and CARVIN immediately.
SAVE THE CARTON & ALL PACKING MATERIALS. In the event you have to re-ship your
unit, always use the original carton and packing material. This will provide the best possible
protection during shipment. CARVIN and the shipping company are not liable for any damage
caused by improper packing.
SAVE YOUR INVOICE. It will be required for warranty service if needed in the future.
SHIPMENT SHORTAGE. If you find items missing, they may have been shipped separately.
Please allow several days for the rest of your order to arrive before inquiring.
RECORD THE SERIAL NUMBER on the enclosed warranty card for your records. Keep your
portion of the card and return the portion with your name and comments to us.
SPECIFICATIONS:
Output Power
8 ohms:
4 ohms:
2 ohms:
Input Impedance:
Tone Controls:
Drive Control:
AC Requirements:
Power Requirements:
Dimensions
Weight :
Warranty:
Optional Accessories:
300w
550w
700w (2 ohm switch engaged)
>200K
CONTOUR
TREBLE: 10K
BASS: 50Hz
MIDs: 2 semi-parametric sweep: 50Hz-500Hz, 200Hz-2kHz
9-band Graphic EQ
Varies input gain and harmonic content
90 to 250VAC 50/60 Hz
150VA
14.0"W x 9"D x 3.15"H (356 x 229 x 80mm)
5.9 lbs. net (2.68 kgs)
One year parts and labor
FS22 footswitch
BX700RP rackmount kit
CB500 padded nylon carry bag
16262 WEST BERNARDO DR. SAN DIEGO, CA 92127
800-854-2235 CARVINAUDIO.COM

USER MANUAL

MADE IN
USA
