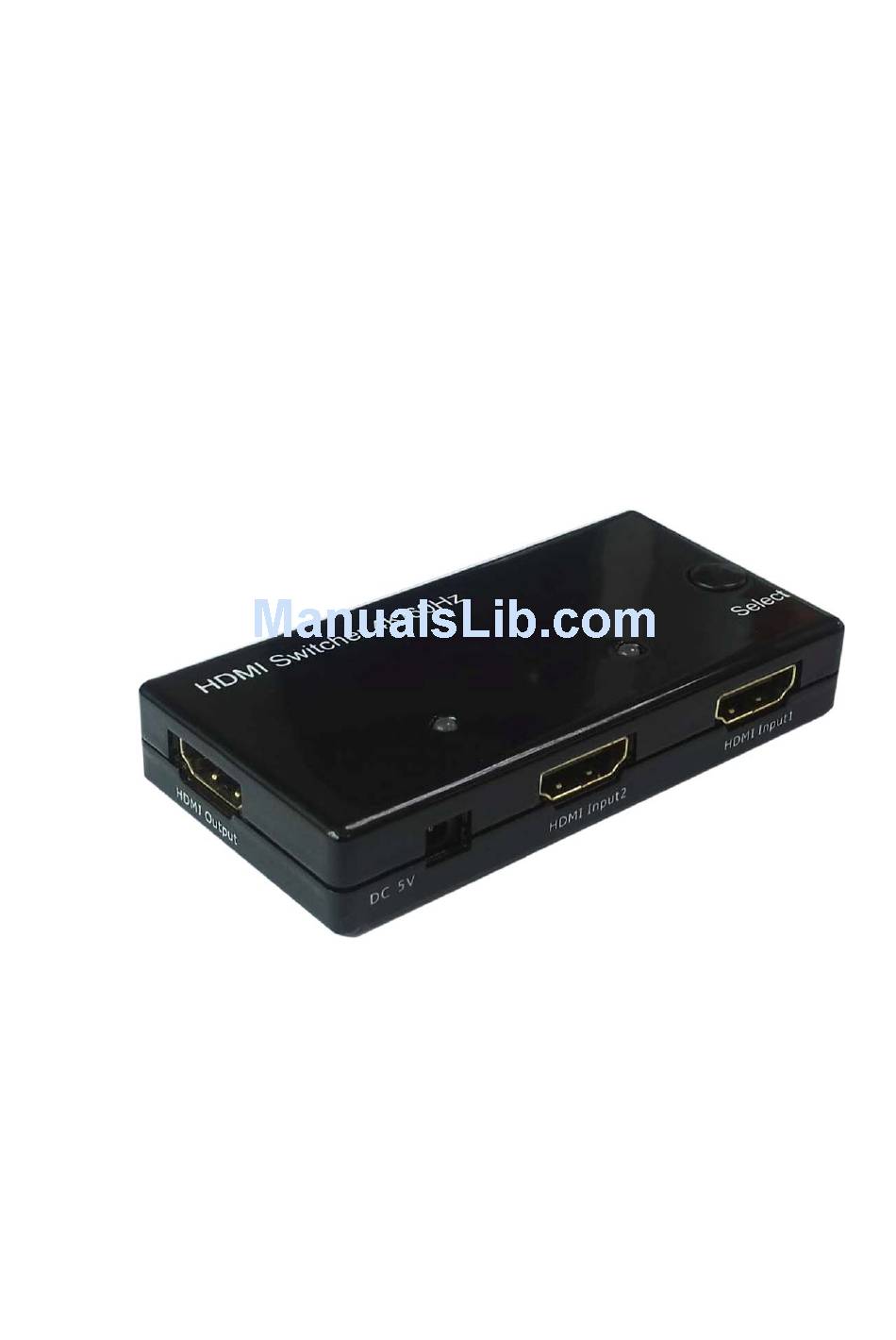

- Page 1 HDMI Switcher 2x1 with 600MHz User Manual...
- Page 2 Contents 1.0 INTRODUCTION --------------------------------------- 1 2.0 FEATURES --------------------------------------------- 1 3.0 SPECIFICATIONS -------------------------------------- 2 4.0 PACKAGE CONTENTS --------------------------------- 2 5.0 CONNECTION ------------------------------------------ 2 6.0 OPERATION ------------------------------------------- 3 7.0 CONNECTION DIAGRAM ------------------------------ 3...
- Page 3 HDMI Switcher 2x1 with 600MHz DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. INTRODUCTION This is a high-performance HDMI 2x1 Switcher which not only has the key-press-switching function, but also has intelligent function.
-
Page 4: Specifications
SPECIFICATIONS Signal Inputs/Output Input Video HDMIX2 Maximum Single Link Range Full 3D and 4kx2k@60HZ Output Video HDMI Operating Frequency Vertical Frequency Range 24/30/50/60Hz Video Amplifier Bandwidth 6Gbps/600MHz Resolutions(HDTV) Interlaced(50&60Hz) 480i,576i,1080i Progressive(50&60Hz) 480p,576p,720p,1080p,4kX2k@30HZ , 4kX2k@60HZ, Mechanical Warranty Limited Warranty 1 Year Parts and Labor Environmental 0 ℃... -
Page 5: Operation Notes
OPERATION NOTES 1) Once the source device is turned on or plugged in (should stay power-on mode), the switcher will automatically select this source. 2) Once the source device is turned off or plugged out, the switcher will select the next power-on source depending on the sequence automatically.
