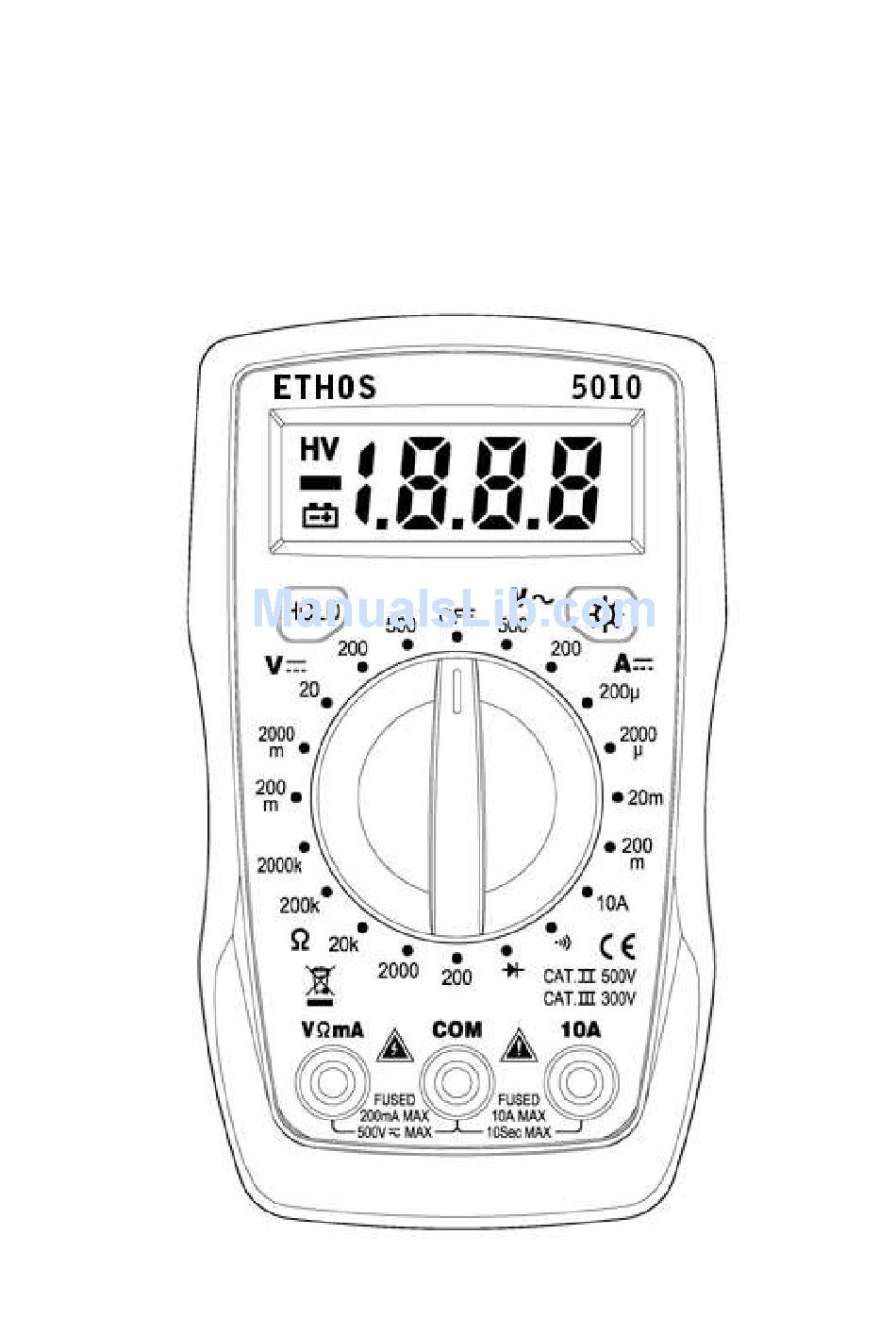

- Page 1 ETHOS 5010 Digital Multimeter OPERATION MANUAL...
- Page 2 1. SAFETY INFORMATION SAFETY SYMBOLS Warning! Dangerous Voltage (Risk of electric shock). Caution! Refer to the user’s manual before using this Meter. Double Insulation (Protection Class Ⅱ). Alternating Current (AC). Direct Current (DC). Either DC or AC. Ground (maximum permitted voltage between terminal and ground). The symbol indicating separate collection for electrical and electronic equipment.
- Page 3 2. SPECIFICATIONS 2.1 GENERAL SPECIFICATIONS Display: LCD with a max. reading of 1999. Range control: Manual range control. Polarity: Automatic negative polarity indication. Zero adjustment: Automatic. Over-range indication: The “1” or “-1” display. Low-battery indication: Display " " sign. . CAT Ⅲ 300V Safety standards: EMC/LVD.
- Page 4 Frequency: 40～500Hz Overload protection: 500V DC or AC rms Impedance: 450kΩ 2.2.3 DC Current Range Accuracy Resolution 200µA 0.1µA 2000µA ± ( 1.5%+2 ) 1µA 20mA 10µA 200mA ± ( 2.0%+2 ) 100µA ± ( 2.0%+3 ) 10mA Overload protection: F0.5A/500V, F10A/500V fuse Note: 10A up to 10 seconds 2.2.4 Resistance Range...
- Page 5 will be indicated along with the DC voltage value. Note: a) If the voltage range is not known beforehand, set the selector switch to high range and work down. b) When “1” or “-1” is display, over-range is being indicated and the selector switch must be set to a higher range.
- Page 6 2) Set the selector switch to desired “Ω” position. 3) Connect tip of the test leads to the points where the value of the resistance is needed. 4) Read the result from the LCD panel. Note: a) If the resistance value being measured exceeds the maximum value of the range selected, an over-range indication will be displayed (“1”), select a higher range.
- Page 7 5) Periodically wipe the case with a dry cloth and detergent. Do not use abrasives or solvents on the meter. Distributed by MTi Victoria Road, Avonmouth, Bristol, BS11 9DB Tel: 0117 938 6400 Fax: 0117 923 5374 Email: enquiries.ethos@adivision.co.uk Web: www.ethos-instruments.co.uk...
