Summary of Contents for Ethos 5020

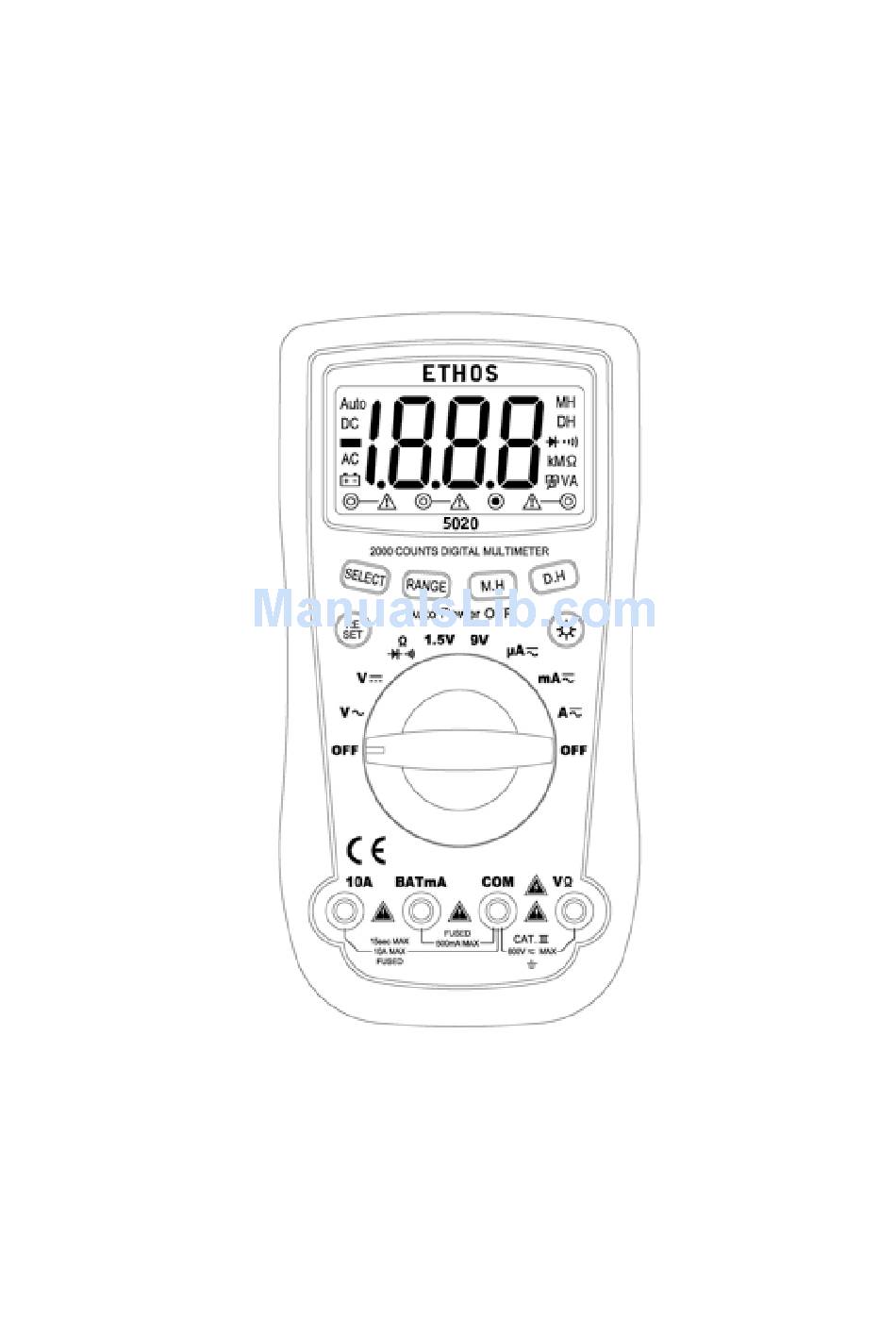

- Page 1 ETHOS 5020 Auto Ranging Digital Multimeter...
- Page 2 1. SAFETY INFORMATION SAFETY SYMBOLS Warning! Dangerous Voltage (Risk of electric shock). Caution! Refer to the user’s manual before using this Meter. Double Insulation (Protection Class Ⅱ). Alternating Current (AC). Direct Current (DC). Either DC or AC. Ground (maximum permitted voltage between terminal and ground). The symbol indicating separate collection for electrical and electronic equipment.
- Page 3 linearly to 50% relative humidity at 40℃. Pollution Degree 2. 2. SPECIFICATIONS 2.1 GENERAL SPECIFICATIONS Display: LCD with a max. reading of 1999. Display sign of the test lead connect to socket. Range control: Auto range & Manual range control Polarity: Automatic negative polarity indication.
- Page 4 Impedance: 10MΩ，More than 100MΩ on 200mV range 2.2.2 AC Voltage Range Accuracy Resolution ± ( 0.8%+3 ) 10mV 200V 100mV 600V ± ( 1.2%+3 ) Average sensing, calibrated to rms of sine wave Frequency: 40～500Hz Overload protection: 600V DC or AC rms Impedance: 10MΩ...
- Page 5 Overload protection: 250V DC or AC rms 2.2.6 Diode and Audible continuity test Range Description Test condition Display read Forward DC current approximately approx. 1mA forward voltage Reversed DC voltage of diode approx. 1.5V Built-in buzzer Open circuit voltage sounds approx.
- Page 6 3) Press “SELECT” key to choose “DC” or “AC” measurement. 4) Remove power from the circuit under test and open the normal circuit path where the measurement is to be taken. Connect the meter in series with the circuit. 5) Read the result from the LCD panel. 3.4 Resistance Measurement 1) Connect the black test lead to "COM"...
- Page 7 display, press it again to exit. 3.9 Auto/Manual range The auto range mode is a convenient function, but it might be faster to manually set the range when you measure values that you know to be within a certain range. To select manual range, repeatedly press “RANGE”...
- Page 8 5) Periodically wipe the case with a dry cloth and detergent. Do not use abrasives or solvents on the meter. Distributed by MTi Victoria Road, Avonmouth, Bristol, BS11 9DB Tel: 0117 938 6400 Fax: 0117 923 5374 Email: enquiries.ethos@adivision.co.uk Web: www.ethos-instruments.co.uk...
