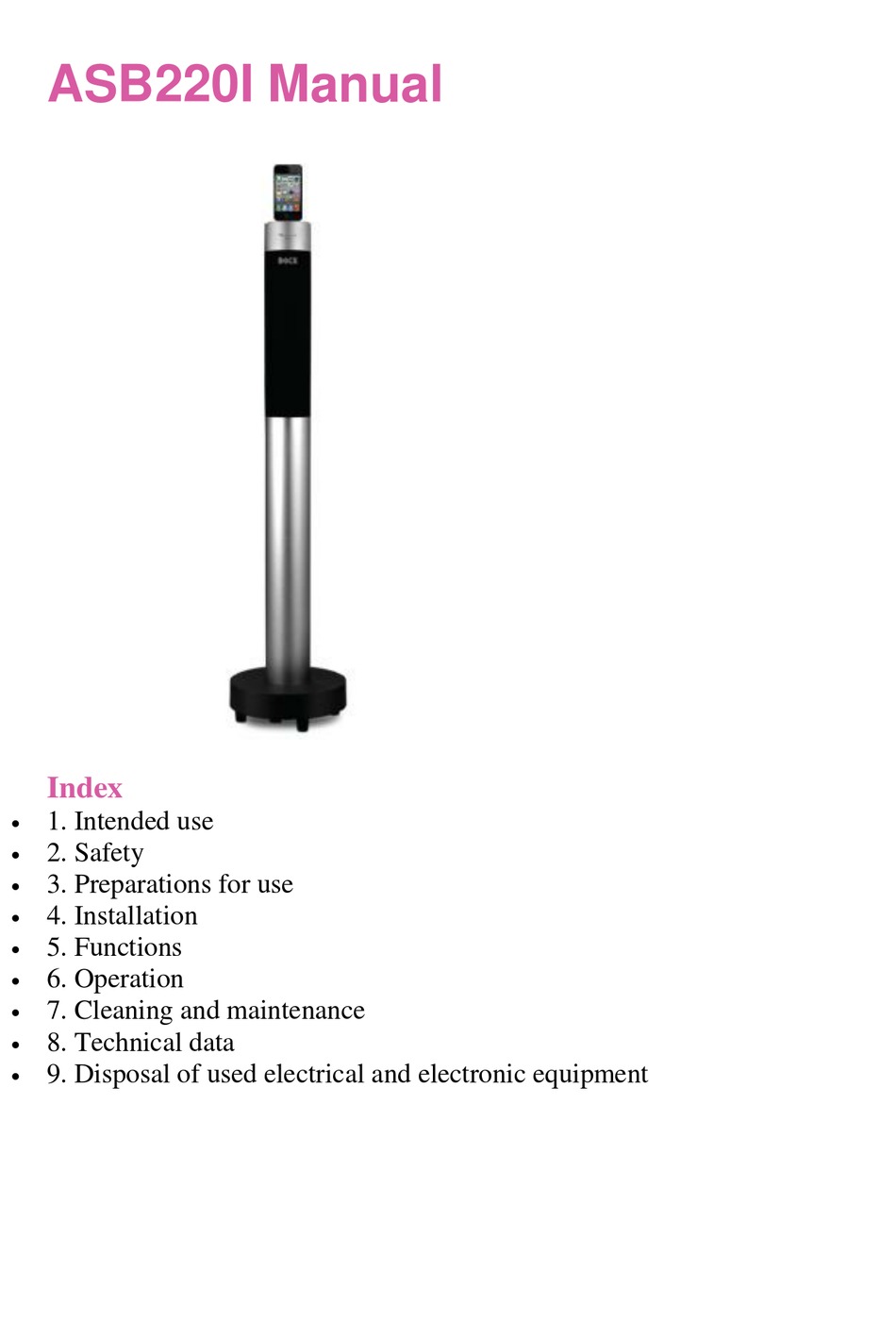

  • Page 1 ASB220I Manual Index  1. Intended use  2. Safety  3. Preparations for use  4. Installation  5. Functions  6. Operation  7. Cleaning and maintenance  8. Technical data  9. Disposal of used electrical and electronic equipment...

  • Page 2: Intended Use

    Intended use The iPod Music System functions as a docking station to play music from an iPod/ iPhone/ iPad. The appliance also plays music from an external device and from radio. Read the manual carefully before the first use. Safety Labels in this manual WARNING A warning means that injury or death is possible if the instructions are not obeyed.

  • Page 3: Safety

    General safety instructions WARNING Do not put force on the appliance. The appliance can fall and can cause serious injury. CAUTION Do not spill any liquid on the appliance. WARNING Do not insert any objects in the ventilation holes. CAUTION Do not block the ventilation holes. This appliance is double insulated;...

  • Page 4: Preparations For Use

    Preparations for use Unpacking  Unpack the appliance carefully. Check the package contents as described below. If any item is  missing, please contact your reseller. We recommend that you retain the original carton and packing materials in case it ever becomes necessary to return your product for service. This is the only way to safely protect the product against damage in transit.

  • Page 5: Package Contents

    Package contents The following items are included in the received package: ASB220I 1 Remote control 1 Quick start guide 1 RCA cable 1 Mains cable 1 Button cell (CR2025) NOTE: the button cell battery has already been inserted in your remote control If any item is missing, please contact your reseller.

  • Page 6: Installation

    Installation  Put the appliance on a horizontal flat surface.  Connect the random equipment to the appliance. Read the paragraph "Connecting random equipment".  Connect the appliance to the mains.  Read the paragraph "Remote control". CAUTION Do not put the appliance near a heat source. Do not expose the appliance to direct sunlight.
  • Page 7 Connecting random equipment AUX jack Aerial connection (FM radio)

  • Page 8: Connecting To The Mains

    Connecting to the mains Connect the female connector on the mains cable to the AC MAINS  connection.  Connect the mains plug to a wall socket.
  • Page 9 Change the battery Push the battery forward through the hole at the rear of the remote control. Use a neelde for instance. Slide the battery in/ out of the batterycompartment. Please note: Insert 1 lithium battery, type CR2025 3V battery When inserting the battery observe the (+) and (-) polarity markings.

  • Page 10: Functions

    Functions Remote control 1. PLAY/ PAUSE/ PAIR button 2. VOLUME- button 3. PREVIOUS button 4. POWER/ MUTE button 5. SOURCE button 6. SOUND EFFECT button 7. VOLUME+ button 8. NEXT button 9. M/ CLOCK button General functions  Press the VOL - button (2) or the VOL + button (7) to set the volume level (range 1 to 31).
  • Page 11  Push the SOUND (6) Button to set the sound effect BASS1, 2 or 3. To mute or restore sound, press the MUTE button (4).   Press the SOURCE Button (5) to choose one of the following functions; DOCK (iPad/ iPhone/ iPod), AUX 1, AUX 2, Tuner or Bluetooth (pair).

  • Page 12: Operation

    All functions of the appliance are accessible using the remote control. All instructions refer to operation with the remote control, unless indicated otherwise. Turning the device on and off. Switch on (off) the ASB220I Remote control  Use the POWER (4) key for this.

  • Page 13: Setting The Clock

    Setting the clock Preparation The device has to be switched off. Setting the current time  Press and hold the CLOCK button (9). The hour digits start flashing. Set the hour  Press the SOURCE (5) Button or the SOUND (6) Button. Confirm hour ...
  • Page 14 Confirm minutes  To do this, press the CLOCK key (9). Docking and charging the iDevice  Push down the OPEN area at the rotating disk.  Place your iPad/ iPhone/ iPod...
  • Page 15 Audio playback Preparation Press the SOURCE button (5) (AUX 1, AUX 2, DOCK).   Select the desired source (DOCK).  Place your iPad/ iPhone/ iPod See for instructions section "Docking and charging the iDevice"  Usage  To start playback, press the PLAY/ PAUSE/ PAIR button (1) once. ...
  • Page 16  To start playback, press the PLAY/ PAUSE/ PAIR button (1) once. Operation with BLUETOOTH You can wirelessly connect the ASB220I to devices that have Bluetooth A2DP. We can not guarantee that all Bluetooth devices are compatible. Preparation ...
  • Page 17  Go to the Bluetooth Menu of your Bluetooth device.  Search Bluetooth devices and select "BLUEPORT" to establish connection  Enter "0000" when the player asks for the PIN code NOTE: your Bluetooth connection has a range of approximately 9 metres If you move outside the Bluetooth range, the connection will be automatically terminated.
  • Page 18 Using the radio Preparation Press the SOURCE button (5).   Select the desired source (TUNER). Program radio stations automatically  Keep key M/CLOCK (9) pressed for 2 seconds  All available stations are now programmed.  Press the PREVIOUS (3) Button or the NEXT (8) Button to select the desired station.

  • Page 19: Cleaning And Maintenance

    Cleaning and maintenance WARNING Before performing any cleaning or maintenance, switch off and unplug the appliance. Clean the outside of the appliance with a soft cloth. When the appliance is very dirty, dampen the cloth slightly with water and a neutral solution.

  • Page 20: Technical Data

    Technical data Voltage: 220-240VAC / 50-60 Hz Power consumption: 25W Standby power consumption: < 1W Max power: 25W x 2 + 50W Frequency response: 40Hz - 20kHz Impedance: 500 mV / 47kΩ Distortion: 1% (1kHz, 1W) Dimensions: Ø 288 x 1192 mm Remote control Dynamic range: 6m Battery size: Cr2025...

  • Page 21: Disposal Of Used Electrical And Electronic Equipment

    For more information and warranty conditions, please visit: www.akai.eu Do not dispose of batteries as household waste but take them to a...
