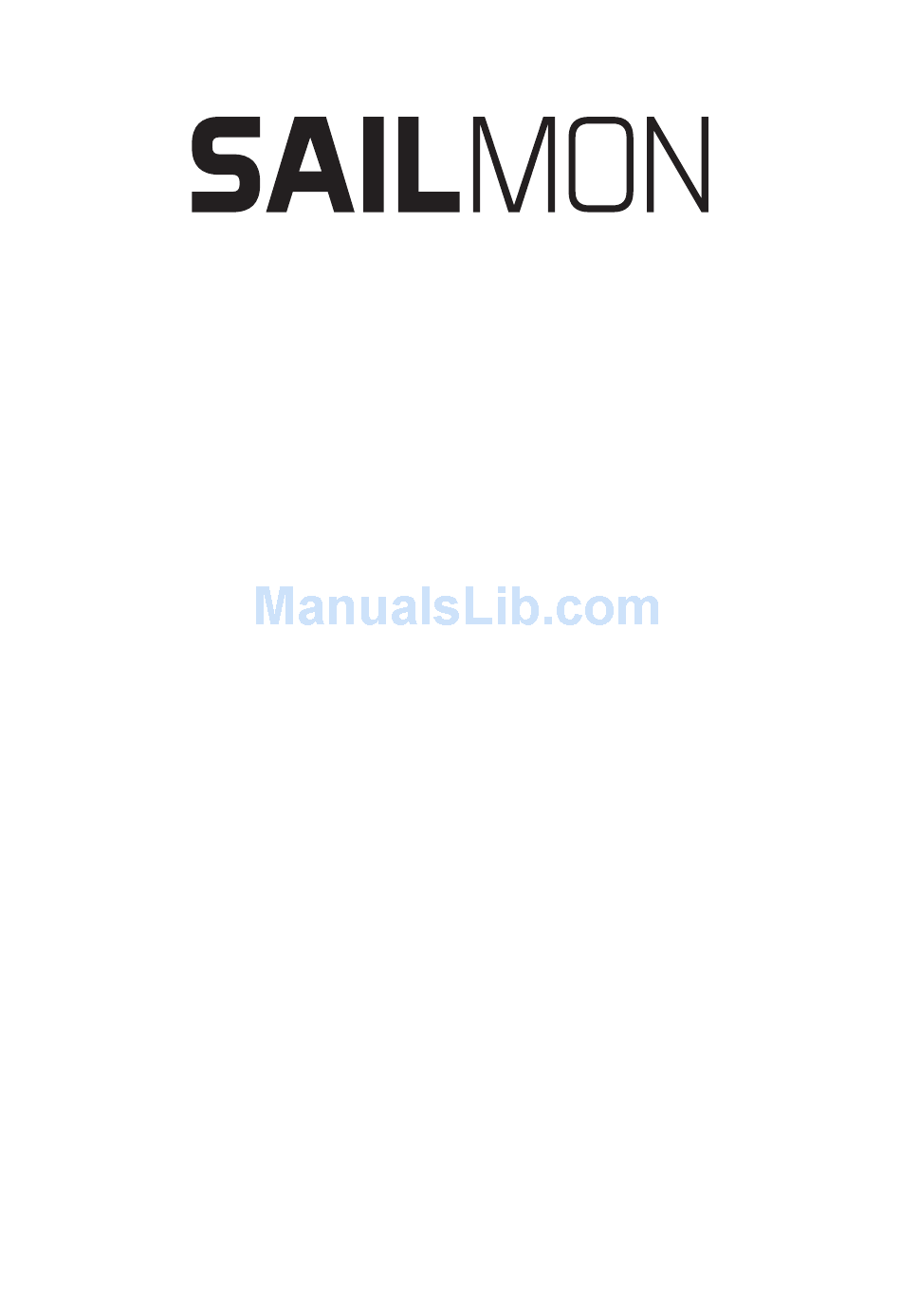

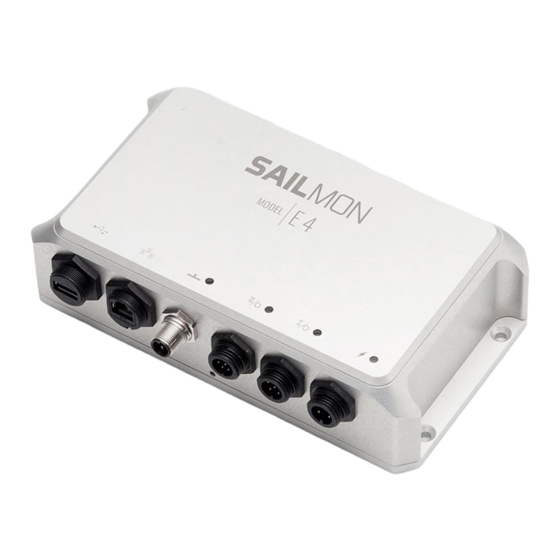

- Page 1 MODEL | E4 Installation guide version 1.0 November 2016 copyright SAILMON BV 2016 Model | E4 Installation guide 1.0 16-11-2016...
-
Page 2: Table Of Contents
About this Manual Disclaimer Calibration Electrical supply Getting Started Communication protocol System examples MODEL | E4 Tech specs MODEL | E4 installation Power on for the first time. FAQ. copyright SAILMON BV 2016 Model | E4 Installation guide 1.0 16-11-2016... -
Page 3: Before You Get Started
Used to raise attention to a comment Disclaimer It is the owner of the Sailmon product (s) sole responsibility to install and use the instruments in a responsible manner that will not cause accidents, personal injury or property damage.The user of this product is solely responsible for observing safe boating practices. -
Page 4: Electrical Supply
Large currents due to switching of electrical winches or other high power devices will cause under voltages for a short time. Model E4 will handle this short-term voltage drop if the voltage stays well above 6.5 Volts. A voltage below 6.5 Volts will result in immediate reset and reboot. -
Page 5: Getting Started
Getting Started It’s time to get to business! At Sailmon we have tried very hard to make installation as easy as possible. So let’s get started quickly. In this installation guide we assume you have already planned your installation, and already have installed your sensors. -
Page 6: System Examples
System examples Sailmon system example 1 using USB ad hoc, DHCP from model | E4 Sailmon system example 2 all Sailmon devices connected to ships LAN, external DHCP copyright SAILMON BV 2016 Model | E4 Installation guide 1.0 16-11-2016... -
Page 7: Model | E4 Tech Specs
TURNED ON DURING THE INSTALLATION IT MAY RESULT IN FIRE, ELECTRICAL SHOCK OR SERIOUS INJURY MAY OCCUR. Used to create a ad hoc network using a wifi stick Ethernet Hook up your E4 to any standard router, or boat network NMEA 2000 NMEA 2000 II/O... -
Page 8: Model | E4 Installation
MODEL | E4 installation Mounting 1. Place MODEL | E4 in a dry and ventilated location and secure it on its place with four screws. 2. Connect MODEL | E4 power supply by using the supplied cable. 3. Connect an ethernet cable to your network or plug in the Sailmon USB stick for a AD-hoc network 4. -
Page 9: Power On For The First Time
PC. 2. Power the Sailmon instruments 3. Connect your computer or smart device directly to the E4, this can be done using a ethernet cable or with a USB stick. 4. Open the apps to show data or use your system 5. -
Page 10: Faq
A. We have 128 channels available to send any data string over UDP you would like, please contact us for the user guide! Q. Anything you can’t do? A. You tell us and we’ll try to implement it! copyright SAILMON BV 2016 Model | E4 Installation guide 1.0 16-11-2016...
