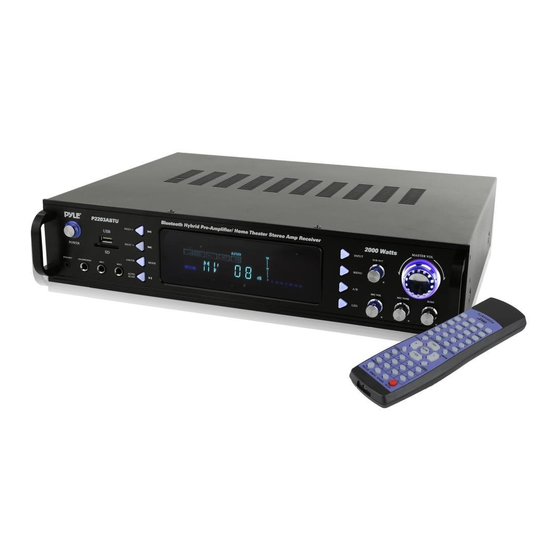

- Page 1 BLUETOOTH AMPLIFIER/RECEIVER USER MANUAL Model: P2203ABTU...
-
Page 2: Bluetooth Connectivity
Bass, Treble, Balance control BLUETOOTH CONNECTIVITY: Receives Wireless Signal for Audio Streaming Works with All of Your Favorite Devices (Smartphones, Tablets, Laptops, Computers, etc.) Bluetooth Version: 2.1 Bluetooth Network Name: 'Pyle Audio' Bluetooth Wireless Range: 20+ Ft. Bluetooth Network Password: – Not required... -
Page 3: Front Panel
FRONT PANEL (1) POWER SWITCH Press to switch the power unit ON or OFF (2) PREV This button is used to select the previous station in system (3 NEXT This button is used to select the next station in system (4) MENU CONTROL This is used to Increment end decrement level for the selected function of Mister Volume, Bass. -
Page 4: Rear Panel
REAR PANEL (1)TUNER ANT Connect for AM and FM antenna (2) AUDIO INPUT JACKS Connect the audio output jacks of DVD/CD to these jacks (3) RECLINE OUTPUT JACKS Connect the RECORD input jacks to these jacks. (4) PRE OUTPUT JACKS Connect the professional input jacks to these jacks (5) SUBWOOFER OUTPUT JACKS 1&2 (6) A B (Right) SPEAKER OUTPUT TERMINALS... -
Page 5: Remote Control
REMOTE CONTROL (1) AUTO Automatically search the signal source when power on (2) DIGITAL Tuning AM/FM number button (3/27) TREBLE-/TREBLE+ Master treble down and up (4/25) L/R Left/ Right Balance Control (5) MUTE Mute Selector (6/23) BASS- / BASS+ Master bass down and up (7) SPEAKER Speaker (A/B/A+B) selector (8) DSP... -
Page 6: Safety Precaution
SAFETY PRECAUTION Read all documentations carefully before operating the equipment. Retain this manual for future reference. Follow all instructions printed on unit for proper operation. Do not open cover (or back cover) to reduce the risk of electrics shock or fire.
