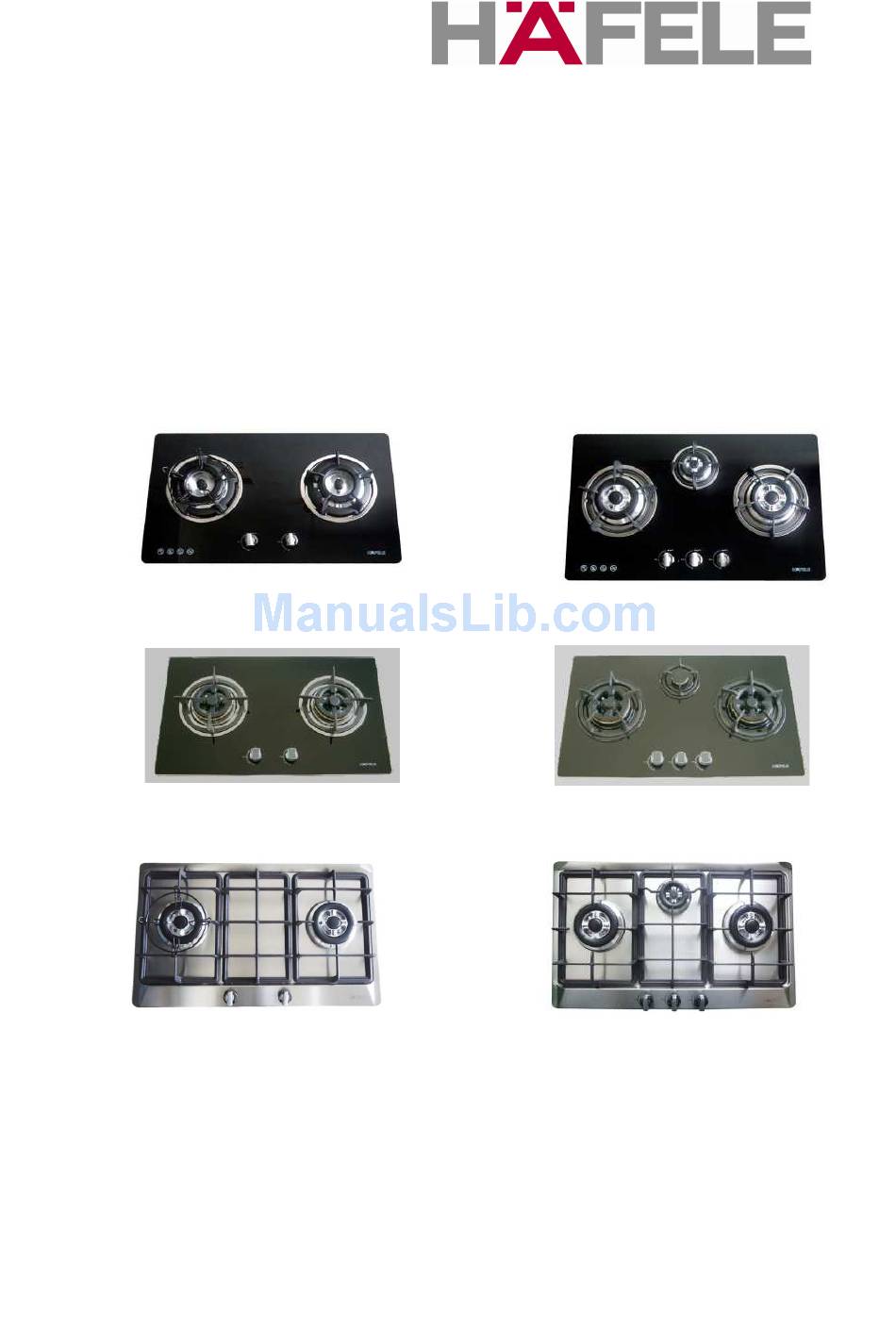

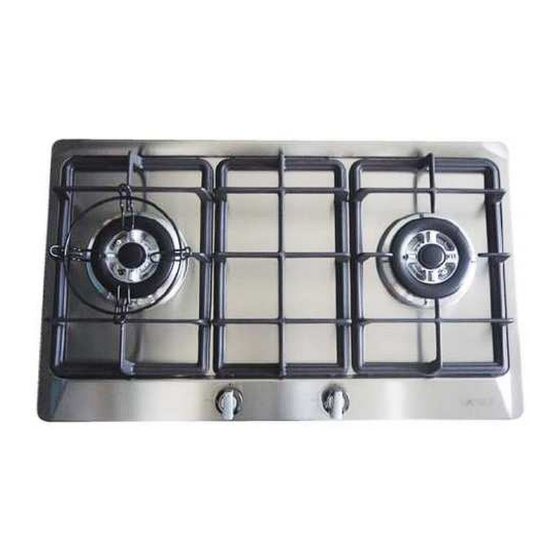

- Page 1 OPERATING INSTRUCTION Built in gas hob HH-782GG/ 534.01.535 HH-783GG/ 534.01.545 HH-782GGA/ 534.01.575 HH-783GGA/ 534.01.585 HH-752GS/ 534.01.504 HH-753GS/ 534.01.512 Hafele (Thailand) Limited. 57 Soi Sukhumvit 64, Sukhumvit Rd., Bangchak, Phrakanong, Bangkok 10260 Telephone: (02) 741-7171...
-
Page 2: Table Of Contents
OPERATING INSTRUCTION CONTENTS PAGE ● NAME OF PARTS………………3 ● SPECIFICATION………………..4 ● CAUTION……………………….4 ● INSTALLATION………………...5 ● OPERATION…………………….6 ● MAINITENANCE……………….7 ● SAFETY REGULATIONS………8 OPERATIONS 1. TO IGNITE BURNERS ● Open the gas valve ● Burner This is Double Ring Burner, having Max., Med. and Min. flame position, each flame position can be selected as per following procedures. -
Page 3: Name Of Parts
4. NOTICE ● Take care that juice does not overflow since it will spoil the burner. ● Don’t touch the parts of Burner or Pan Support or Casing since the surface of these parts will be very hot during operation. NAME OF PARTS TOP PLATE BURNER HEAD... -
Page 4: Specification
SPECIFICATION Two Burner Two Burner SS Three Burner Three Burner Product Glass Hob Glass Hob SS Hob Model HH-782GG/ HH-752GS/ HH-783GG/ HH-753GS/ 534.01.535 534.01.504 534.01.545 534.01.512 Ignition Battery Battery Battery Battery Overall 780×460mm 750×450mm 780×470mm 750×450mm Dimension Two Burner Three Burner... -
Page 5: Caution
CAUTION 1. Check to see if all the following items are included with your cooker: Model HH-782GG HH-752GS HH-783GG HH-753GS HH-782GGA HH-783GGA Ignition Knob Pan Support Burner Head Simmer Burner Head 2. Place Ignition knob into the Gas Valve Shaft and push it inwards firmly. -
Page 6: Operation
2. HOB INSTALLATION Check that the hob is in a good condition after having removed the outer packaging and internal wrappings from around the various loose parts. Never lave packaging materials (cardboard, bags, poly foam, etc.) within children’s reach since they could become potential sources of danger. GAS CONNECTION This is a LOW PRESSURE APPLIANCE and should only be used with a LOW PRESURE REGULATOR (2.8kPa). -
Page 7: Mainitenance
ELECTRICAL CONNECTION Electrical connection must be carried out in compliance with provisions and standards in force. Before proceeding with the electrical connection, check that: ------ The electricity rating of the system and current sockets suits the maximum power rating of the appliance. ------ The socket or system has an efficient earth connection in compliance with the standards in force. -
Page 8: Safety Regulations
2. Flame Adjustment MAINTENANCE AND CARE 1. Wipe Stainless Steel parts with a dry cloth and if it is difficult to Make them clean, you can use soapy water and dry cloth. 2. Wash those Pan Support in water. 3. Scrub those Burner Heads with wire Brush. SAFETY REGULATIONS 1.
