Connecting SimpliPhi Power PHI2.6™ Smart-Tech
Batteries: Terminal Specs and Hardware
CAUTION: DO NOT ATTEMPT TO LOOSEN THE LARGE BRASS NUT AT THE BASE OF THE TERMINALS.

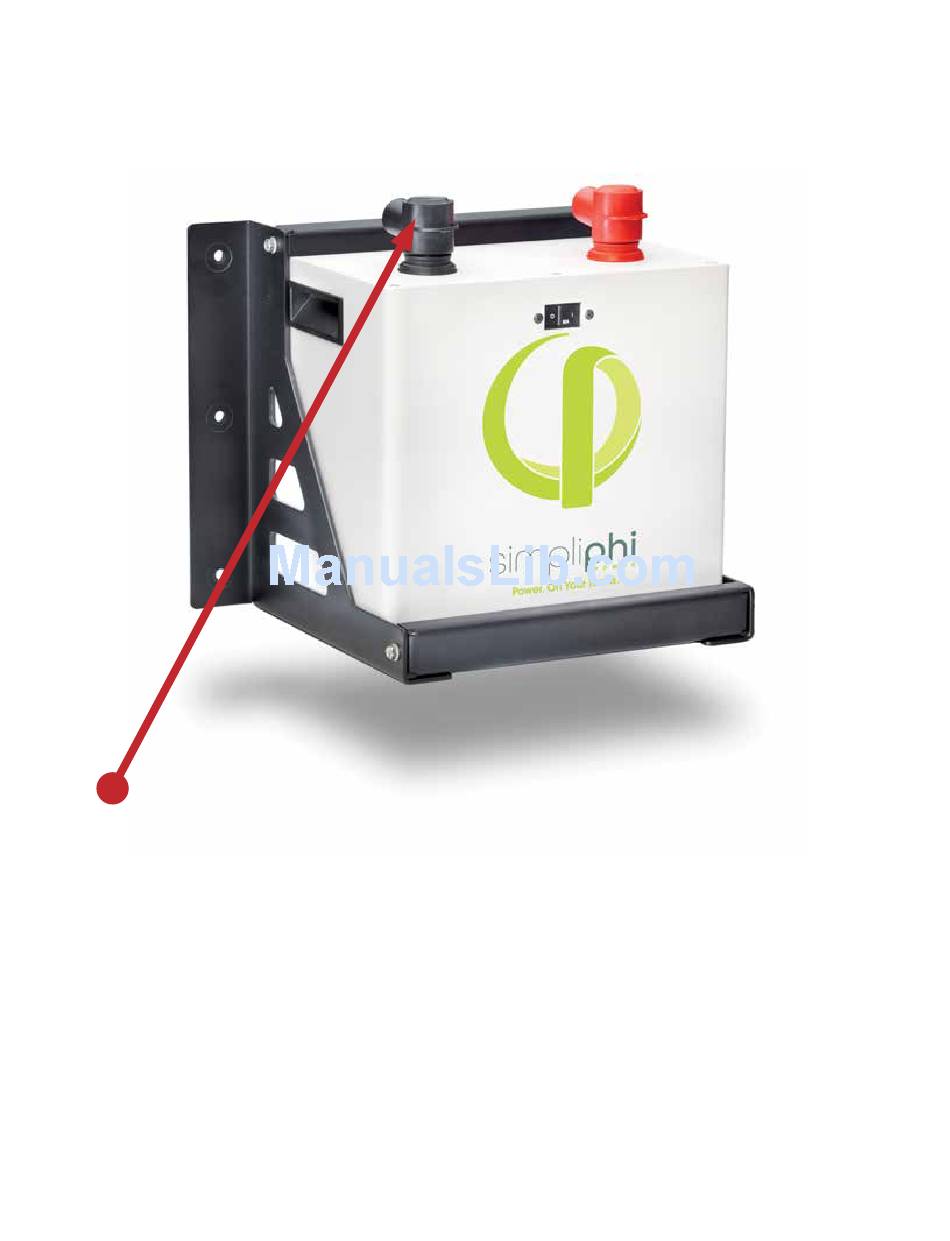

PHI2.6™ Smart-Tech Battery Connection Terminals
The PHI2.6™ Smart-Tech Batteries are equipped with two 3/8'' threaded studs with a lock washer and nut.
The right hand stud resides in a red colored high temperature molded insert. This connection is for the
positive lead. The left hand stud resides in a black colored high temperature insert. This connection is for
the negative lead. Do not reverse polarity. It will void the warranty. Use a volt meter to check polarity
before connecting terminals.
Water Resistant Cable Boots are also included and will be in place when your units arrive. The boots are to
be placed over the cable terminations and will stretch to form a water resistant seal around the base of the
molded inserts and terminal connections.
